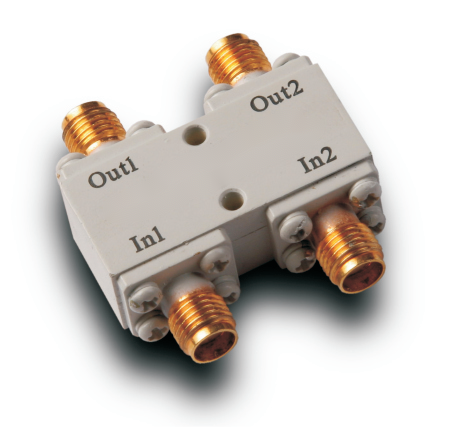

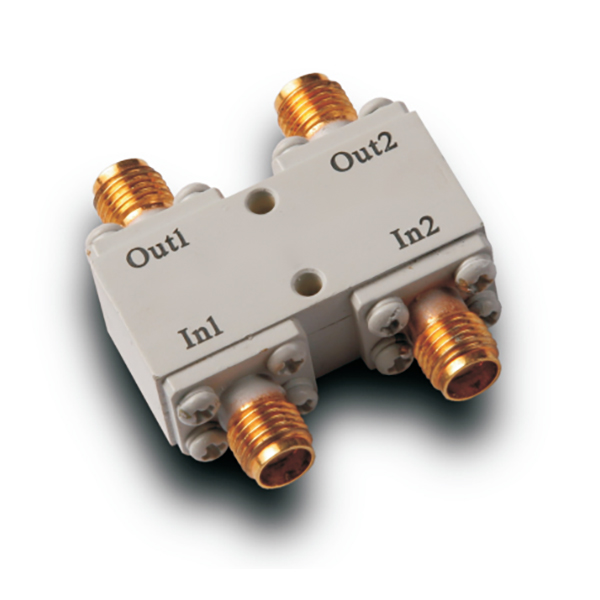

2.6-5.2GHz Broadband 90-Degree Hybrid Coupler
$0
Stripline structure
Low insertion loss
High isolation
Excellent phase balance
Low VSWR
High power handling capacity (50W)
SMA-K connectors
- Description
- Datasheet

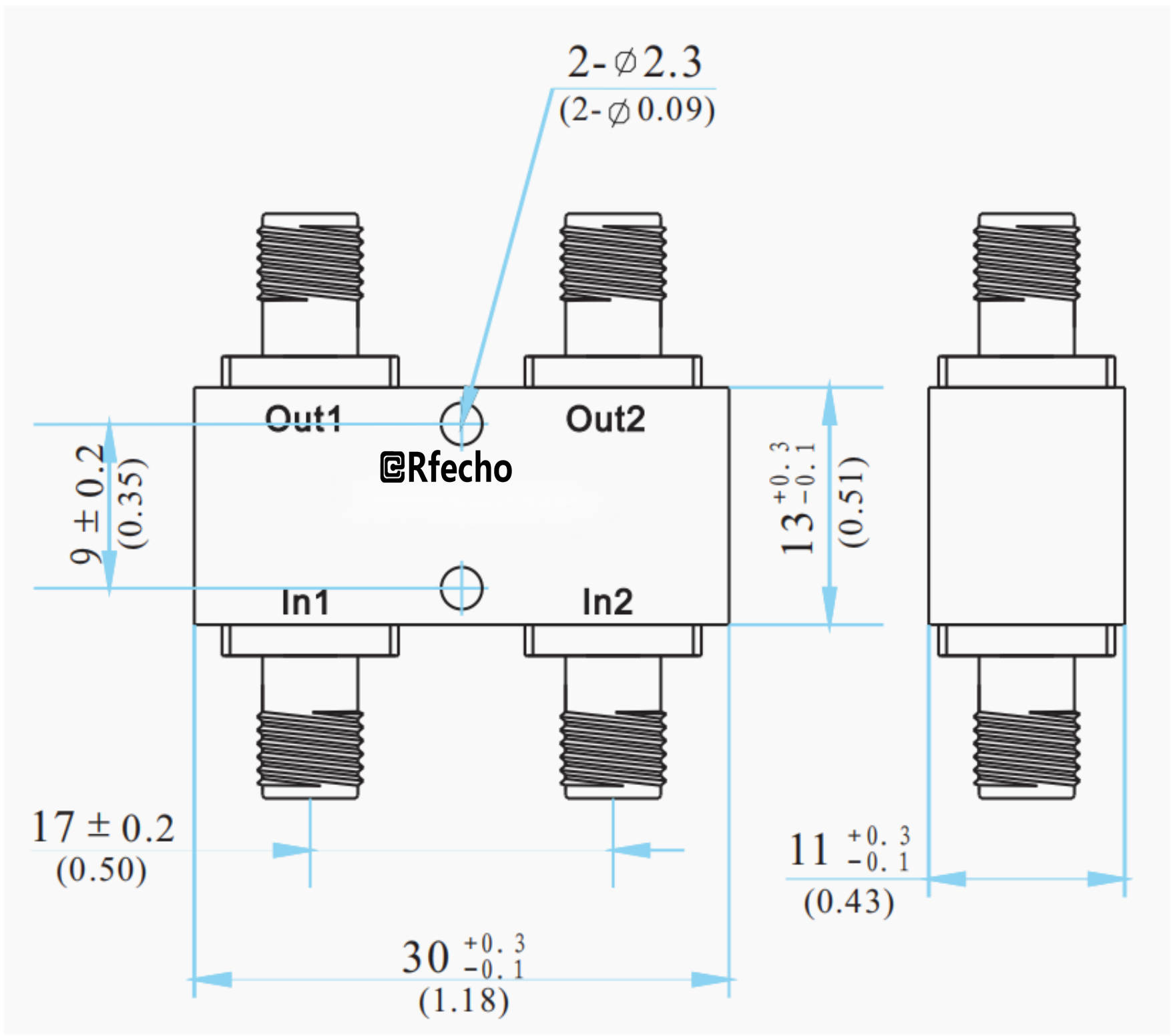

- Outline
- Reviews (0)
Description
The OPD-A2 series of 90-degree hybrid couplers adopts astripline structure, featuring low insertion loss, high isolation,excellent amplitude and phase accuracy, and high power handling capacity. The OBG-A2035 broadband 90-degreehybrid coupler, a key model in this series, delivers reliableperformance with a minimum isolation of 22dB, a maximumVSWR of 1.20, and excellent phase balance of ±2° within itsdesignated frequency range.With a high power handling capacity of 50W, the OBGA2035 is engineered to withstand rigorous operatingconditions. It supports a working temperature range of -55~+85°C and a storage temperature range of -55~+100°C,fully complying with the stringent test items and requirements outlined in GJB-1509-1992.
OBG-A2035 |
|
|
2.6-5.2GHz Broadband 90-Degree Hybrid Coupler |
|
Property |
Value |
|
Frequency Range |
2.6-5.2GHz |
|
Insertion Loss |
0.3dB |
|
Isolation |
22dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Amplitude Balance |
±0.5dB |
|
Phase Balance |
±2° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High isolation |
|
|
Excellent phase balance |
|
|
Low VSWR |
|
|
High power handling capacity (50W) |
|
|
SMA-K connectors |
|
Applications |
|
|
Broadcasting,Radar,Mobile Tech,Satellite |
|
