2-8GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 2-8GHz
Coupling: 20±1dB
SMA Connectors
Stripline Structure
Low Insertion Loss
High Directivity
High Power Handling (50W)
Internal Termination
- Description
- Datasheet

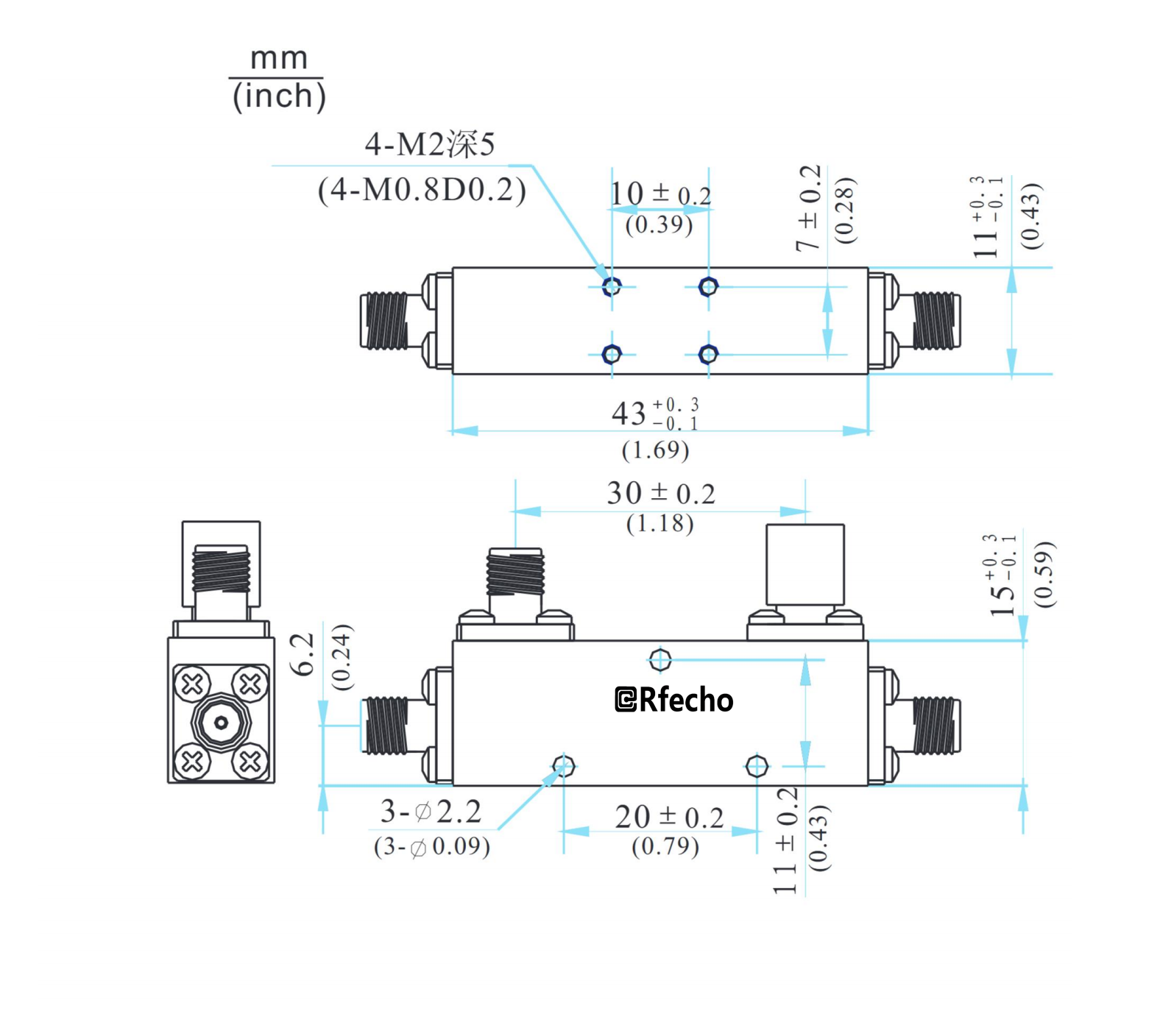

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Utilizing SMA connectors and a striplinestructure, they feature low insertion loss, high directivity,high power handling capacity, and built-in loads for ease ofuse.The OPD-A1203 broadband directional coupler is mainly used in radar, communications, satellite communications,navigation, testing and measurement fields for signal sampling, monitoring, and unequal power distribution. Variouscoupling values are available. This series consists of standardized products that can be customized according to userrequirements.

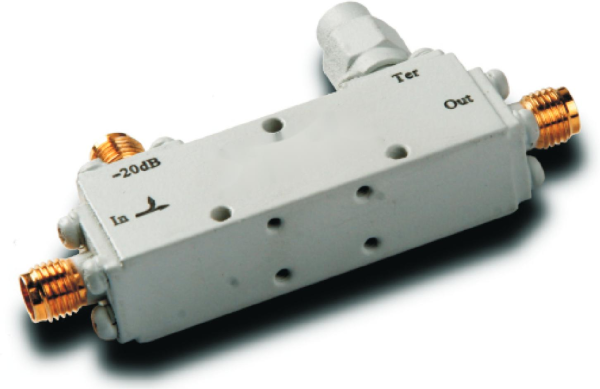

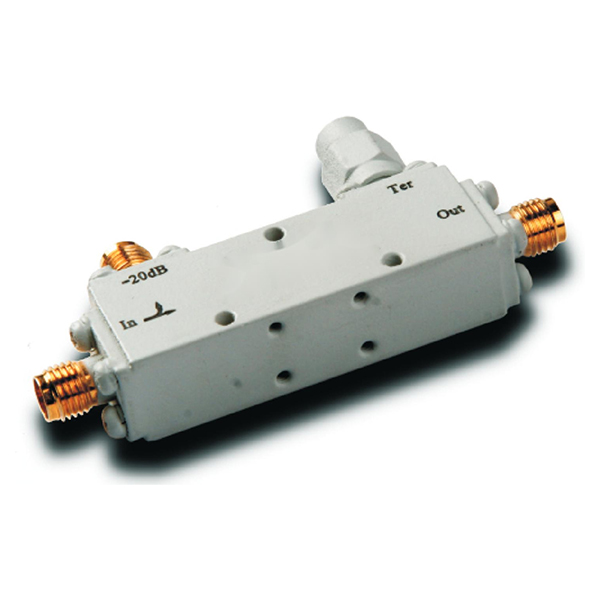

OCP-A1203-20 |
|
|
2-8GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
20±1dB |
|
Power Handling |
50W |
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Frequency Range: 2-8GHz |
|
|
Coupling: 20±1dB |
|
|
SMA Connectors |
|
|
Stripline Structure |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
High Power Handling (50W) |
|
|
Internal Termination |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
