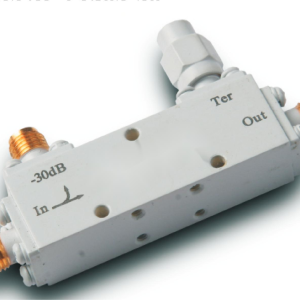

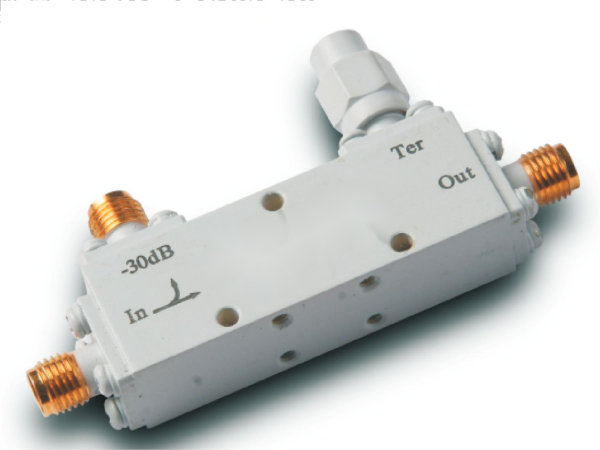

2-8GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Coverage: 0.5-18GHz
Connectors: SMA
Structure: Strip-line
Low insertion loss
High directivity
High power handling
Internal termination
- Description
- Datasheet

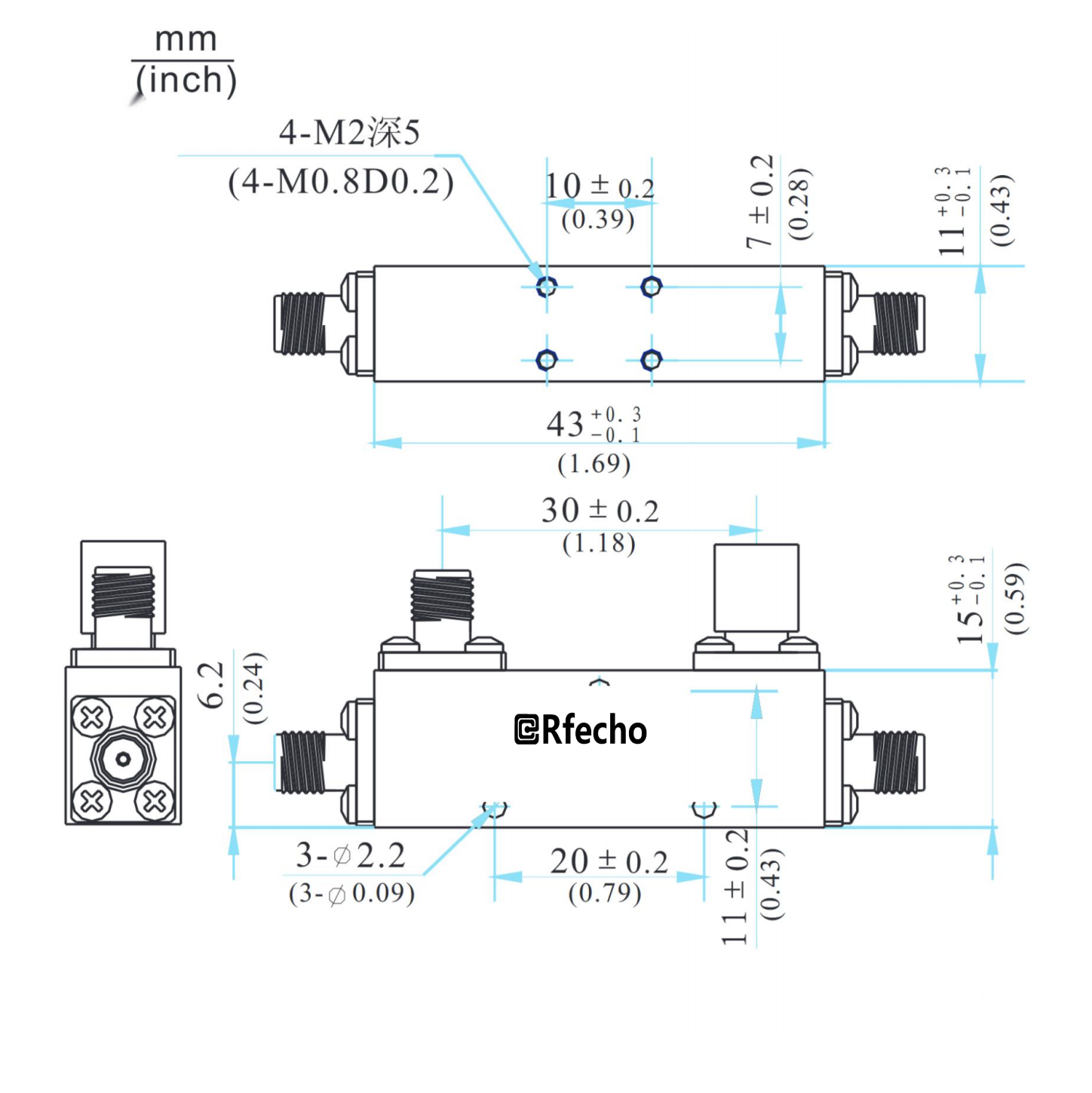

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency range. Using SMA connectors, the circuit adopts astrip-line structure, featuring low insertion loss, high directivity, high power handling, and built-in termination for conve-nient use. The OPD-A1203 broadband directional coupler ismainly used in radar, communications, satellite communications, navigation, testing and measurement fields, for signalsampling, monitoring, unequal power distribution and synthesis. Multiple coupling degrees are available.

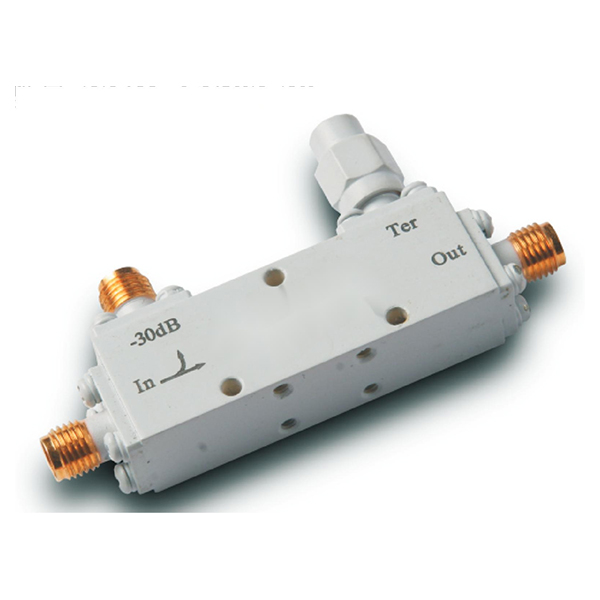

OCP-A1203-30 |
|
|
2-8GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
0.4dB |
|
Coupling |
30±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
|
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
Frequency Coverage: 0.5-18GHz |
|
|
Connectors: SMA |
|
|
Structure: Strip-line |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling |
|
|
Internal termination |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
