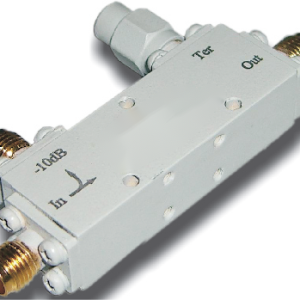

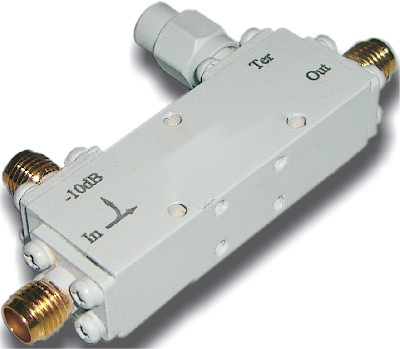

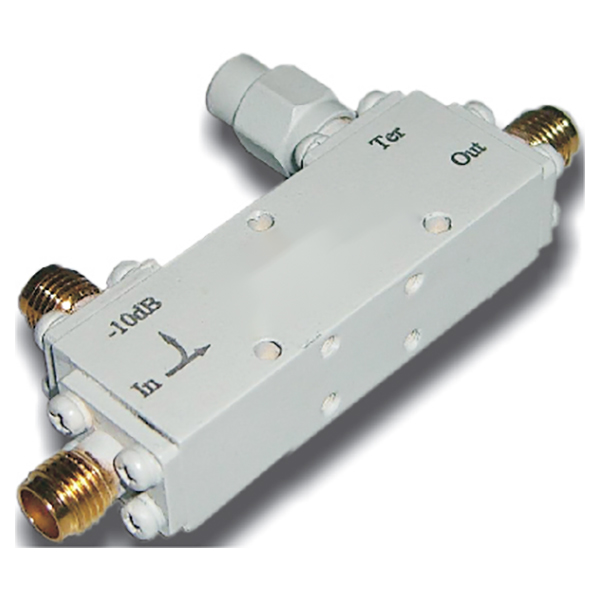

2-8GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 2-8GHz (Series covers 0.5-18GHz)
Low Insertion Loss
High Directivity
High Power Handling
Built-in Termination
SMA Connectors
Stripline Structure
- Description
- Datasheet

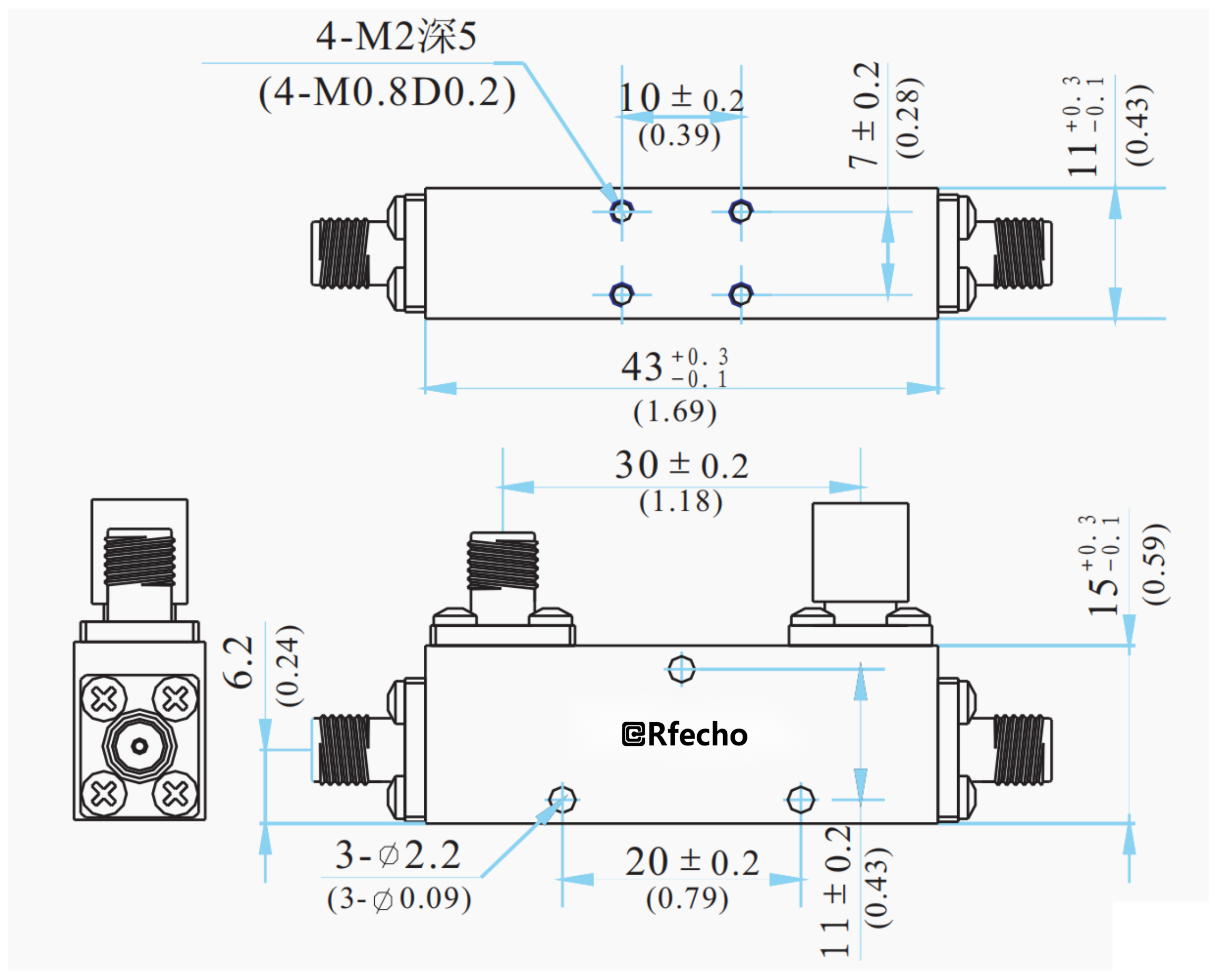

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Utilizing SMA connectors and a stripline circuit structure, they feature low insertion loss, high directivity,high power handling, and a built-in load for ease of use. TheOPD-A1203 broadband directional coupler is primarily usedin radar, communications, satellite communications, navigation, and test and measurement fields for signal sampling,monitoring, unequal power distribution, and synthesis. A variety of coupling values are available.
OCP-A1203-10 |
|
|
2-8GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
0.5dB |
|
Coupling |
10±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.2 |
|
Directivity |
20dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
Frequency Range: 2-8GHz (Series covers 0.5-18GHz) |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
High Power Handling |
|
|
Built-in Termination |
|
|
SMA Connectors |
|
|
Stripline Structure |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
