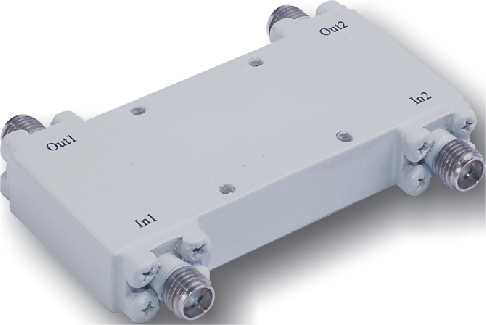

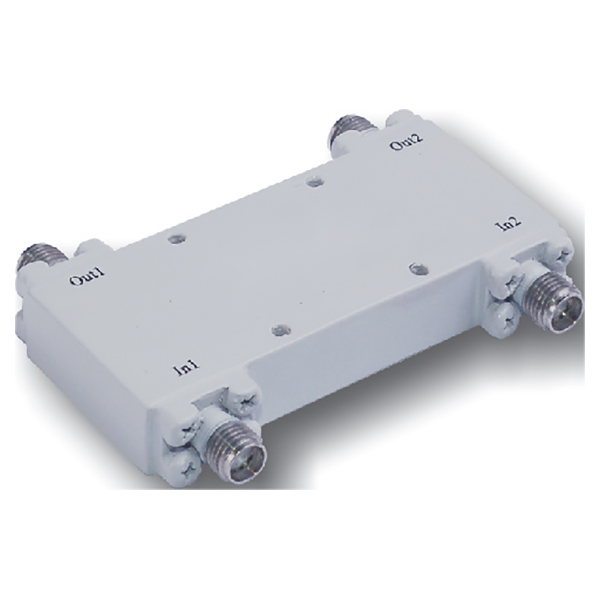

2-8GHz Broadband 90-Degree Hybrid Coupler

Description

The OPD-A2 series of 90-degree hybrid couplers adopts astripline structure, featuring low insertion loss, high isolation,excellent amplitude and phase accuracy, and high power handling capacity. The OBG-A2023 ultra-broadband 90degree hybrid coupler, a key model in this series, isdesigned with ultra-broadband performance, with amaximum insertion loss of 1.00dB and excellent amplitudebalance of ±0.7dB within its designated frequency range.Consistent with the series standard, the OBG-A2023supports a working temperature range of -55~+85°C and astorage temperature range of -55~+100°C, fully complyingwith the stringent test items and requirements outlined inGJB-1509-1992. It is equipped with standard connectors(consistent with series standard SMA-K) and high power handling capacity, ensuring stable operation in complexenvironments.
