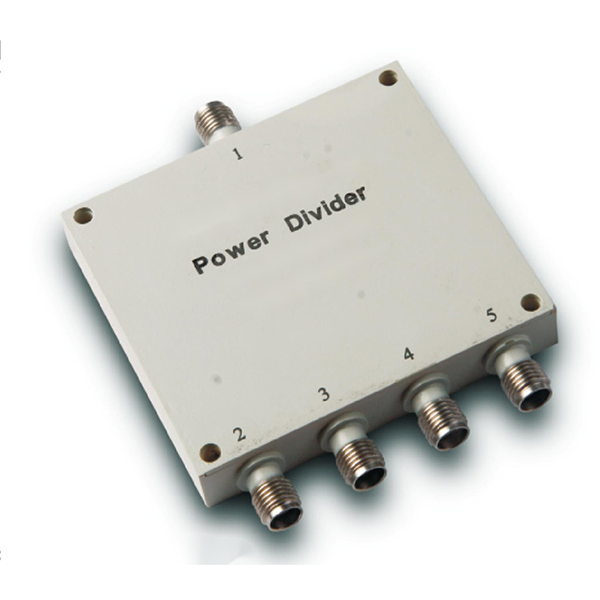

2-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
Frequency Range: 2-8GHz
4-Way SMA Power Divider
Insertion Loss: 1.20dB
Isolation: 17dB
Input VSWR: 1.40, Output VSWR: 1.35
Small size, low loss, high consistency batch production
Applications: Communication, EW, Radar, Navigation, Test Systems
- Description
- Datasheet

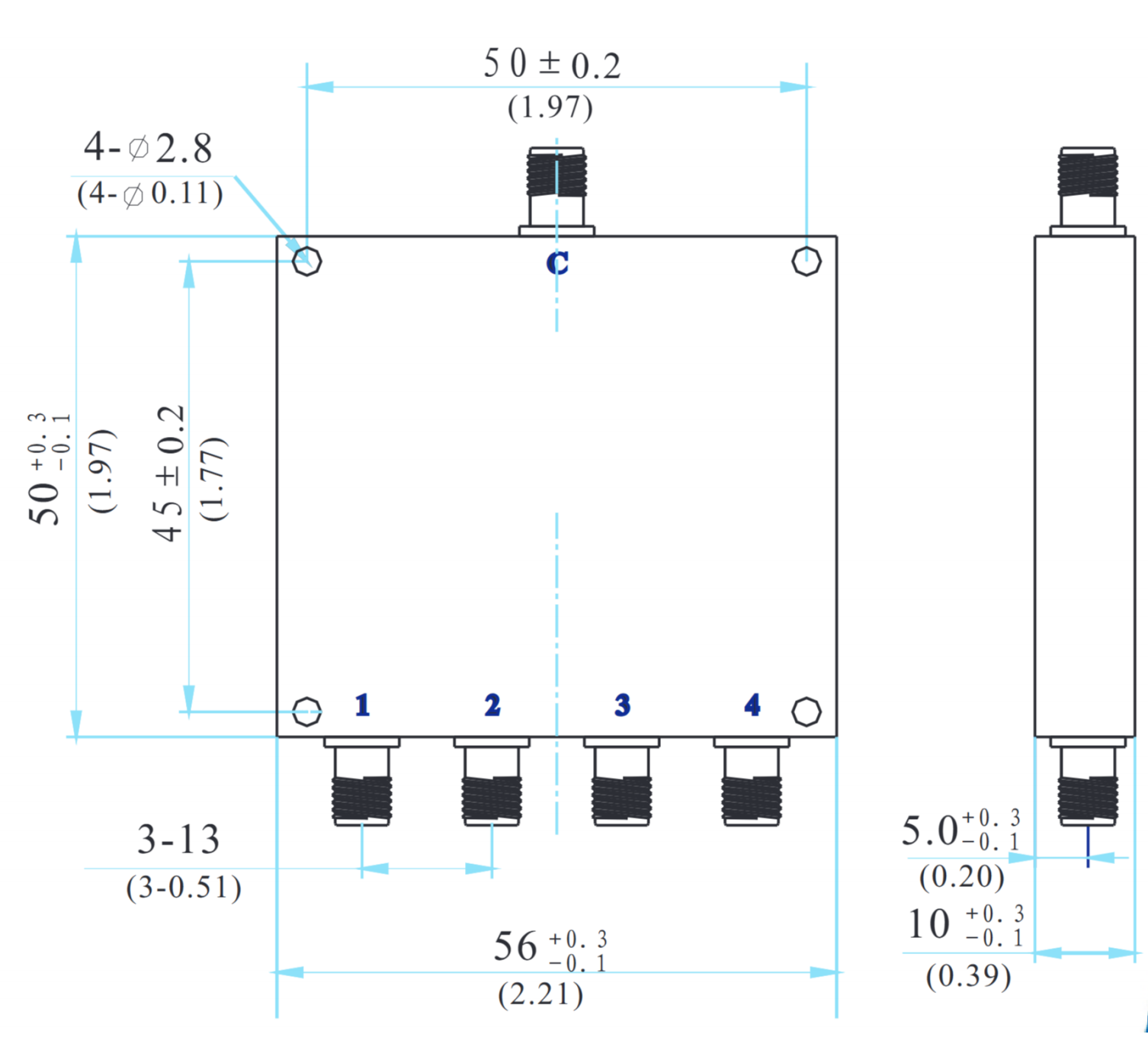

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0-degree power dividers covering the full 0.5-18GHz range. Thisseries features small size, low loss, low VSWR, and high isolation. Utilizing mass production control methods, the prod-uct ensures high consistency to meet large-volume supply requirements. The OPD-A0423 is primarily designed forthe distribution and synthesis of 4-way microwave signalsin communication, electronic warfare, radar, navigation, andtest and measurement systems.
OPD-A0423 |
|
|
2-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
1.20dB |
|
Isolation |
17dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±5° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.4 |
|
Output VSWR |
1.35 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
Frequency Range: 2-8GHz |
|
|
4-Way SMA Power Divider |
|
|
Insertion Loss: 1.20dB |
|
|
Isolation: 17dB |
|
|
Input VSWR: 1.40, Output VSWR: 1.35 |
|
|
Small size, low loss, high consistency batch production |
|
|
Applications: Communication, EW, Radar, Navigation, Test Systems |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
