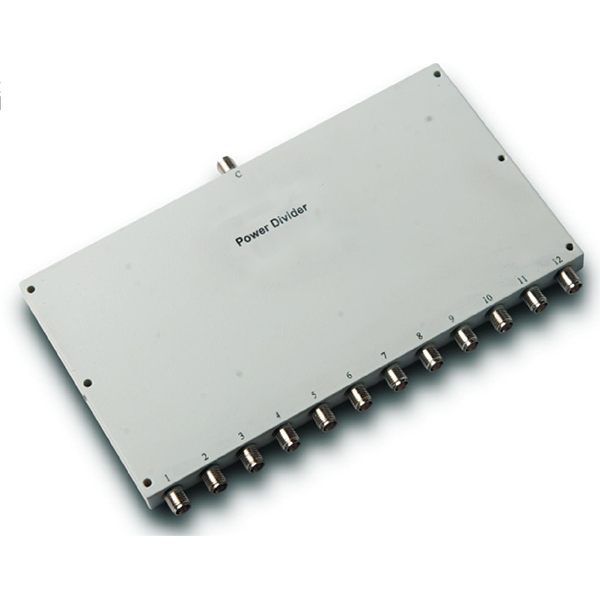

2-8GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Series covers 0.5-18GHz frequency range
Specific model range: 2-8GHz
Small size, low loss, low VSWR, high isolation
High consistency due to batch production control
Designed for 12-way microwave signal distribution and combination
Applications: Communication, electronic warfare, radar, navigation, test and measurement
Standardized product with customization options available
- Description
- Datasheet

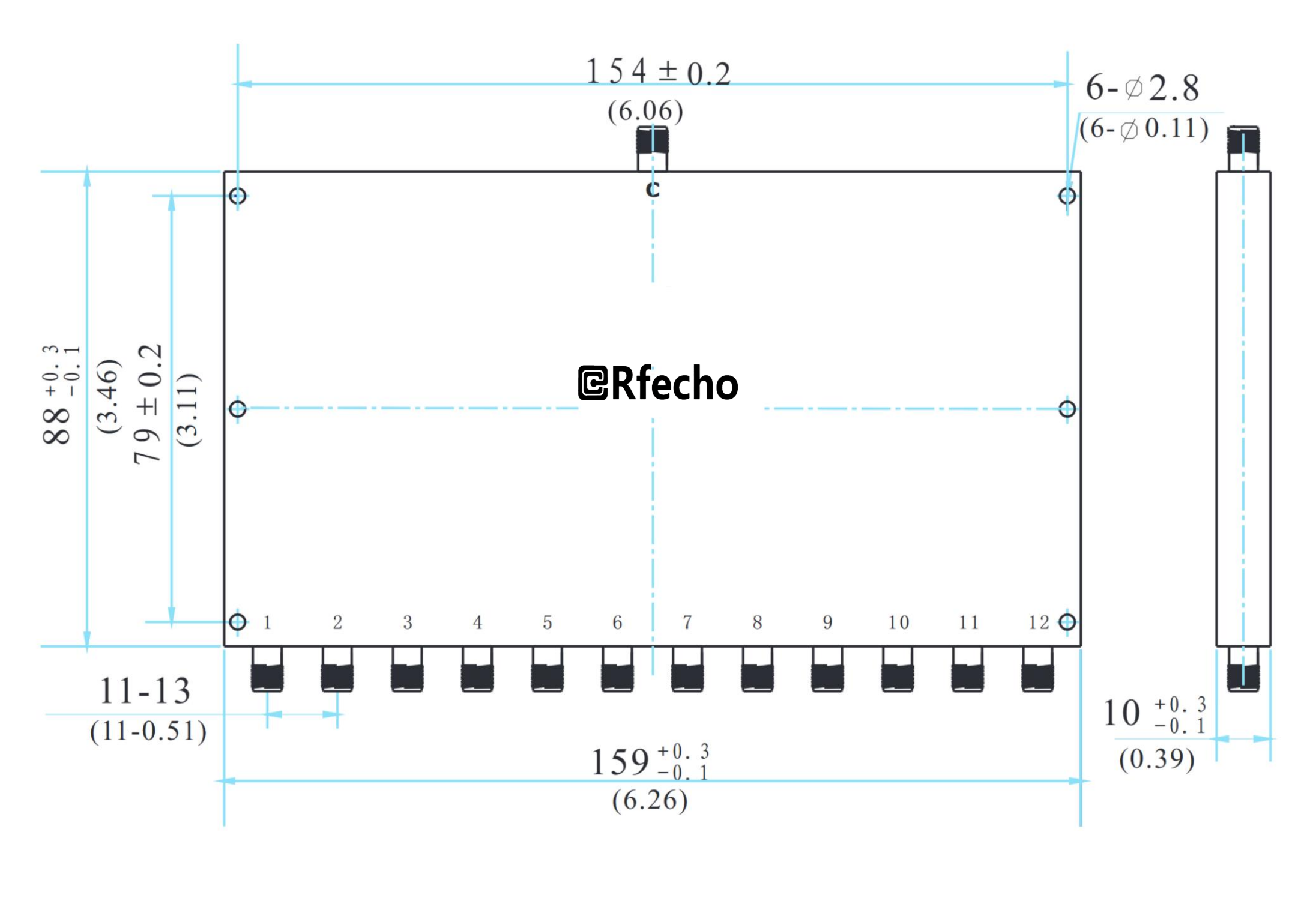

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range. They featuresmall size, low loss, low VSWR, and high isolation. This series adopts batch production control methods, ensuring highconsistency in product quality to meet large-volume supplyrequirements. OPD-A1223 is mainly used in communication,electronic warfare, radar, navigation, test and measurementsystems for the distribution and combination of 12-way microwave signals. This series consists of standardized prod-ucts; custom designs are available based on user needs.
OPD-A1223 |
|
|
2-8GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-8GHz |
|
Insertion Loss |
2.20dB |
|
Isolation |
16dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±1.00dB |
|
Phase Balance |
±7° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.6 |
|
Output VSWR |
1.4 |
|
Compliance |
Compliant with ‘GJB-1426-92’ test requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Series covers 0.5-18GHz frequency range |
|
|
Specific model range: 2-8GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
High consistency due to batch production control |
|
|
Designed for 12-way microwave signal distribution and combination |
|
|
Applications: Communication, electronic warfare, radar, navigation, test and measurement |
|
|
Standardized product with customization options available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
