2 to 18GHz,5 to 20dBi Gain, Dual Polarized Horn Antenna ODPA-20180
2 to 18GHz,5 to 20dBi Gain, Dual Polarized Horn Antenna ODPA-20180

2 to 18GHz,5 to 20dBi Gain, Dual Polarized Horn Antenna

ODPA-220440-20MM 22 GHz to 44 GHz, 11 dBi to 17 dBi Gain, Dual Polarized Horn Antenna, 2 -2.4mm Connectors, Dual Polarized Horn Antenna ODPA-220440-20MM
0 out of 5
( There are no reviews yet. )

Frequency Range: 2 GHz to 18 GHz
Gain: 5 dBi to 20 dBi
VSWR: 1.8Typ.
Impedance: 50Ohm
Connector Type: 2 SMA Type
Power handling: 100W
Cross Polar Isolation: 30 dBTyp.
Dual Polarized Horn Antenna is suitable for high-precision applications.

SKU: ODPA-20180 Category: Dual Polarized Horn Antenna
Add to Wishlist

Description

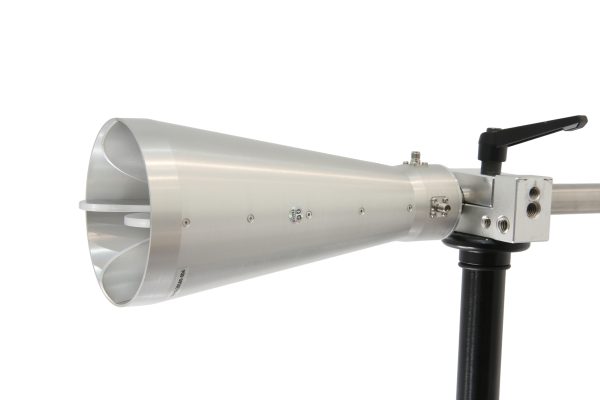

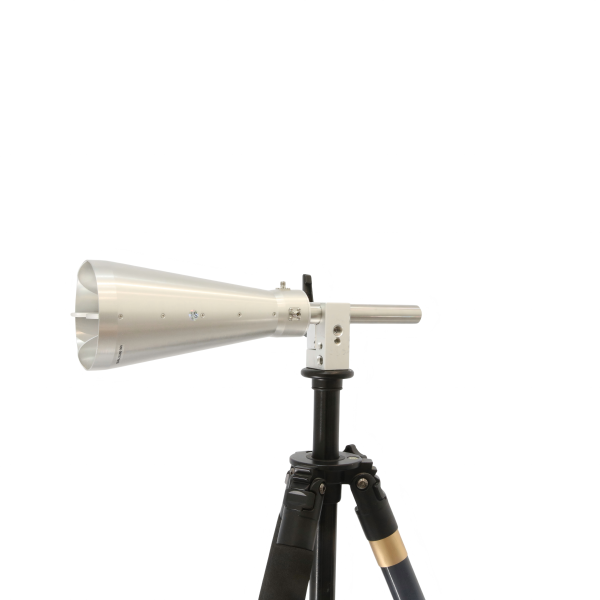

ODPA-20180 is designed to operate over a broad frequency range of 2-18GHz. One of its standout features is its circular design, which ensures superior consistency in radiation patterns both horizontally and vertically. The antenna boasts a gain ranging from 5 to 20dBi, catering to a variety of application needs.With its excellent orthogonal characteristics, it achieves a cross-polarization isolation greater than 30dB.Despite its powerful capabilities, the antenna is compact in size, with a diameter of just 100mm and a height of 220mm and weighing 750g.Furthermore, this robust antenna can handle a maximum continuous wave power of 100W, making it a reliable choice for demanding scenarios.
