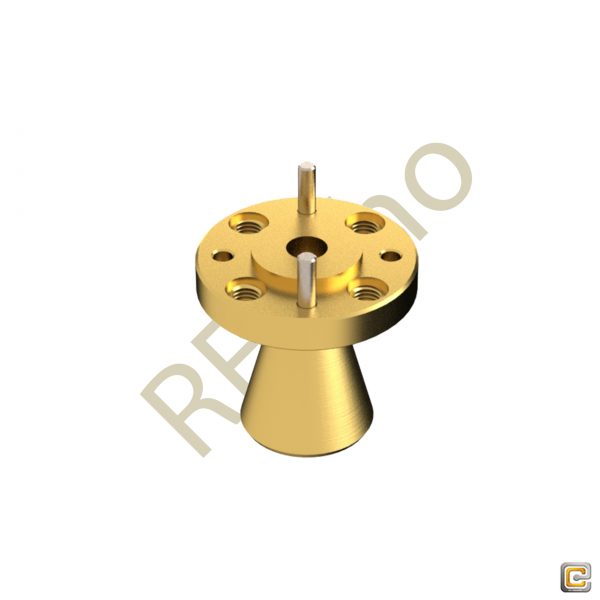

25 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas
Frequency: 58-68GHz
Gain: 25dBi.
VSWR: 1.15:1
Waveguide: WR-141
Side Lobes,E-Plane,H-plane: -18,-28
Flange: UG-385/U-M flange
Band Type: V Band
Diameter: 0.141Inch
The OCN-141-25 Conical Horn Antennas is suitable for Antenna Ranges，Feed Horns and System Setups.
- Description
- Datasheet

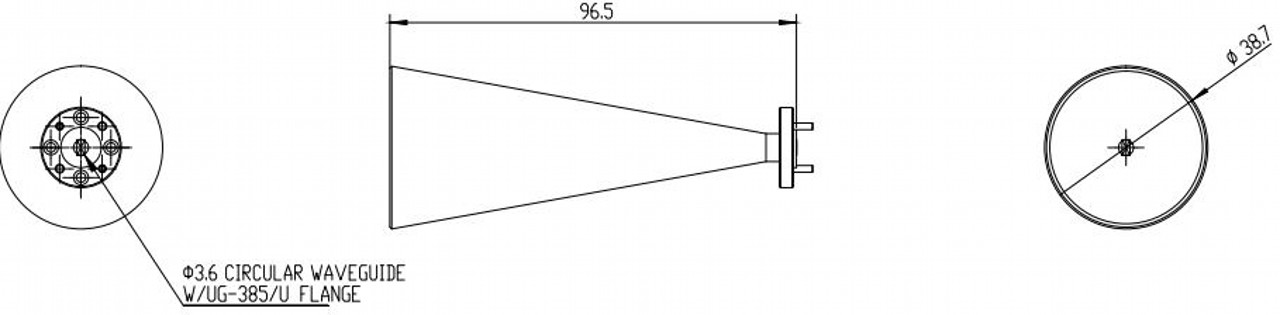

- Outline

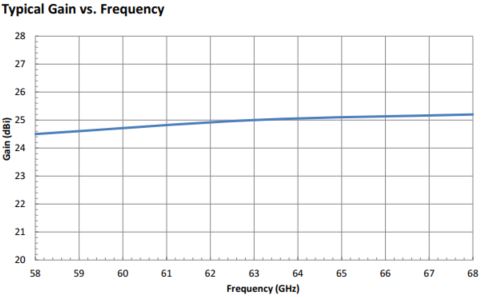

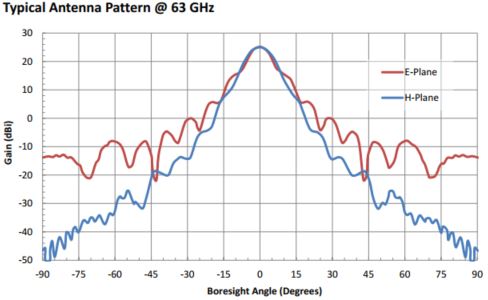

- Plot
- Reviews (0)
Description
| Conical Horn Antennas | |
| 25 dBi Gain, 58 GHz to 68 GHz, 0.141″ Diameter Circular Waveguide WR-141 Waveguide V Band Conical Horn Antennas | |
| OCN-141-25 | |
| Model OCN-141-25 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141 diameter circular waveguide with UG-385/U-M flange. | |
| Property | Value |
| Min. Frequency (GHz) | 58 |
| Max. Frequency (GHz) | 68 |
| Gain(dBi) | 25 |
| 3 dB Beamwidth, E-plane | 9° |
| 3 dB Beamwidth, H-plane | 10° |
| Side Lobes, E-Plane (dB) | -18 |
| Side Lobes, H-Plane (dB) | -28 |
| Waveguide | WR-141 |
| Band Type | V Band |
| Flange | UG-385/U-M flange |
| Diameter (Inch) | 0.141 |
| VSWR | 1.15:1 |
| Features | |
| Circular Waveguide Interface | |
| Precisely Machined and Gold Plated | |
| High Return Loss | |
| Linear and Circular Polarization | |
| Applications | |
| Antenna Ranges | |
| Feed Horns | |
| System Setups | |
