High Pass Passive Cavity Filter 3GHz to 18GHz Passive High Pass Filter rejection ≥ 22dB @ DC~2.5GHz with SMA Female Connector

High Pass Passive Cavity Filter model OHP: 3000-18000-A also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Passive Cavity Filter Manufactured with a passband frequency from 3GHz to 18GHz and a Cut-off frequency 2.5GHz. Our Passive High Pass Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥22dB @ DC – 2.5GHz. Since the high end cutoff frequency of High Pass Passive Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive High Pass Filter has Passband VSWR of ≤ 1.8:1 and power handling of ≤ 15W. High Pass Passive Cavity Filter is manufactured with SMA Female Connector and Impedance of 50ohms. 3GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3GHz to 18GHz High Pass Passive Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Passive High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-3000-18000-A Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass  Cavity Filter (OHP) – OHP-3000-18000-A:

  • Cut Off Frequency: 2.5GHz,
  • Pass Band Frequency: 3-18GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥22 dB @ DC – 2.5 GHz

[/vc_column_text][/vc_tab]

Empty section. Edit page to add content here.

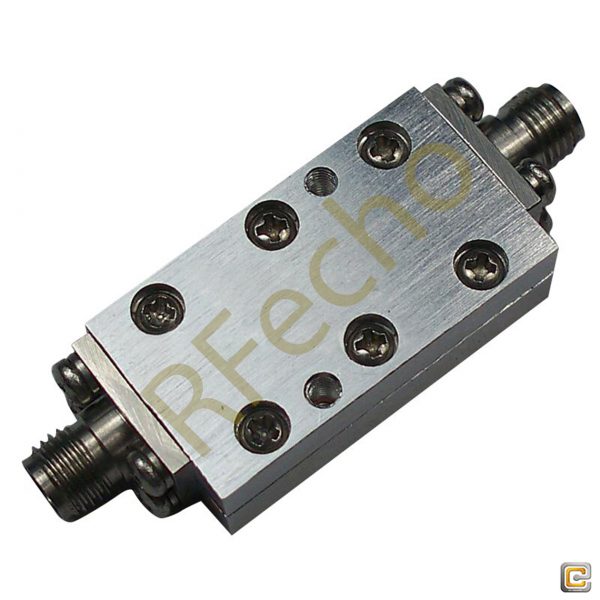

3.0 GHz to 18 GHz Rejection ≥22 dB @ 2.5 GHz High Pass Cavity Filter 01

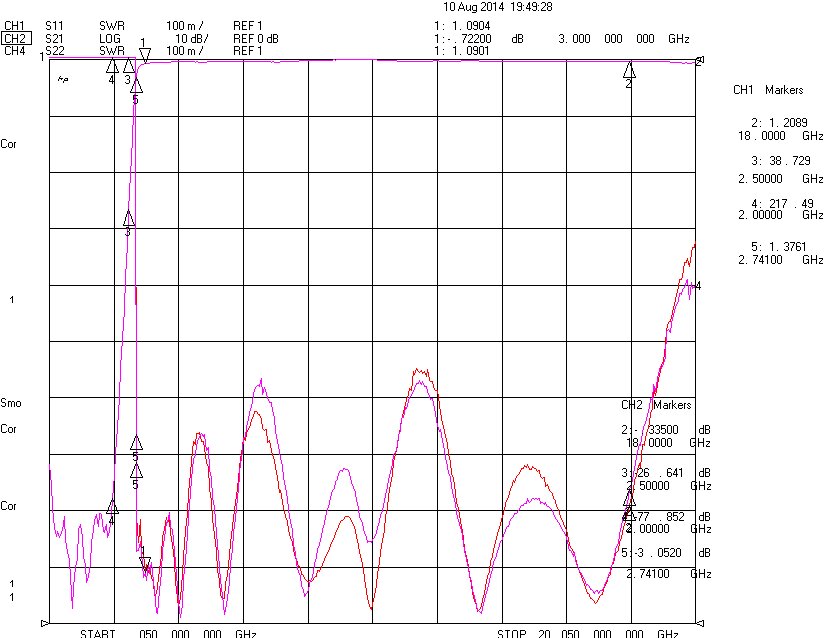

3.0 GHz to 18 GHz Rejection ≥22 dB @ 2.5 GHz High Pass Cavity Filter 02

[/vc_tabs]

Additional information

Min. Pass Band Frequency (GHz)

3

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.0dB

VSWR

≤1.8:1 (Type≤1.6:1)

Rejection

≥22 dB @ 2.5 GHz ≥65 dB @ DC-2.0 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
