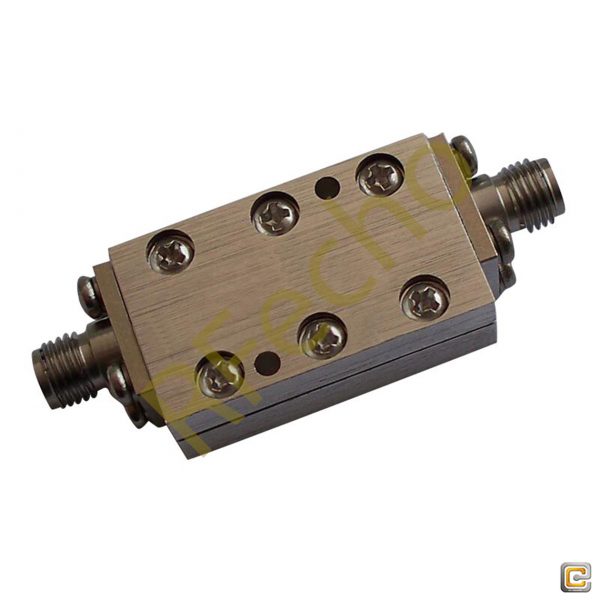

OHP-3300-18000:

  • Cut Off Frequency is 2.7GHz,
  • Pass Band Frequency: 3.3-18GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥40 dB @ DC-2700MHz.



SKU: OHP-3300-18000 Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. More Cavity Filters…

High Pass Filter (OHP) – OHP-3300-18000:

  • Cut Off Frequency is 2.7GHz,
  • Pass Band Frequency: 3.3-18GHz,
  • Pass Band Insertion Loss: 1.0dB,
  • Pass Band VSWR: 1.7,
  • Rejection: ≥40 dB @ DC-2700MHz.

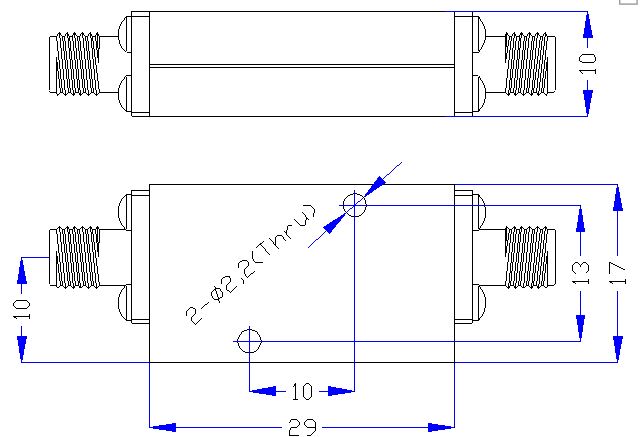

Outline

3.3 GHz to 18 GHz Rejection ≥40 dB @ DC-2700MHz High Pass Cavity Filter 01

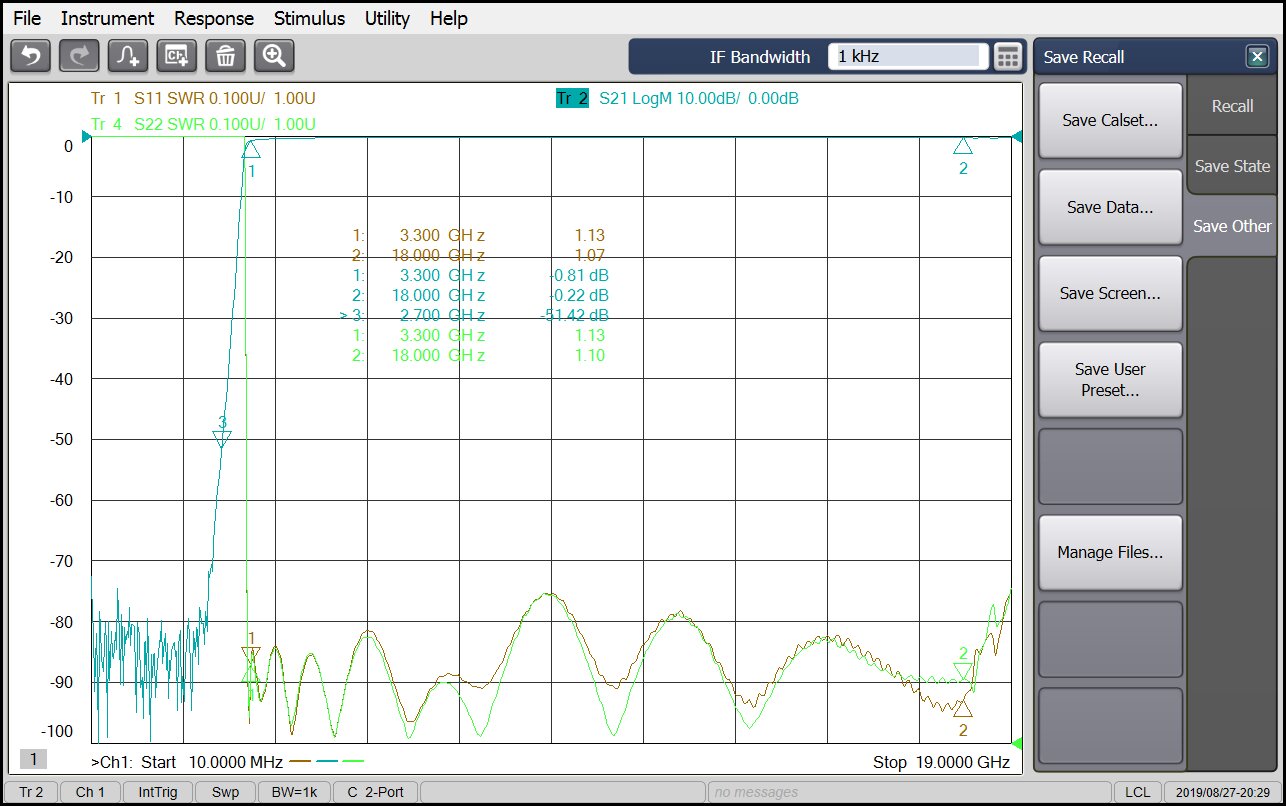

Plot

3.3 GHz to 18 GHz Rejection ≥40 dB @ DC-2700MHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.02 kg
Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≤1.7:1 (Type≤1.5:1)

Rejection

Impedance (Ω)

Surface Finish
