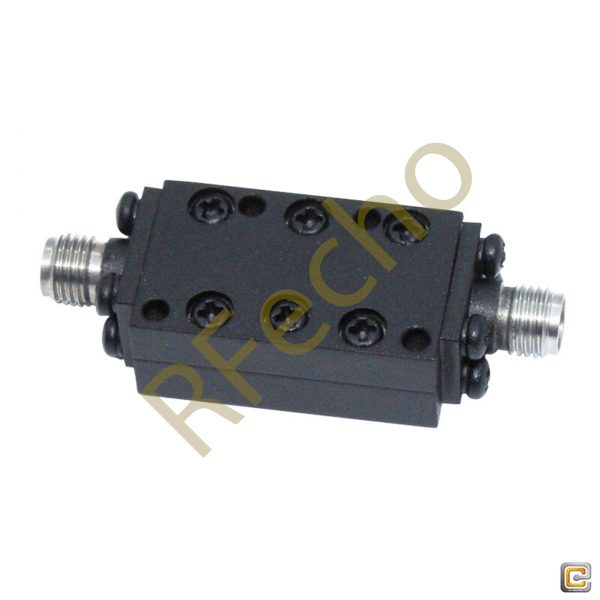

Cavity Microwave High pass Filter 3.75GHz to 23GHz RF High pass Filter rejection ≥ 50dB DC~3.03GHz with SMA Female Connector

Cavity Microwave High Pass Filter model OHP: 3750-23000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity Microwave High Pass Filter Manufactured with a passband frequency from 3.75GHz to 23GHz and a Cut-off frequency 3.75GHz. Our RF High Pass Filter provides a nominal insertion loss of ≤1.5dB @ 3.75GHz – 3.9GHz | ≤1.0dB @ 3.9GHz – 23GHz across its passband and a typical rejection of ≥50dB @DC – 3.03GHz. Since the high end cutoff frequency of Cavity Microwave High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF High Pass Filter has Passband VSWR of ≤1.5:1 @ 3.75GHz – 20GHz | ≤1.8:1 @ 20GHz – 23GHz and power handling of ≤15W. Cavity Microwave High Pass Filter is manufactured with SMA Female Connector and Impedance of 50ohms.
3.75GHz to 23GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3.75GHz to 23GHz Cavity Microwave High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-3750-23000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-3750-23000:

  • Cut Off Frequency is 3.75GHz,
  • Pass Band Frequency: 3.75-23GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥50 dB @ DC-3.03 GHz

[/vc_column_text][/vc_tab]

Empty section. Edit page to add content here.

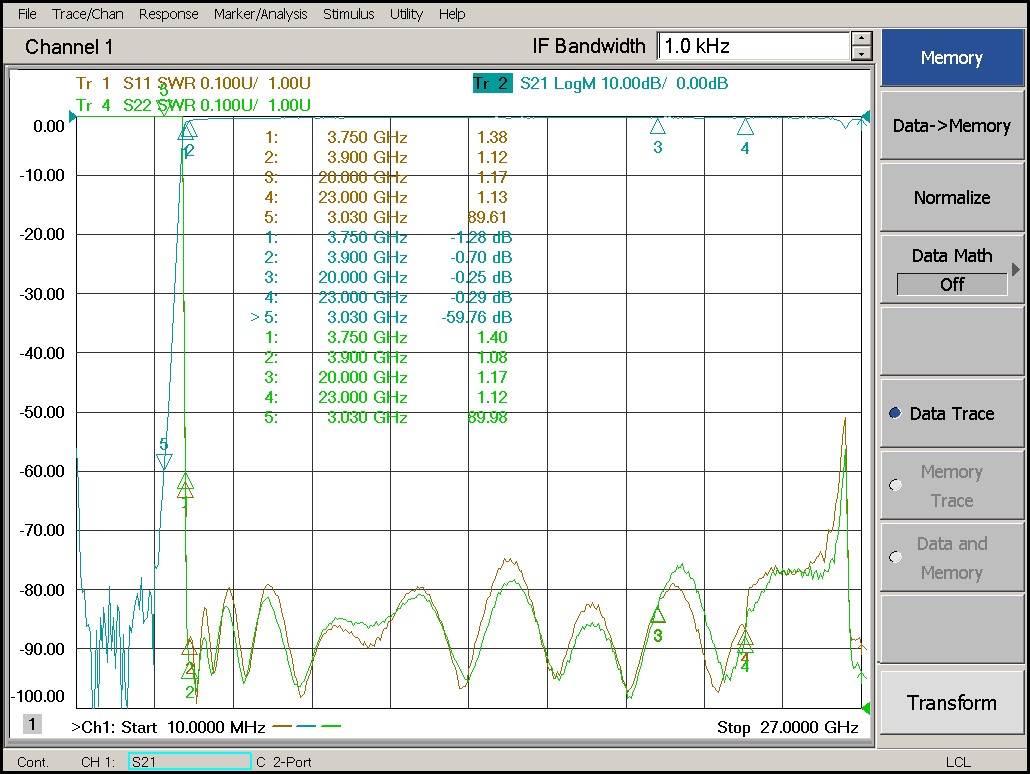

3.75 GHz to 23 GHz Rejection ≥50 dB @ DC -3.03 GHz High Pass Cavity Filter 01

3.75 GHz to 23 GHz Rejection ≥50 dB @ DC -3.03 GHz High Pass Cavity Filter 02

[/vc_tabs]

Additional information

Weight 0.0164 kg
Min. Pass Band Frequency (GHz)

3.75

Max. Pass Band Frequency (GHz)

23

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB @3.75 ~3.9GHz ≤1.0dB @ 3.9 ~23GHz

VSWR

≤1.5:1 @ 3.75 ~20GHz ≤1.8:1 @ 20 ~23GHz

Rejection

≥50 dB @ DC -3.03 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
