32–38 GHz Four-Channel Beamforming IC – MH351
TX linear gain: 8 dB typ.
RX linear gain: 1 to 5 dB
RX noise figure: 12 dB max.
Supply voltage: 5 V, −5 V
6-bit phase control; 5.625° LSB
Digitally controlled attenuation; 0.5 dB LSB
RX attenuation range: 23.5 dB
- Description
- Datasheet
- Functional Block Diagram
Description
The MH351 is a four-channel beamforming IC operating over 32–38 GHz. It integrates low-noise amplification, transmit amplification, digitally controlled attenuation, phase shifting and beam-control circuitry.
Applications: Phased-array radar and communications systems.
Product status: Production.
Four-Channel Beamforming IC Specifications | |
| 32–38 GHz | |
| MH351 | |
Index | Value |
| Frequency range | 32 to 38 GHz |
| TX linear gain | 8 dB typ.; COM to TXn |
| TX output 1 dB compression point | 2 to 10 dBm |
| RX linear gain | 1 to 5 dB; RXn to COM |
| RX input 1 dB compression point | −11 to −5 dBm |
| RX noise figure | 12 dB max. |
| Port VSWR | 8 max. |
| RX current per channel | 58 mA typ. |
| TX quiescent current per channel | 68 mA typ. |
| T/R switching time | 100 ns max. |
| Operating temperature | −55 to +125 °C |
| Supply voltage | 5 V, −5 V |
| Package / dimensions | Die, 2.6 × 5.4 mm |
Features | |
| 6-bit phase control; 5.625° LSB | |
| Digitally controlled attenuation; 0.5 dB LSB | |
| RX attenuation range: 23.5 dB | |
| TX attenuation range: 15.5 dB | |
| 360° phase-shift range | |
| Single-ended 50 Ω RF ports | |
Application Scenarios

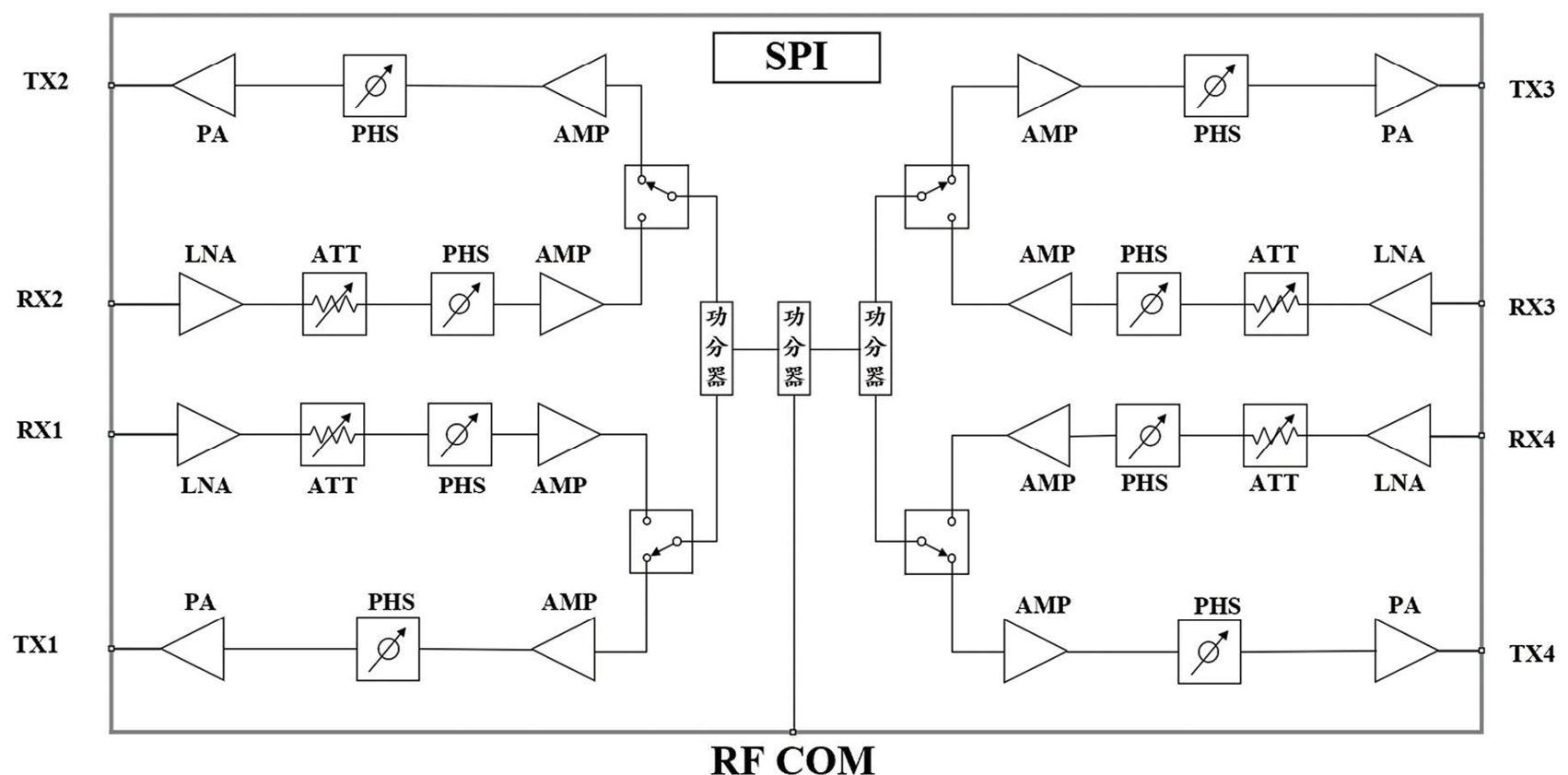

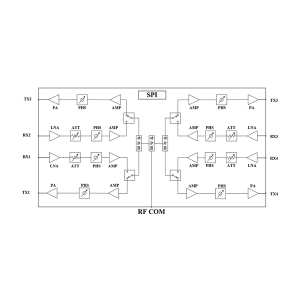

Functional Block Diagram
