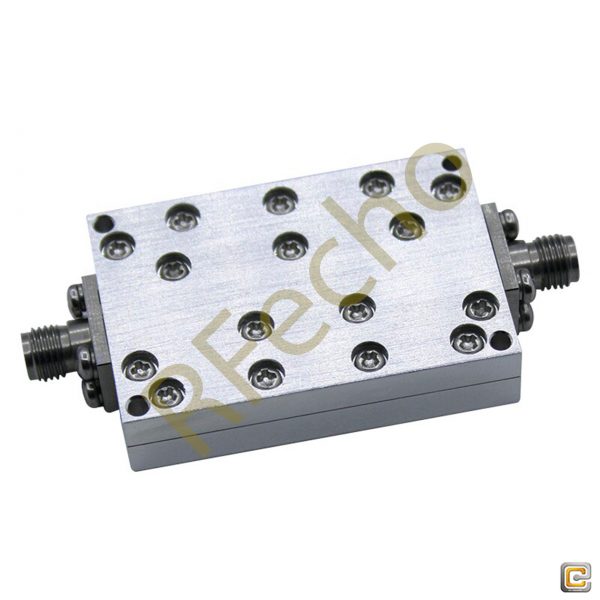

Cavity Passive High pass Filter 4GHz to 20GHz High pass Cavity Filter rejection ≥ 60dB DC~3.55GHz with SMA Female Connector

Cavity Passive High Pass Filter model OHP: 4000-20000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This Cavity Passive High Pass Filter Manufactured with a passband frequency from 4GHz to 20GHz and a Cut-off frequency 4GHz. Our High Pass Cavity Filter provides a nominal insertion loss of ≤2.0dB @ 4GHz – 4.2GHz | ≤1.0dB @ 4.2GHz – 20GHz across its passband and a typical rejection of ≥60dB @DC – 3.55GHz. Since the high end cutoff frequency of Cavity Passive High Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Cavity Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. Cavity Passive High Pass Filter is manufactured with SMA Female Connector and Net weight of 0.035Kg.
4GHz to 20GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 4GHz to 20GHz Cavity Passive High Pass Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-4000-20000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter (OHP) – OHP-4000-20000:

  • Cut Off Frequency: 4.0GHz,
  • Pass Band Frequency: 4.0-20GHz,
  • Pass Band Insertion Loss: is 2.0dB,
  • Pass Band VSWR: 1.5,

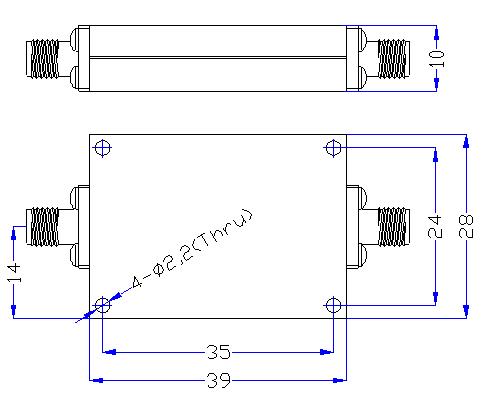

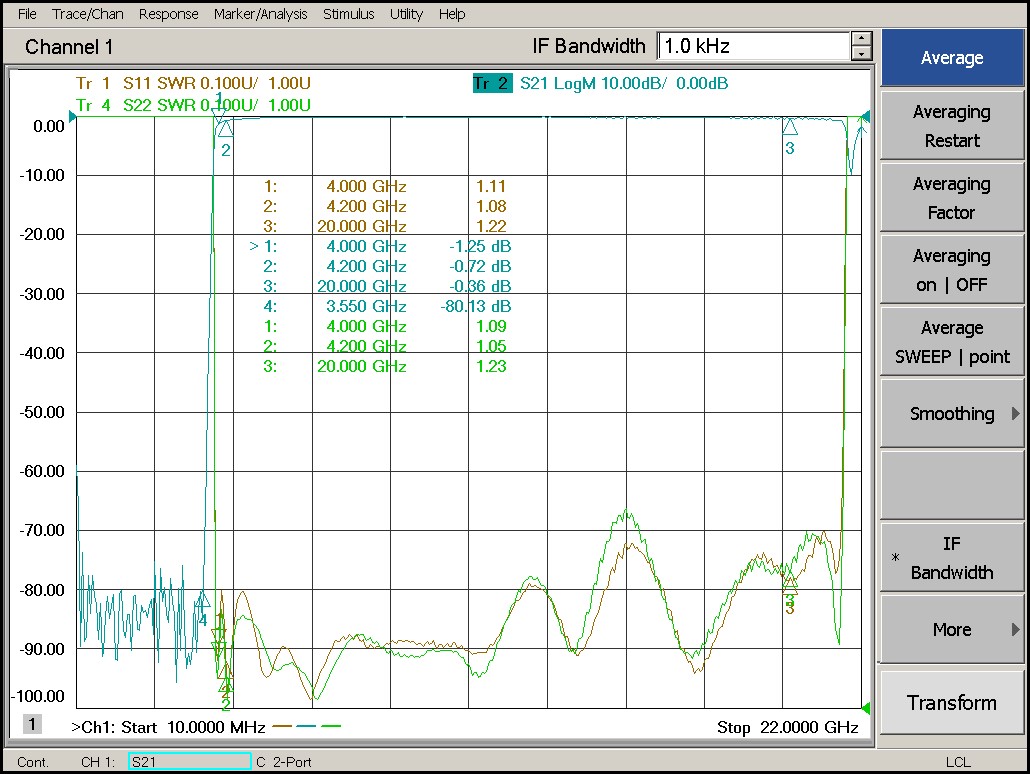

  • Rejection: ≥60 dB @ DC-3.55 GHz

Additional information

Weight 0.035 kg
Min. Pass Band Frequency (GHz)

4

Max. Pass Band Frequency (GHz)

20

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 4.0~4.2GHz ≤1.0dB @ 4.2~20GHz

VSWR

≤1.5:1

Rejection

≥60 dB @ DC-3.55 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
