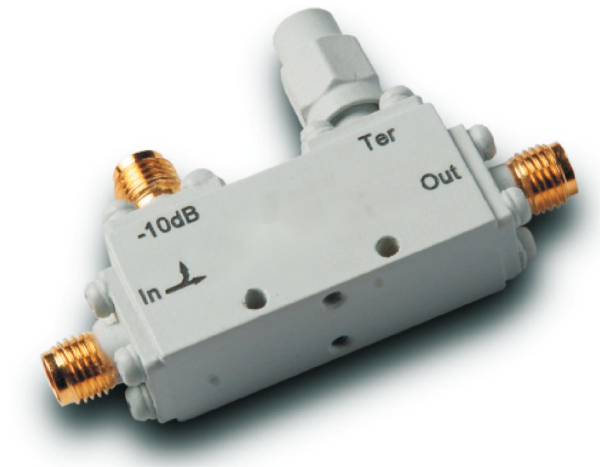

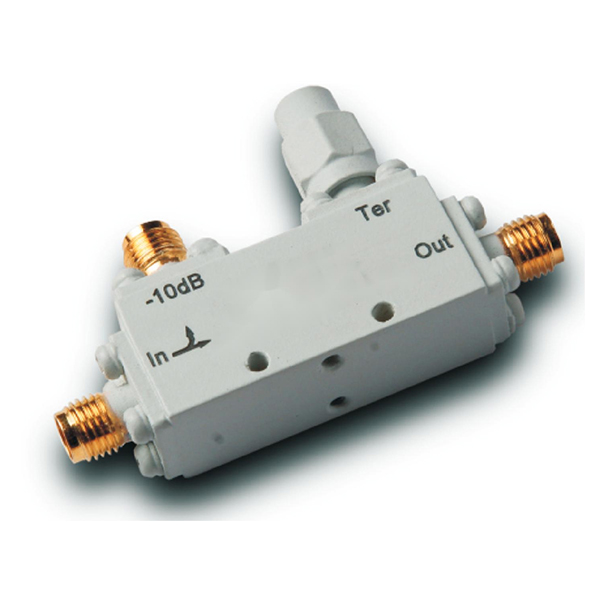

4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 0.5-18GHz
SMA Connectors
Stripline Structure
Low Insertion Loss
High Directivity
High Power Handling
Internal Load
- Description
- Datasheet

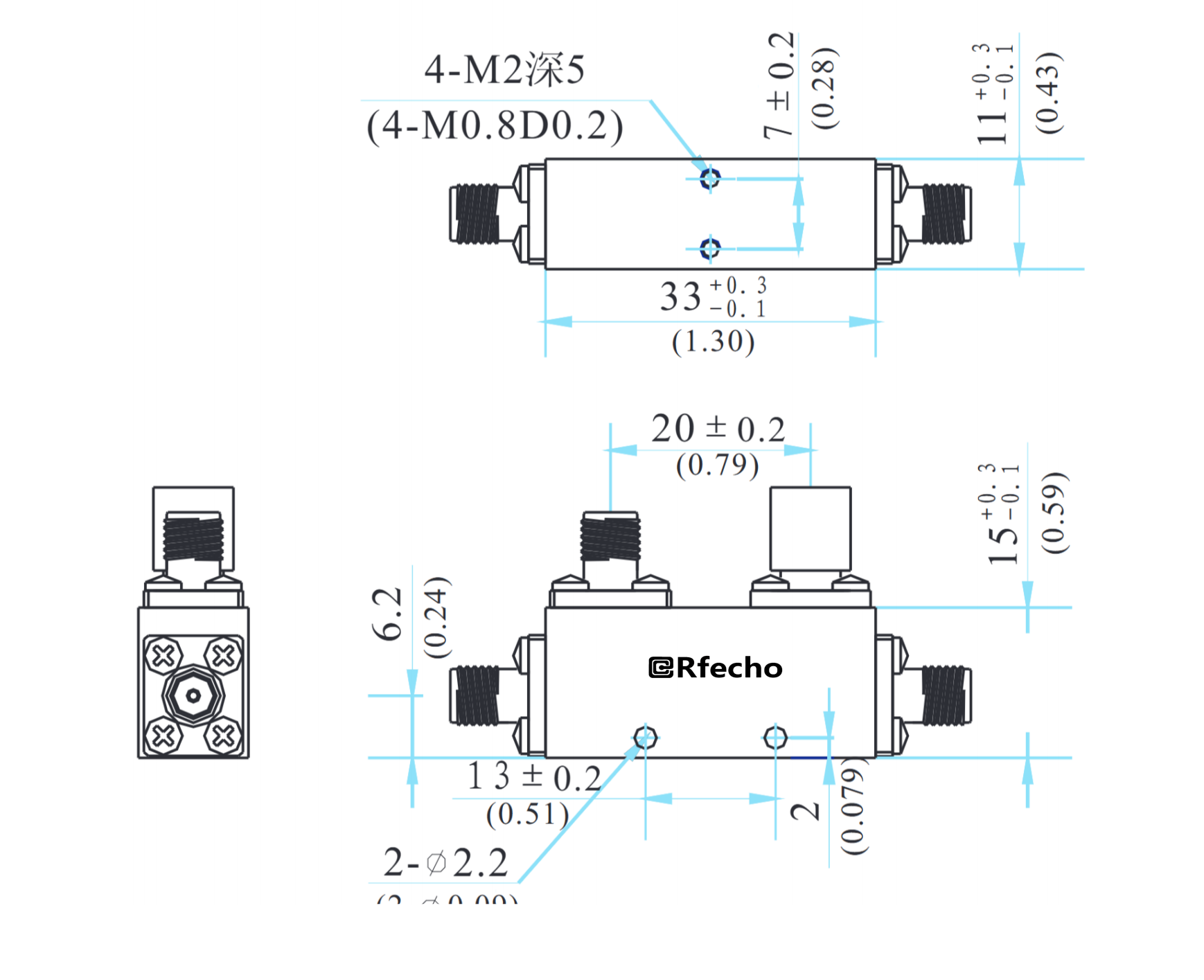

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency range. Using SMA connectors and a striplinestructure, they feature low insertion loss, high directivity, highpower handling, and an internal load for ease of use. TheOPD-A1204 broadband directional coupler is mainly used inradar, communication, satellite communication, navigation,and measurement fields for signal sampling, monitoring, unequal power distribution, and combining. Multiple couplingdegrees are available.
OCP-A1204-10 |
|
|
4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
0.6dB |
|
Coupling |
10±1dB |
|
Power Handling |
|
|
Connector |
SMA |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Meets GJB-1509-1992 Test Requirements |
Features |
|
|
Frequency Range: 0.5-18GHz |
|
|
SMA Connectors |
|
|
Stripline Structure |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
High Power Handling |
|
|
Internal Load |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
