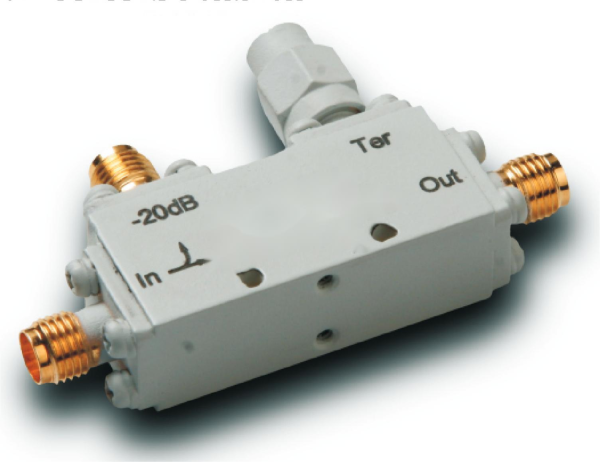

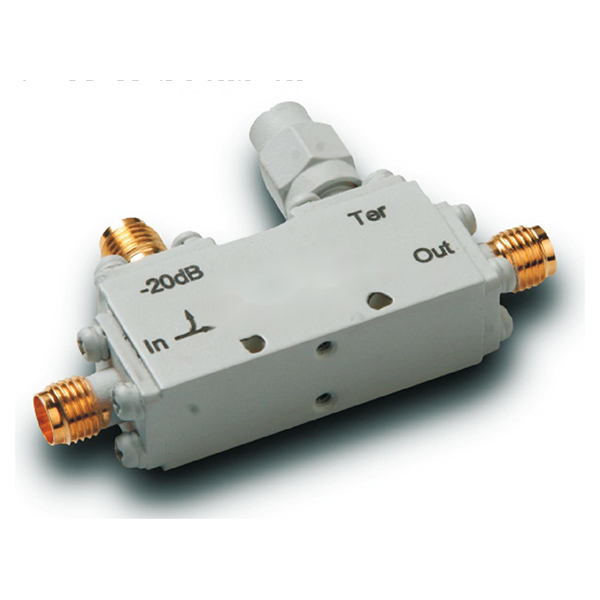

4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 0.5-18GHz (Series Coverage)
Specific Model Frequency: 4-18GHz
Connector: SMA-K
Power Handling: 50W
Structure: Strip line
Low Insertion Loss
High Directivity
Internal Termination
Standardized product, customizable
- Description
- Datasheet

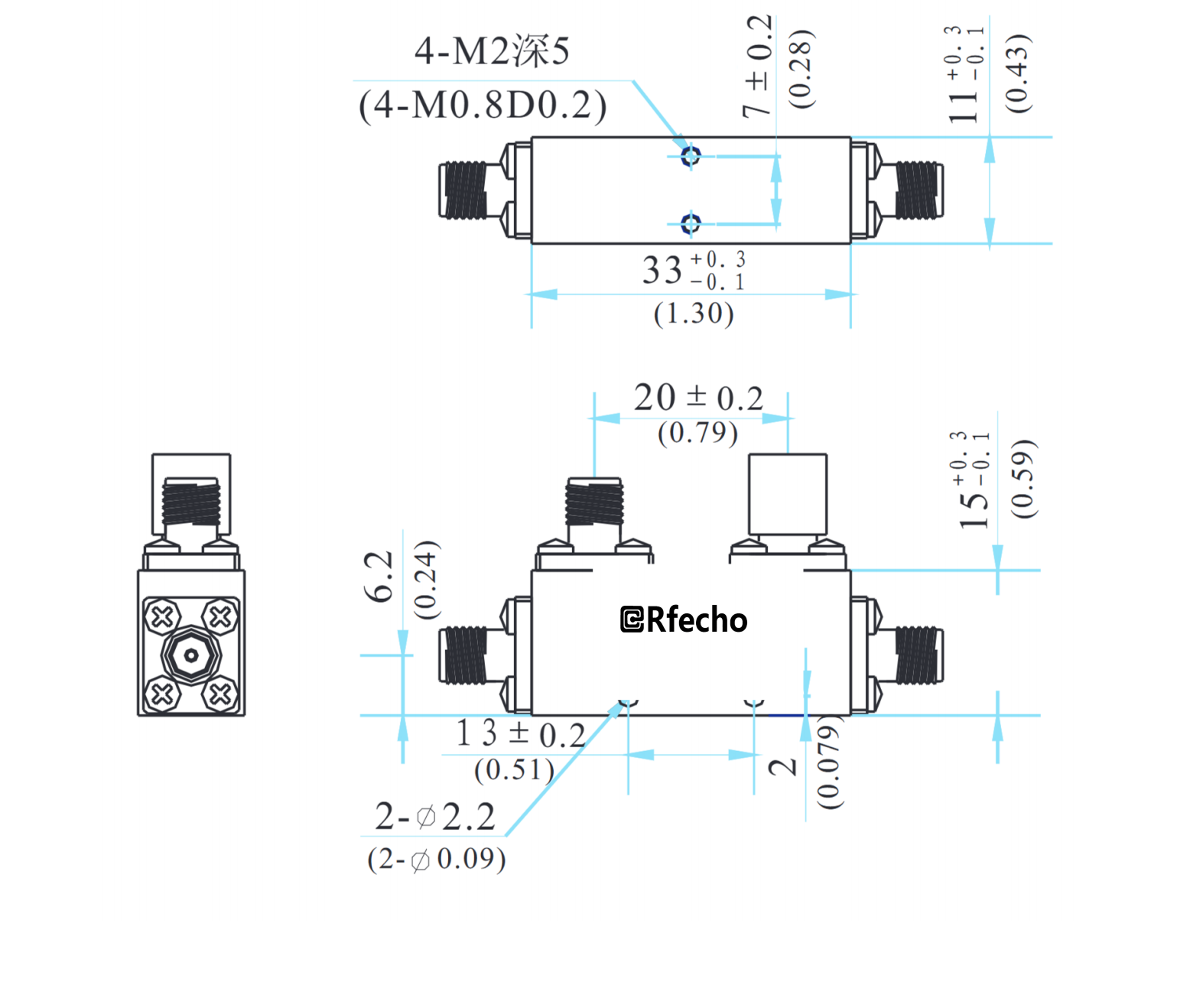

- Outline
- Reviews (0)
Description
The OCP -A1 series of general-purpose directional couplerscovers the 0.5-18GHz frequency band. Utilizing SMA connectors and a stripline circuit structure, they feature low in-sertion loss, high directivity, high power handling, and built-intermination for ease of use. The OPD-A1204 broadband directional coupler is primarily used in radar, communications,satellite communications, navigation, and test and measurement fields for signal sampling, monitoring, unequal pow-er distribution, and combining. Multiple coupling degrees areavailable.
OCP-A1204-20 |
|
|
4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
0.6dB |
|
Coupling |
20±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Frequency Range: 0.5-18GHz (Series Coverage) |
|
|
Specific Model Frequency: 4-18GHz |
|
|
Connector: SMA-K |
|
|
Power Handling: 50W |
|
|
Structure: Strip line |
|
|
Low Insertion Loss |
|
|
High Directivity |
|
|
Internal Termination |
|
|
Standardized product, customizable |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
