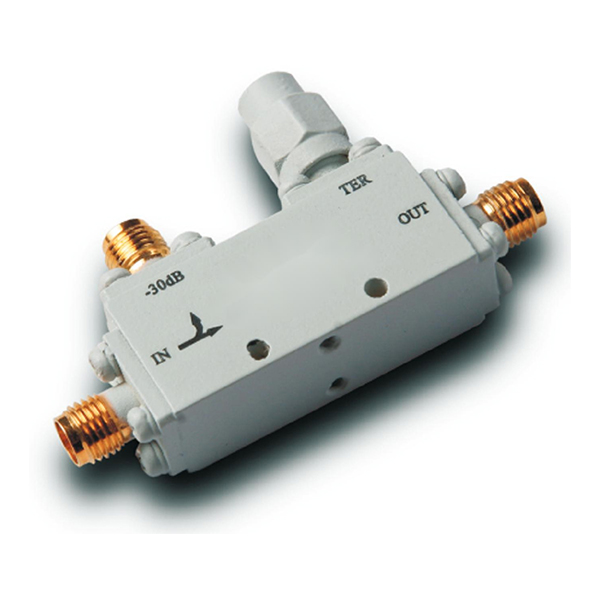

4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler
$0
Frequency Range: 4-18GHz
Coupling: 30±1dB
SMA-K Connectors
Stripline structure
Low insertion loss
High directivity
High power handling (50W)
Built-in load
- Description
- Datasheet

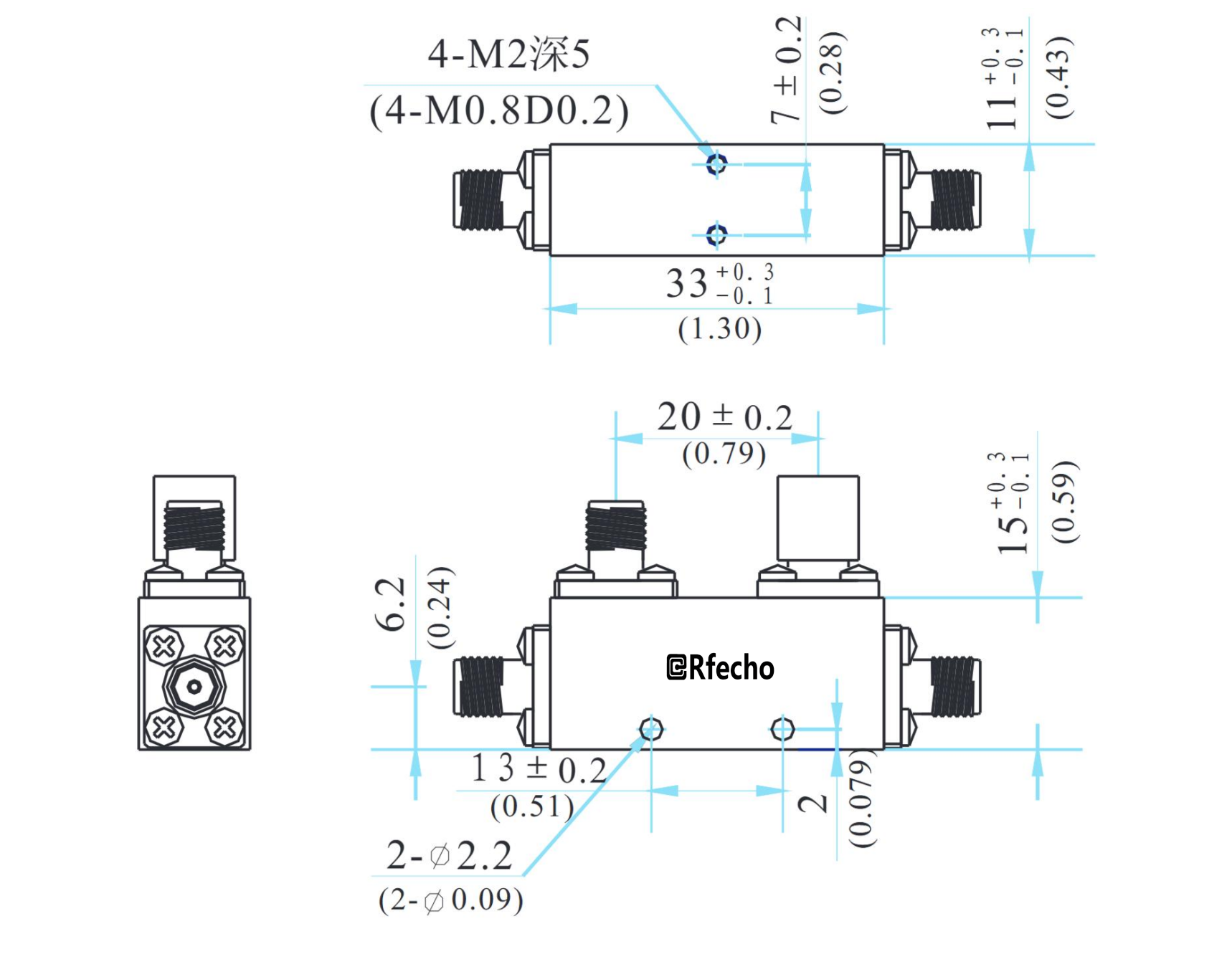

- Outline
- Reviews (0)
Description
The OCP -A1 series directional couplers cover the 0.5-18GHzfrequency band. Using SMA connectors and a stripline circuitstructure, they feature low insertion loss, high directivity, highpower handling capability, and a built-in load for convenientuse. The OPD-A1204 broadband directional coupler is primarily used in radar, communications, satellite communica-tions, navigation, and test and measurement fields for signal sampling, monitoring, and unequal power distribution orsynthesis. A variety of coupling degrees are available. Thisseries consists of standard products that can be customizedaccording to user requirements.
OCP-A1204-30 |
|
|
4-18GHz 0.6dB OCP-A1 Series General Purpose Directional Coupler |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
0.6dB |
|
Coupling |
30±1dB |
|
Power Handling |
50W |
|
Connector |
SMA-K |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
VSWR |
1.5 |
|
Directivity |
12dB |
|
Frequency Sensitivity |
±1.0dB |
|
Structure |
Stripline structure |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
Frequency Range: 4-18GHz |
|
|
Coupling: 30±1dB |
|
|
SMA-K Connectors |
|
|
Stripline structure |
|
|
Low insertion loss |
|
|
High directivity |
|
|
High power handling (50W) |
|
|
Built-in load |
|
Applications |
|
|
Radar, Communications, Satellite Communications, Navigation, Test & Measurement |
|
