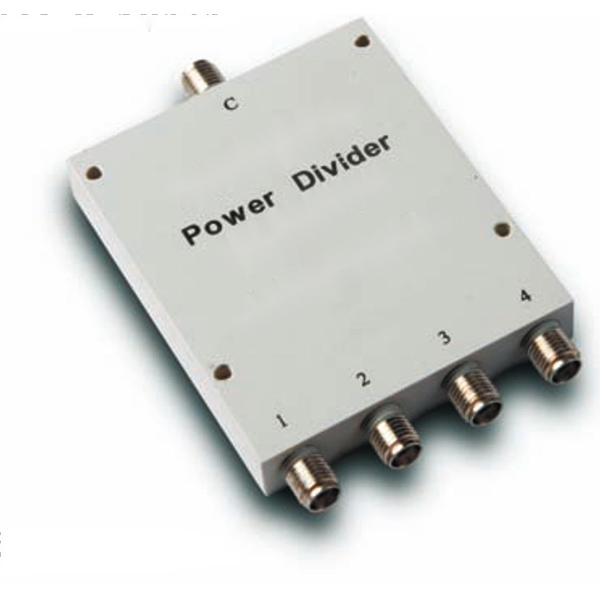

4-18GHz Insertion Loss 1.60dB SMA Connector 0° Power Divider
Frequency Range: 4-18GHz
4-Way Power Divider
0° Phase Relationship
SMA-Female Connectors
Low Insertion Loss (1.60dB)
High Isolation (17dB)
Small Size & Low VSWR
High Consistency for Mass Production
- Description
- Datasheet

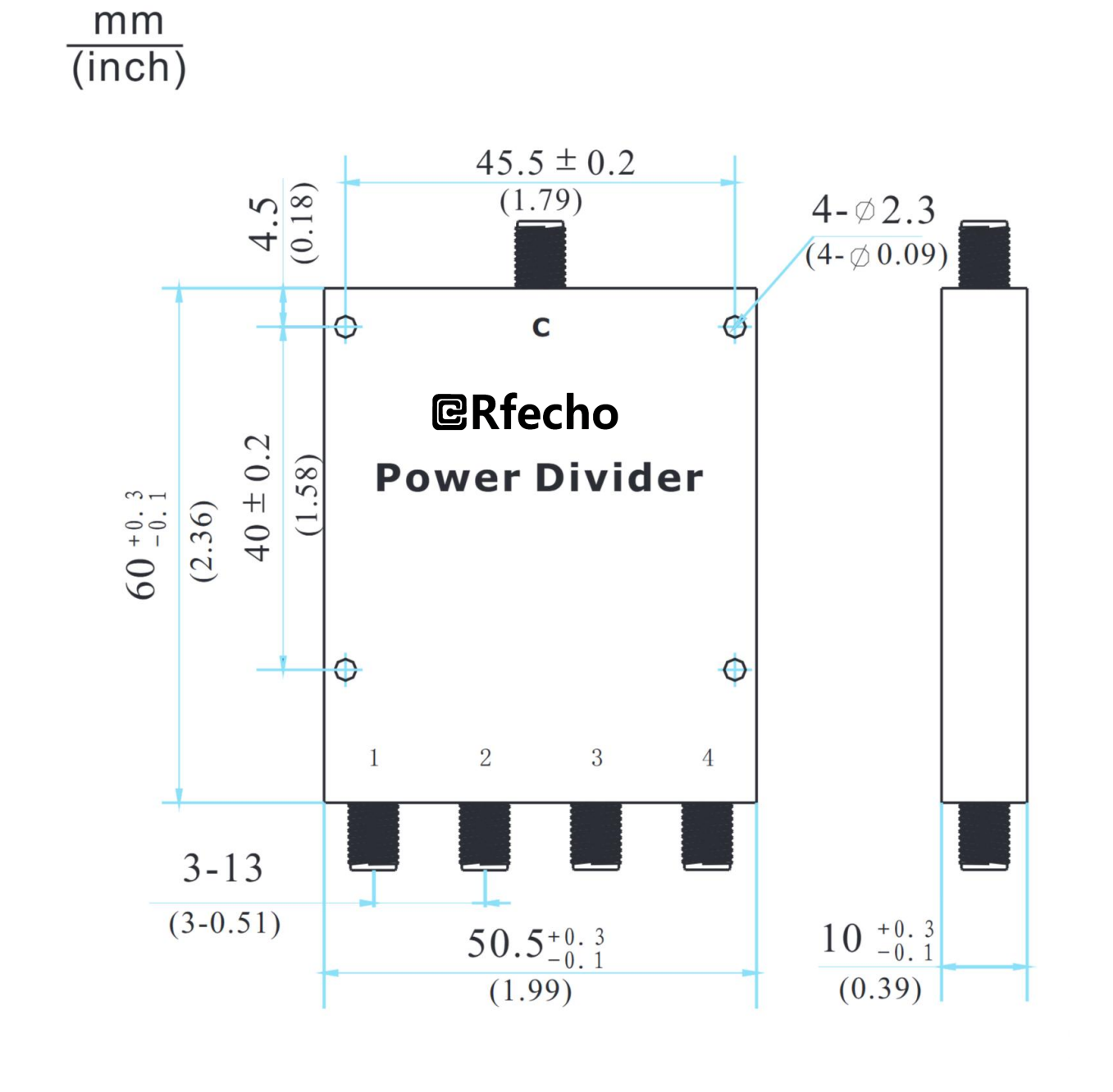

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0° power dividerswith SMA connectors, covering the full 0.5-18GHz range(4-18GHz for this model). They feature small size, low loss,low VSWR, and high isolation. The series utilizes massproduction control methods to ensure high quality consistency, meeting large-volume delivery requirements. TheOPD-A0424 is primarily used in communication, electronicwarfare, radar, navigation, and test & measurement systemsfor the distribution and synthesis of 4-way microwave signals.This is a standardized product, with custom designs and other catalog options available.
OPD-A0424 |
|
|
4-18GHz Insertion Loss 1.60dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
1.60dB |
|
Isolation |
17dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.50dB |
|
Phase Balance |
±8° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.6 |
|
Output VSWR |
1.5 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
Frequency Range: 4-18GHz |
|
|
4-Way Power Divider |
|
|
0° Phase Relationship |
|
|
SMA-Female Connectors |
|
|
Low Insertion Loss (1.60dB) |
|
|
High Isolation (17dB) |
|
|
Small Size & Low VSWR |
|
|
High Consistency for Mass Production |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
