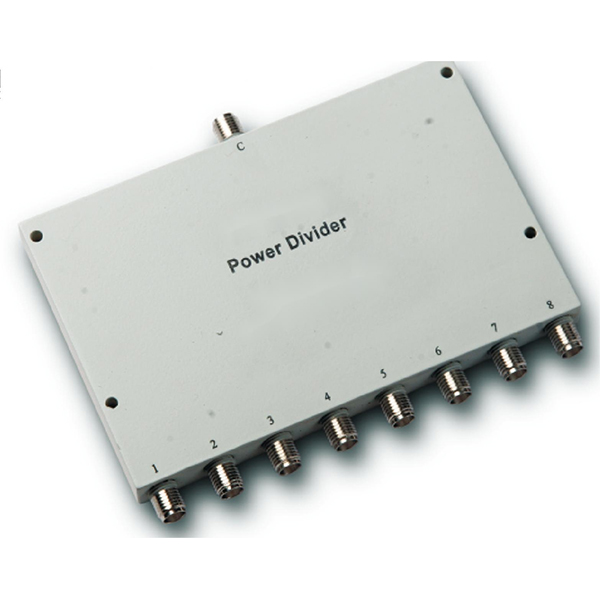

4-18GHz Insertion Loss 2.50dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Covers 4-18GHz Frequency Range
Small size, low loss, low VSWR, high isolation
Batch production control ensures high consistency
Designed for 8-way microwave signal distribution and synthesis
Suitable for communications, radar, navigation, and test systems
- Description
- Datasheet

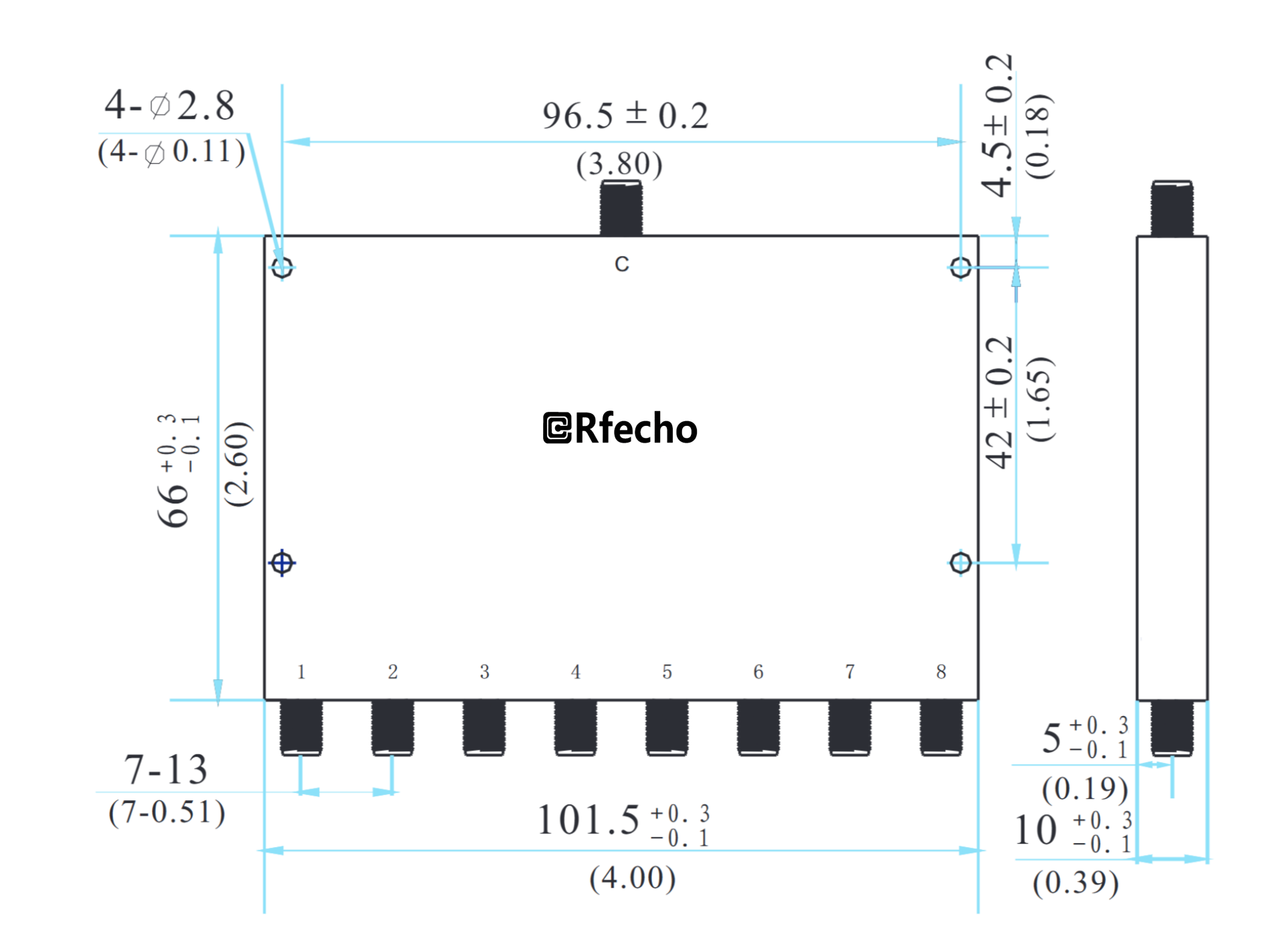

- Outline
- Reviews (0)
Description
The OPD-A0824 is a broadband 8-way power divider fromthe OPD-A series, featuring SMA female connectors and operating in the 4-18 GHz range. It is characterized by com-pact size, low insertion loss, and high isolation. This model iswidely used in electronic warfare, radar, and communicationsystems for reliable signal distribution.
OPD-A0824 |
|
|
4-18GHz Insertion Loss 2.50dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-18GHz |
|
Insertion Loss |
2.50dB |
|
Isolation |
15dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.60dB |
|
Phase Balance |
±10° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.8 |
|
Output VSWR |
1.5 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Covers 4-18GHz Frequency Range |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
Batch production control ensures high consistency |
|
|
Designed for 8-way microwave signal distribution and synthesis |
|
|
Suitable for communications, radar, navigation, and test systems |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
