4-8GHz Broadband 90-Degree Hybrid Coupler

Description

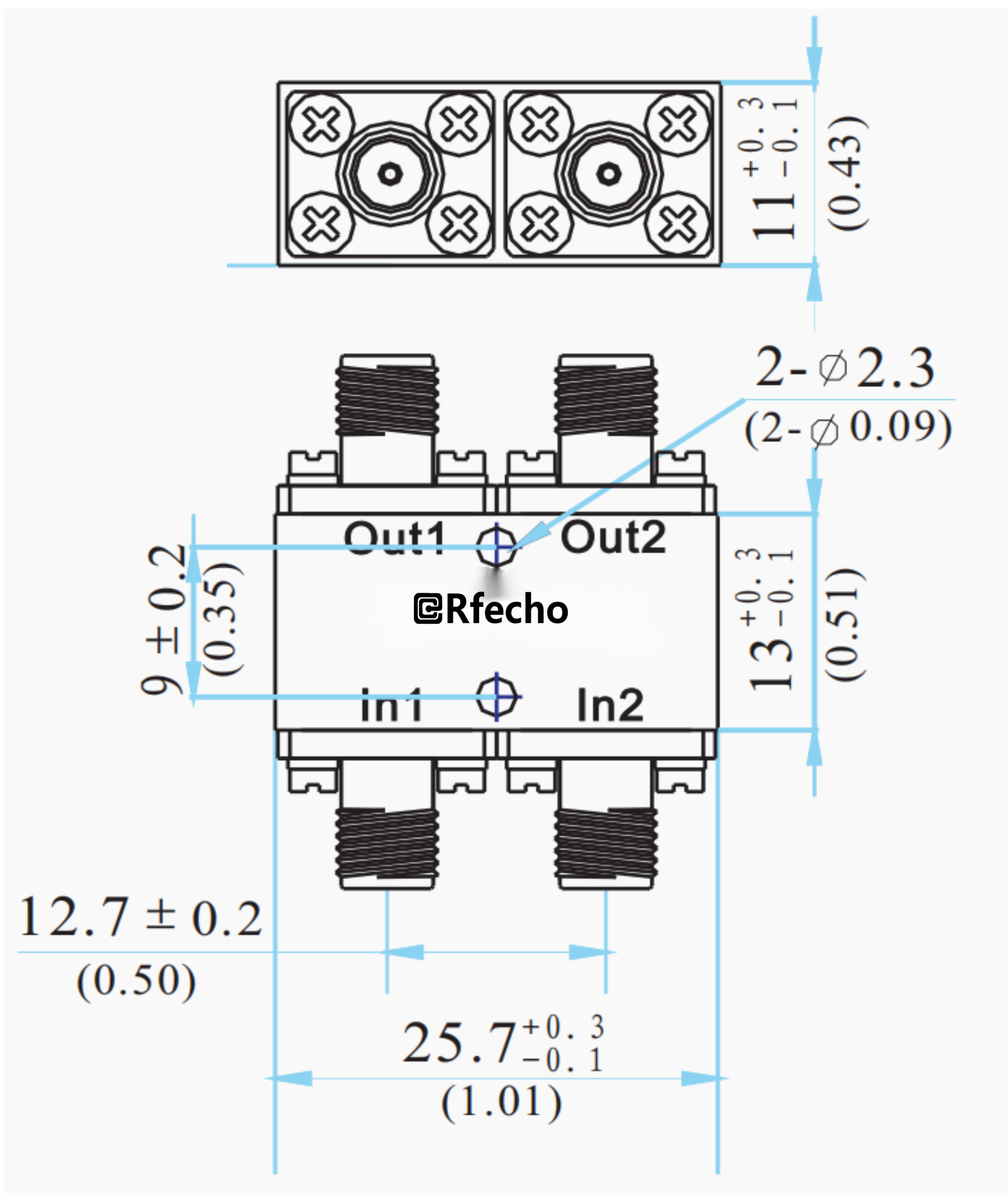

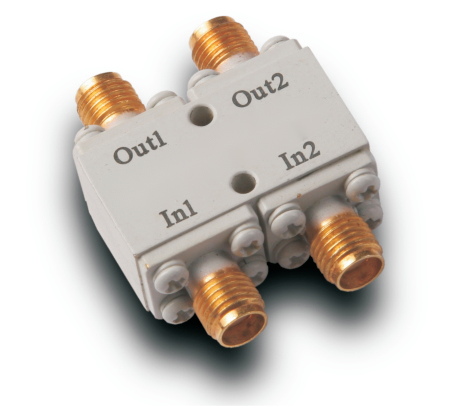

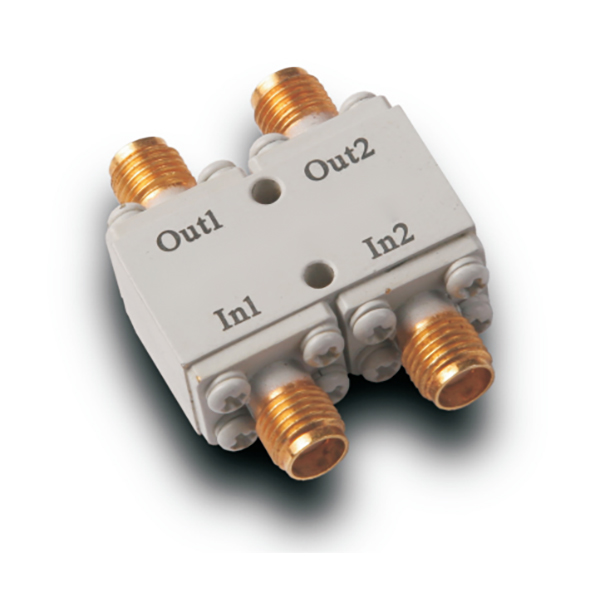

The OPD-A2 series of 90-degree hybrid couplers adopts astripline structure, featuring low insertion loss, high isolation,excellent amplitude and phase accuracy, and high power handling capacity. The OBG-A2033 broadband 90-degreehybrid coupler, a key model in this series, is optimized forthe 4-8GHz frequency range, with a maximum insertion lossof 0.35dB, a minimum isolation of 18dB, a maximum VSWRof 1.35, excellent amplitude balance of ±0.5dB, and precisephase balance of ±3°.Equipped with SMA-K connectors and a 50W high power handling capacity, the OBG-A2033 is engineered to with stand rigorous operating conditions. It supports aworking temperature range of -55~+85°C and a storage temperature range of -55~+100°C, fully complying with the stringent test items and requirements outlined in GJB-15091992.
