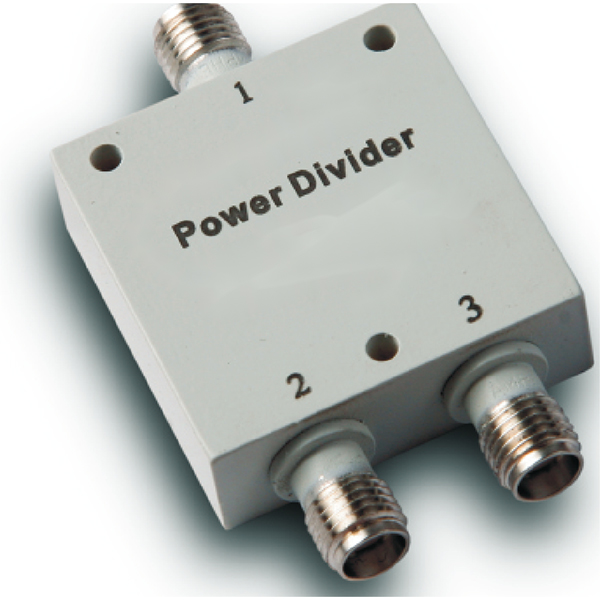

4-8GHz Insertion Loss 0.5dB SMA Connector 0° Power Divider
Frequency Range: 4-8GHz
Insertion Loss: 0.5dB
Isolation: 20dB
Input VSWR: 1.25
Output VSWR: 1.20
Amplitude Balance: ±0.3dB
Phase Balance: ±3°
Power Handling: 30W
SMA-Female Connectors
Wide Operating Temperature: -55 to +85°C
- Description
- Datasheet

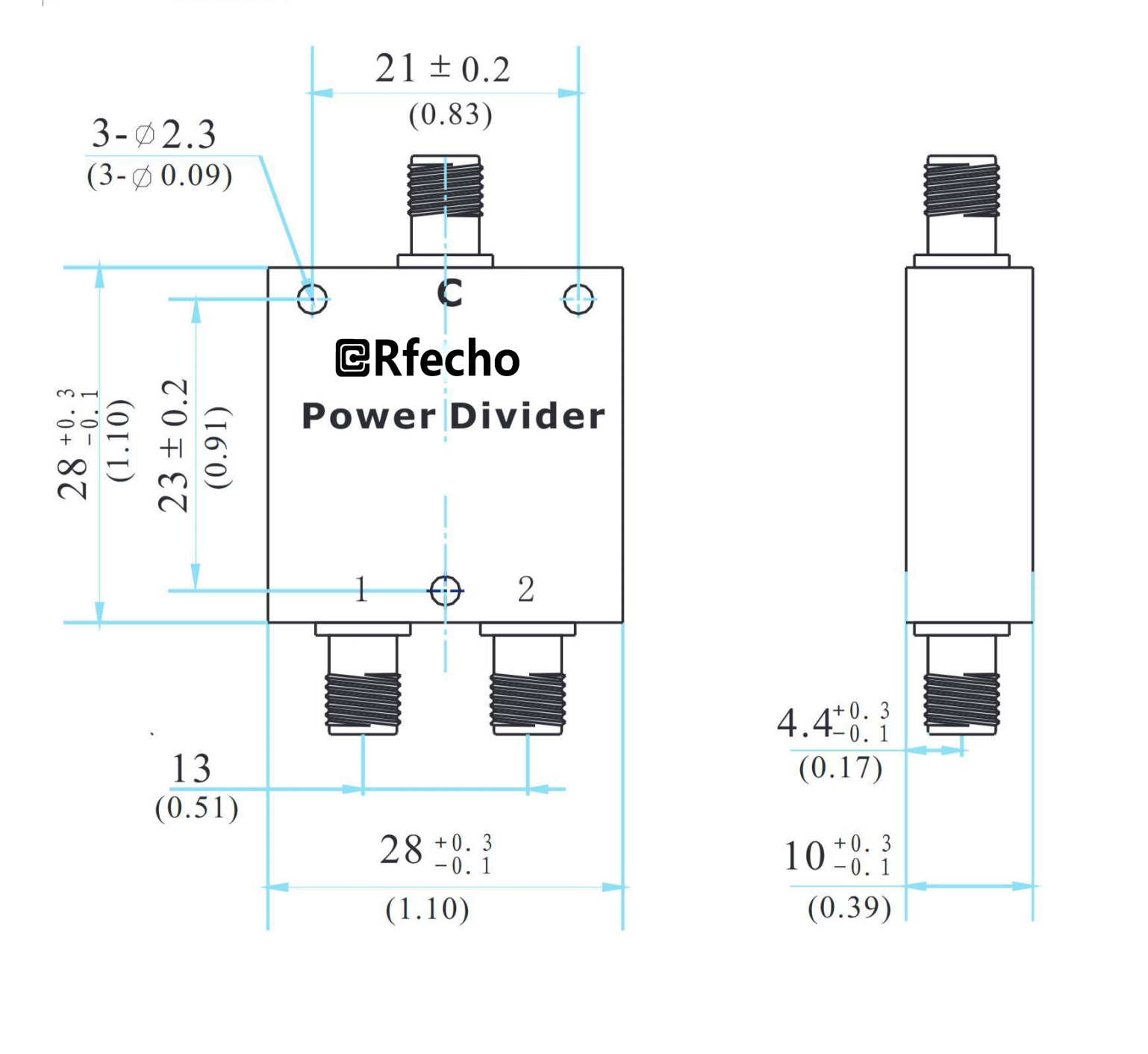

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0°power dividers, covering the full 0.5-18GHz series. They feature small size, low loss, low VSWR, and high isolation. Thisseries adopts mass production control methods, ensuringhigh product consistency and meeting large-scale supply requirements. The OPD-A0233 is mainly used in electronicwarfare, radar, navigation, testing, and communication systems for 2-way microwave signal distribution and combina-tion. This series consists of standardized products, but customized designs can be carried out according to user needs.
OPD-A0233 |
|
|
4-8GHz Insertion Loss 0.5dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-8GHz |
|
Insertion Loss |
0.5dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.3dB |
|
Phase Balance |
±3° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.25 |
|
Output VSWR |
1.2 |
|
Compliance |
Meets GJB-1509-1992 test requirements |
Features |
|
|
Frequency Range: 4-8GHz |
|
|
Insertion Loss: 0.5dB |
|
|
Isolation: 20dB |
|
|
Input VSWR: 1.25 |
|
|
Output VSWR: 1.20 |
|
|
Amplitude Balance: ±0.3dB |
|
|
Phase Balance: ±3° |
|
|
Power Handling: 30W |
|
|
SMA-Female Connectors |
|
|
Wide Operating Temperature: -55 to +85°C |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
