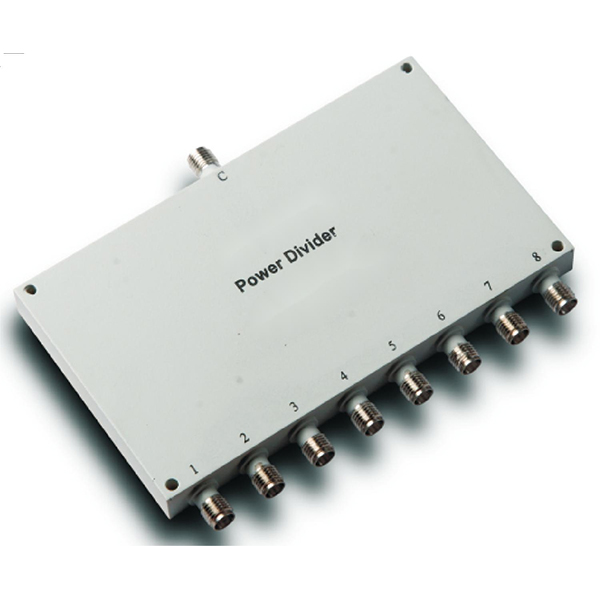

4-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Covers 0.5-18GHz frequency range
Small volume
Low insertion loss
Low VSWR
High isolation
High batch production consistency
Standardized product, customizable upon request
- Description
- Datasheet

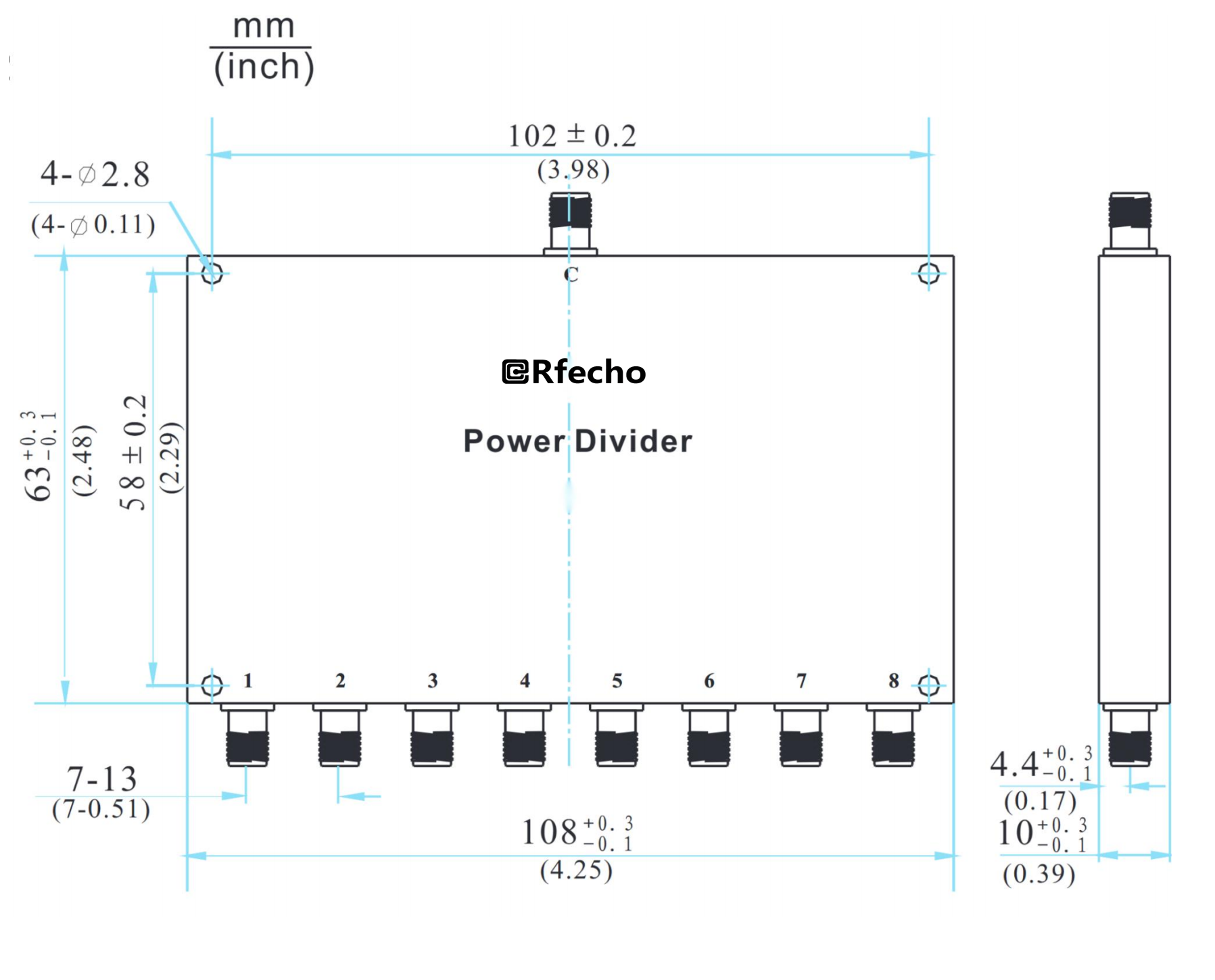

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers covering the full 0.5-18GHz range. They feature smallsize, low loss, low standing wave, high isolation, and highconsistency in batch production. The OPD-A0833 is mainlyused in electronic countermeasures, radar, navigation, testand measurement, and communication systems for 8-waymicrowave signal distribution and combination.
OPD-A0833 |
|
|
4-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
4-8GHz |
|
Insertion Loss |
1.20dB |
|
Isolation |
18dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±4° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.5 |
|
Output VSWR |
1.25 |
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Covers 0.5-18GHz frequency range |
|
|
Small volume |
|
|
Low insertion loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
High batch production consistency |
|
|
Standardized product, customizable upon request |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
