44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

Ultra high gain ACTIVE directional antenna. Wide frequency range from 0.4 GHz to 2.5 GHz. This antenna offers the nominal gain of 44 dBi and the connection type is SMA (F) or N. Optional laser, compass etc. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality gold coating, a high-tech antenna-case (radome)which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector (18 GHz version) with twist protection. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD).

This offers the ability to make a very accurate measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all antennas.

Description

SPEC

Active Directional Antenna -A (f 380 MHz)

44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

OLP-425-A

Ultra high gain ACTIVE directional antenna. Wide frequency range from 0.4 GHz to 2.5 GHz. This antenna offers the nominal gain of 44 dBi and the connection type is SMA (F) or N. Optional laser, compass etc. Every antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality gold coating, a high-tech antenna-case (radome)which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector (18 GHz version) with twist protection. All antennas include a complete high resolution (10 MHz steps!) calibration data set with up to 533 calibration points (on CD).

This offers the ability to make a very accurate measurement with any Spectrum Analyzer. All antennas are developed, individually produced and calibrated. This guarantees highest standard so that we can offer every customer a full 10 years warranty for all antennas.

Property

Value

Min. Frequency (GHz)

0.4

Max. Frequency (GHz)

2.5

Gain(dBi)

44

Impedance (?)

50

VSWR (Typ.)

<1:2

Connection Type

SMA (F) or N

Tripod Connection (in.)

1/4

Features

Ultra high gain for detecting even lowest RF sources

Integrated Low Noise Preamplifier incl. LiPo battery

Runs with battery or external power supply (included)

Integrated calibration data on EEprom (readout via USB)

Special designed radome for perfect antenna protection

Gold coatingfor stable performance? Wide bandwidth

Coverage of various mobile radio frequency ranges

Applications

ISM434, LTE800, ISM868, GSM900, GSM1800, GSM1900

UMTS?Universal Mobile Telecommunications System?

DECT?Digital Enhanced Cordless Telecommunications?

Bluetooth? WiFi?WLAN?Microwave, LTE2.6, WiMAX, 5GHz WLAN

PDF

Outline

Plot

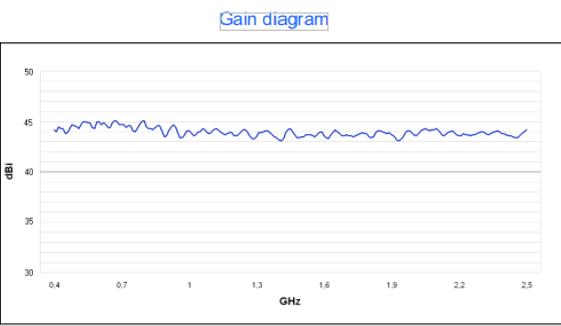

OLP 425 A plot1 44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)OLP 425 A plot2 44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)OLP 425 A plot3 44 dBi Gain with Amplifier, 0.4 GHz to 2.5 GHz, Active Directional Antenna -A (f 380 MHz)

Additional information

Min. Frequency (GHz)

0.4

Max. Frequency (GHz)

2.5

Gain (dBi)

44

Connection Type

Impedance (Ω)

Net Weight (Kg)
