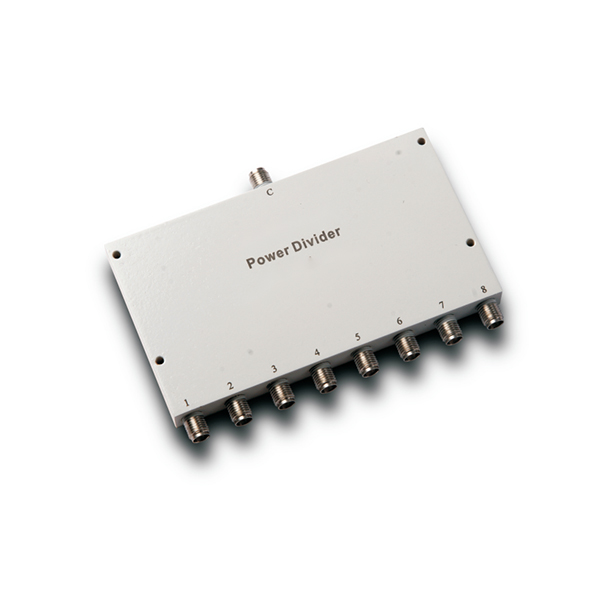

6-18GHz Insertion Loss 2.10dB SMA Connector 0° Power Divider
SMA connector 0-degree power divider
Full series coverage 0.5-18GHz
Small size, low loss, low VSWR, high isolation
Batch production control ensuring high consistency
Designed for 8-way microwave signal distribution and combination
high isolation. The series employs batch production control methods, ensuring high product quality consistency to
meet large-volume delivery requirements. The OPD-A0834
is mainly used in electronic warfare, radar, test and measurement, and satellite communication systems for the dis-
tribution and combination of 8-way microwave signals.
- Description
- Datasheet

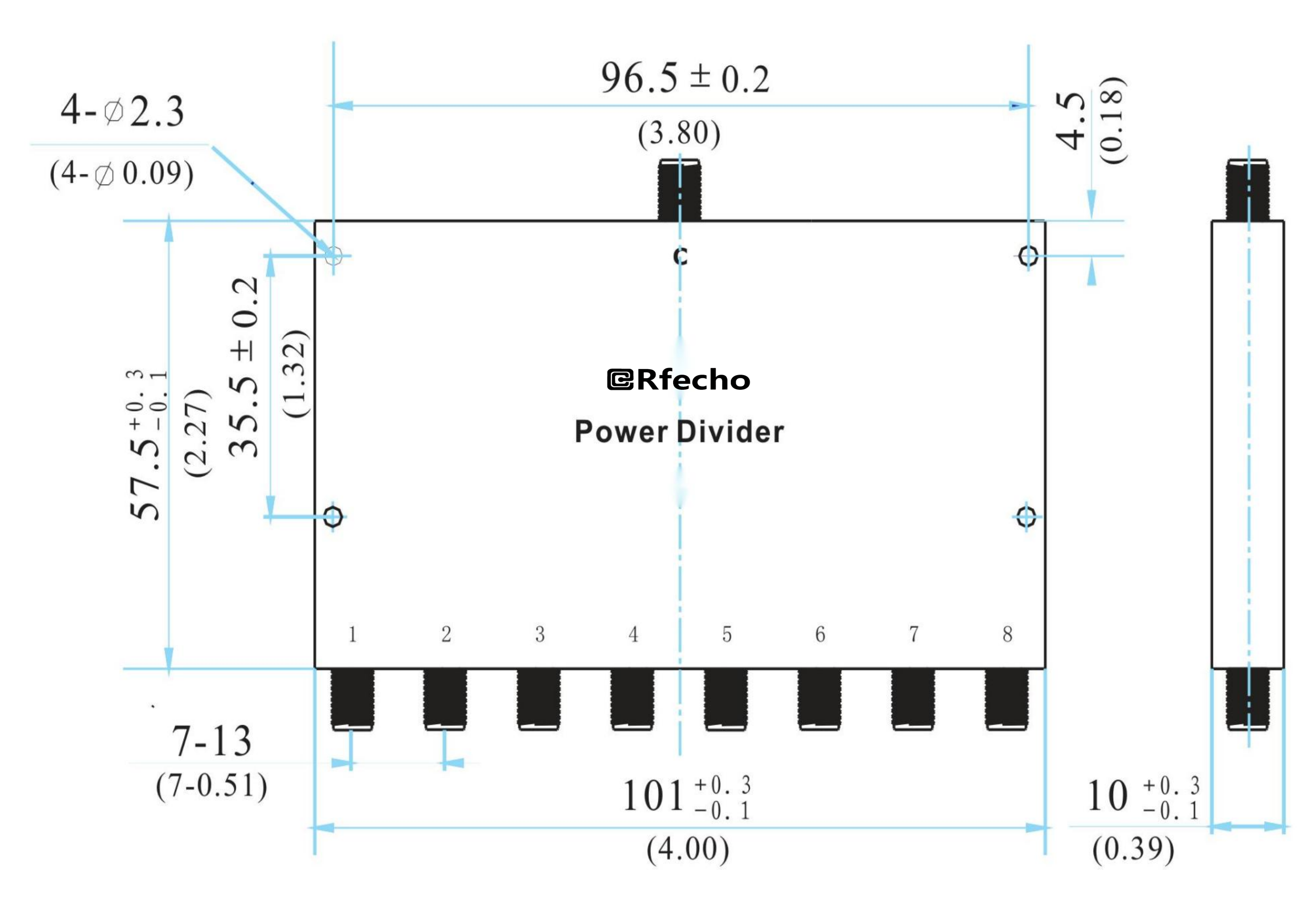

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0-degree power dividers, with the full series covering 0.5-18GHz.
OPD-A0834 |
|
|
6-18GHz Insertion Loss 2.10dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
6-18GHz |
|
Insertion Loss |
2.10dB |
|
Isolation |
17dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.80dB |
|
Phase Balance |
±10° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.8 |
|
Output VSWR |
1.5 |
|
Compliance |
Meets GJB-1509-1992 test requirements |
Features |
|
|
SMA connector 0-degree power divider |
|
|
Full series coverage 0.5-18GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
Batch production control ensuring high consistency |
|
|
Designed for 8-way microwave signal distribution and combination |
|
|
high isolation. The series employs batch production control methods, ensuring high product quality consistency to |
|
|
meet large-volume delivery requirements. The OPD-A0834 |
|
|
is mainly used in electronic warfare, radar, test and measurement, and satellite communication systems for the dis- |
|
|
tribution and combination of 8-way microwave signals. |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
