6.5 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Probe Antenna
$550
Frequcncy: 90-140GHz
Gain: 6.5dBi.
VSWR: 2：1Typ.
High Return Loss
Circular Waveguide
Precisely Machined and Gold Plated
OPRO-08 Waveguide Probe Antenna supports linear polarized waveforms
- Description
- Datasheet

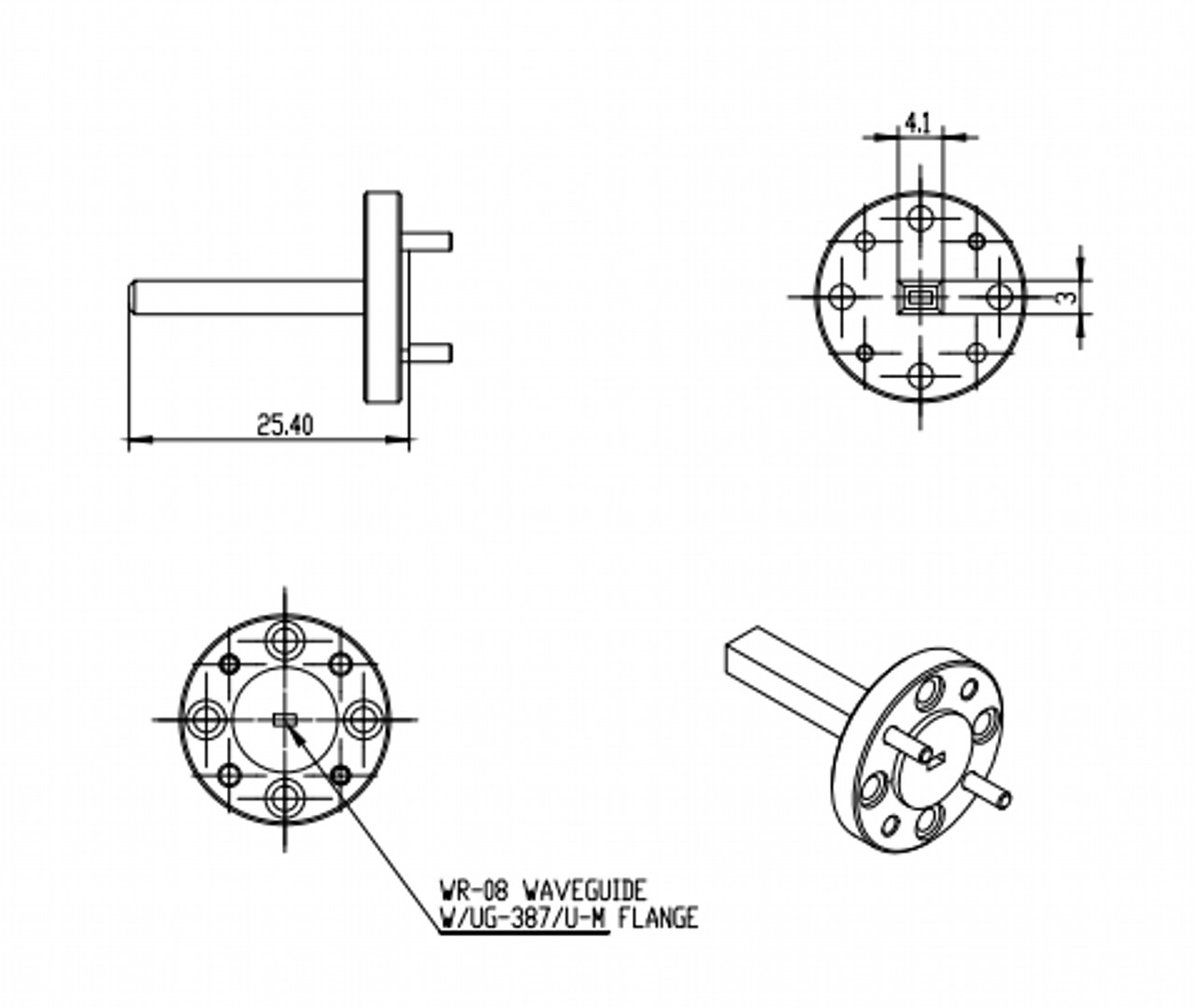

- Outline
- Plot
- Reviews (0)
Description
|
Probe Antenna |
|
|
6.5 dBi Gain, 90 GHz to 140 GHz, WR-08 Waveguide Probe Antenna |
|
|
OPRO-08 |
|
|
Model OPRO-08 is a F Band Probe Antenna, operates from 90 GHz to 140 GHz. The antenna offers the nominal gain of 6.5 dBi, and 115 degrees typical half power beamwidth on the E-plane and 60 degrees typical halfpower beamwidth on the H-plane. Probe Antenna supports linear polarized waveforms. The input of this antenna is a WR-08 waveguide. Probe antenna offers the -10 dB on E-plan side lobes and -14 dB on H-plan side lobes. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
90 |
|
Max. Frequency (GHz) |
140 |
|
Gain(dBi) |
6.5 |
|
Waveguide |
WR-08 |
|
Polarization |
Linear |
|
HPBW 3 dB Beamwidth (E-Plane) |
115 |
|
HPBW 3 dB Beamwidth (H-Plane) |
60 |
|
Side Lobes, E-Plane (dB) |
-10 |
|
Side Lobes, H-Plane (dB) |
-14 |
|
VSWR |
2:1 |
|
Band Type |
F Band |
|
Features |
|
|
Circular Waveguide Interface |
|
|
Precisely Machined and Gold Plated |
|
|
High Return Loss |
|
|
Linear Polarization |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Feed Horns |
|
|
System Setups |
|
