70–81 GHz Four-Channel Receiver IC – MH714W
LO input frequency: 17.5 to 20.25 GHz
Noise figure: 10 dB typ.
Minimum gain: 30 dB typ.
Gain control range: 33 dB typ.
Supply voltage: 1.1 V, 3.3 V
Four integrated receive channels
12-bit ADC
- Description
- Datasheet
- Functional Block Diagram
Description
The MH714W is a four-channel receiver IC covering 70–81 GHz. It integrates four receive front-ends, analog baseband circuitry, ADCs, an LVDS interface, an on-chip temperature sensor, fault monitoring and SPI control. Four channels receive, digitize and transfer signals simultaneously. SPI controls operating state and channel switching; LVDS carries the ADC data.
Applications: Millimeter-wave security screening, traffic radar, industrial monitoring and fire safety.
Product status: Production.
Four-Channel Receiver IC Specifications | |
| 70–81 GHz | |
| MH714W | |
Index | Value |
| RX input frequency | 70 to 81 GHz |
| LO input frequency | 17.5 to 20.25 GHz |
| Noise figure | 10 dB typ.; At 30 dB gain |
| Input 1 dB compression point | -24 dBm typ.; At minimum gain |
| Minimum gain | 30 dB typ. |
| Gain control range | 33 dB typ. |
| IF bandwidth | 0.5 to 30 MHz |
| LO input power | −12 dBm typ. |
| RX gain variation with frequency | −1.5 to +1.5 dB |
| RX gain variation with temperature | −1.5 to +1.5 dB |
| Channel-to-channel gain variation | −1.5 to +1.5 dB |
| Channel-to-channel phase variation | −7 to +7 ° |
| Channel isolation | 30 dB typ. |
| Power-down recovery time | — / 150 / 200 ns (min. / typ. / max.) |
| Number of RX channels | 4 typ. |
| Gain step | 3 dB typ. |
| Supply voltage | 1.1 V, 3.3 V |
| Package / dimensions | BGA, 5.55 × 5.55 mm, 0.5 mm pitch |
Features | |
| Four integrated receive channels | |
| 12-bit ADC | |
| SPI control and LVDS data interfaces | |
| Integrated temperature sensor and fault monitoring | |
| Power consumption: 1300 mW, four channels, continuous wave | |
| LVDS data rate: 600 Mbps at stated power | |
HPF cutoff frequencies: 0.5, 5.25, 11.5, 14 and 19 MHz.
LPF cutoff frequencies: 7.25, 13.5, 16, 21 and 30 MHz.
Application Scenarios

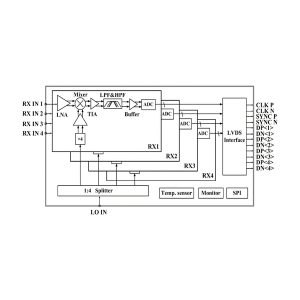

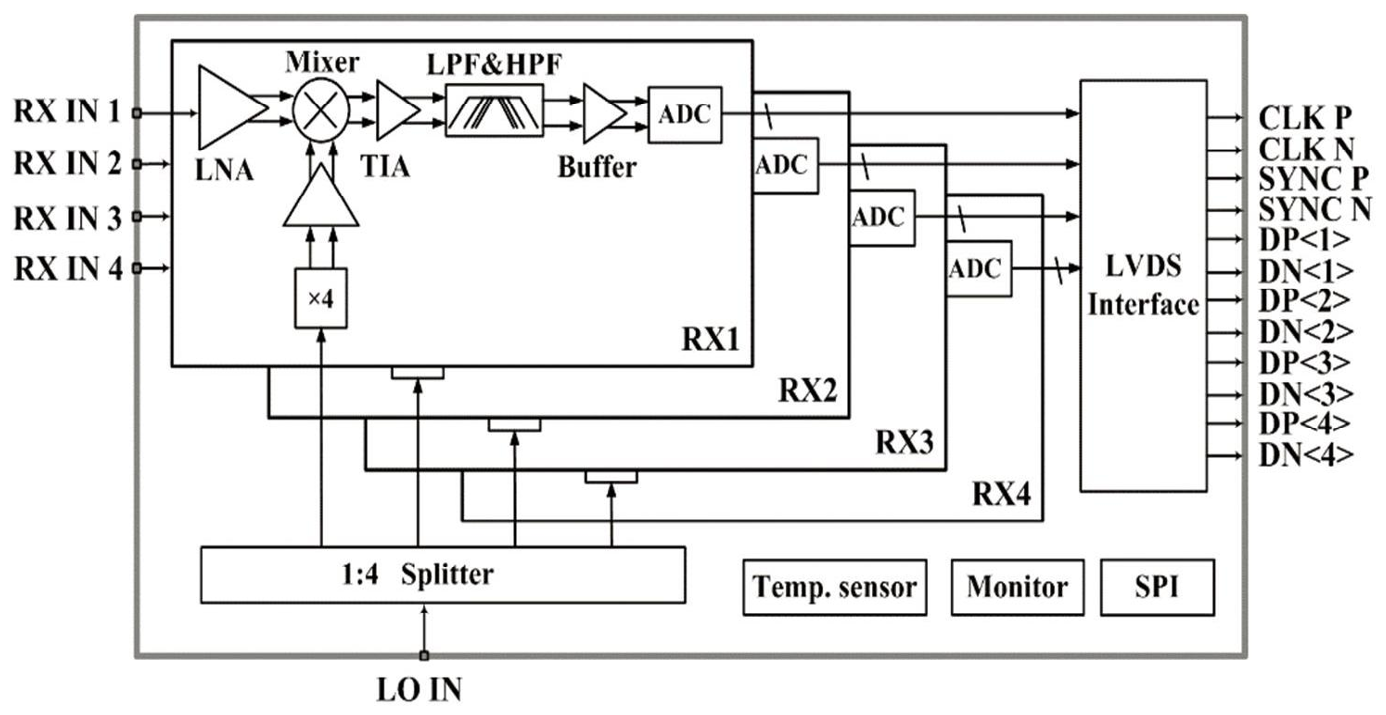

Functional Block Diagram
