8-18GHz Insertion Loss 2.50dB SMA Connector 0° Power Divider

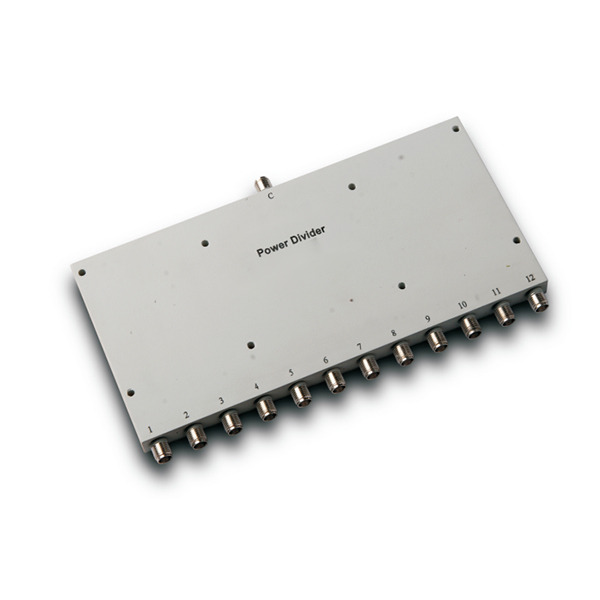

SMA connector 0° power divider
Frequency coverage: 0.5-18GHz (Full Series), this model 8-18GHz
Small size, low loss, low VSWR, high isolation
Mass production control consistent quality
Applications: Electronic warfare, radar, test and measurement, satellite communications
Used for distribution and synthesis of 12-way microwave signals
Standardized product, customizable options available
- Description
- Datasheet

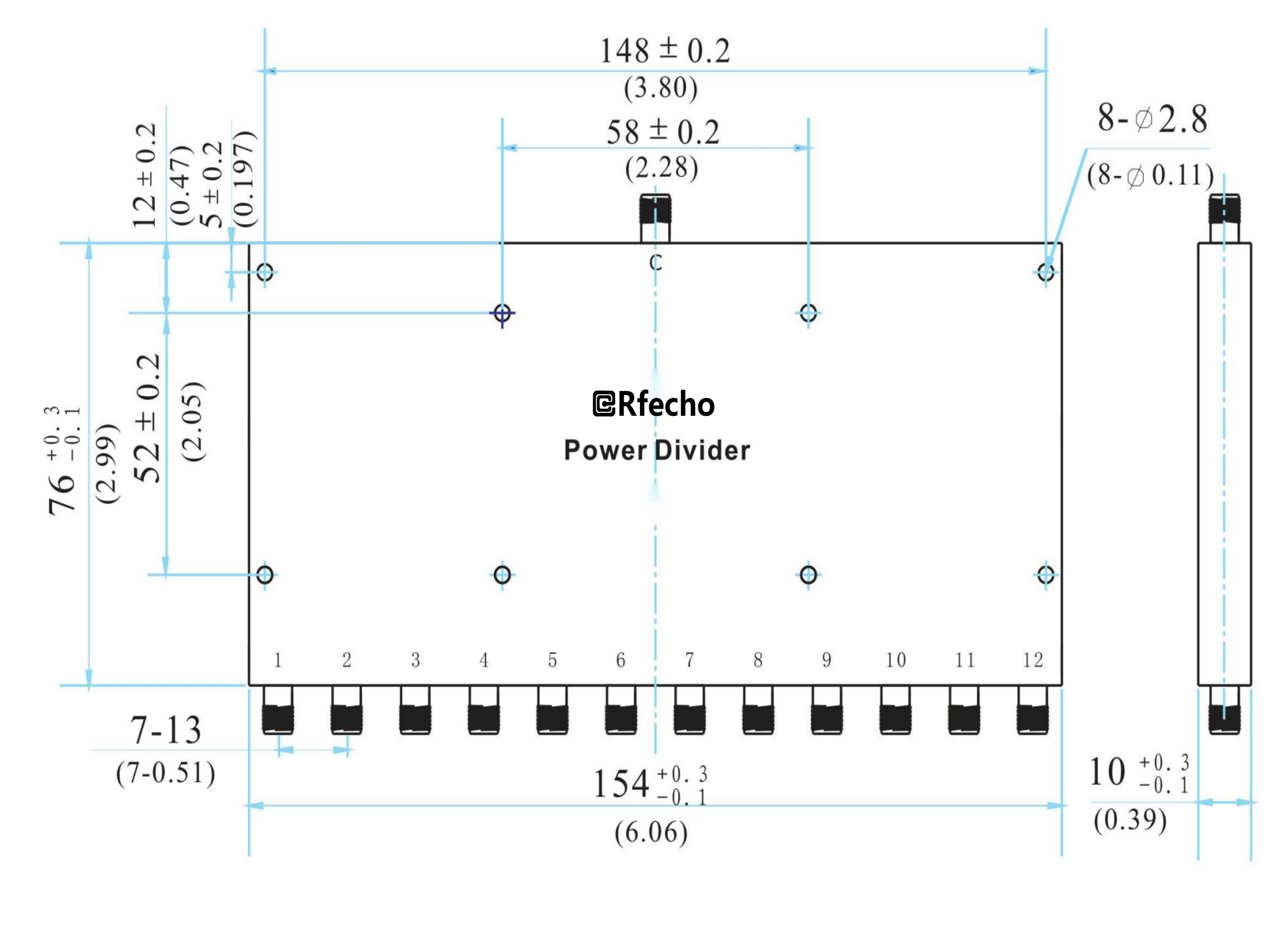

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0°power dividers covering 0.5-18GHz. They feature small size,low loss, low VSWR, and high isolation. This series usesmass production control methods ensuring consistent product quality capable of meeting large volume supply require-ments. The OPD-A1234 is primarily used in electronic warfare, radar, test and measurement, and satellite communica-tion systems for the distribution and combination of 12-waymicrowave signals.
OPD-A1234 |
|
|
8-18GHz Insertion Loss 2.50dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
8-18GHz |
|
Insertion Loss |
2.50dB |
|
Isolation |
14dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±1.00dB |
|
Phase Balance |
±10° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.8 |
|
Output VSWR |
1.5 |
|
Compliance |
Compliant with ‘GJB-1509-1992’ test items and requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Frequency coverage: 0.5-18GHz (Full Series), this model 8-18GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
Mass production control consistent quality |
|
|
Applications: Electronic warfare, radar, test and measurement, satellite communications |
|
|
Used for distribution and synthesis of 12-way microwave signals |
|
|
Standardized product, customizable options available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
