8.20 GHz to 12.5 GHz, 0.3 dB Insertion Loss, 20 dB Isolation, WR90 High Power Series Isolator-BH100-60B
High Power Series isolator with 8.20-12.5 GHz frequency range, 0.3 dB insertion loss, 20 dB isolation
- Description
- Datasheet
- Reviews (0)
Description

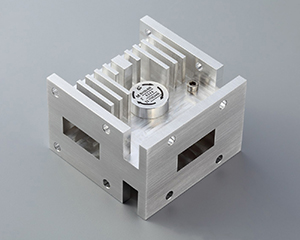

The BH100-60B is a high-performance high power series designed for RF and microwave applications. It operates in the frequency range of 8.20-12.5 GHz with 0.3 dB maximum insertion loss and 20 dB minimum isolation.
BH100-60B |
|
|
8.20 GHz to 12.5 GHz, 0.3 dB Insertion Loss, 20 dB Isolation, WR90 High Power Series Isolator-BH100-60B |
|
Property |
Value |
|
Frequency (GHz) |
8.20-12.5 |
|
Bandwidth |
10% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
1.2 |
|
IMD3 (dBc) |
|
|
Power (W) |
3000(10%) |
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
WR90 |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
connectorized |
Features |
|
|
Frequency Range: 8.20-12.5 GHz |
|
|
Insertion Loss: 0.3 dB Max |
|
|
Isolation: 20 dB Min |
|
|
VSWR: 1.2 Max |
|
|
Power: 3000(10%) W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
