Absorptive Coaxial SP12T Switch from 12GHz to 18GHz .OSA1212001800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 12GHz to 18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA1212001800A Categories: Active Device, SP12T, Switch

Description



PDF

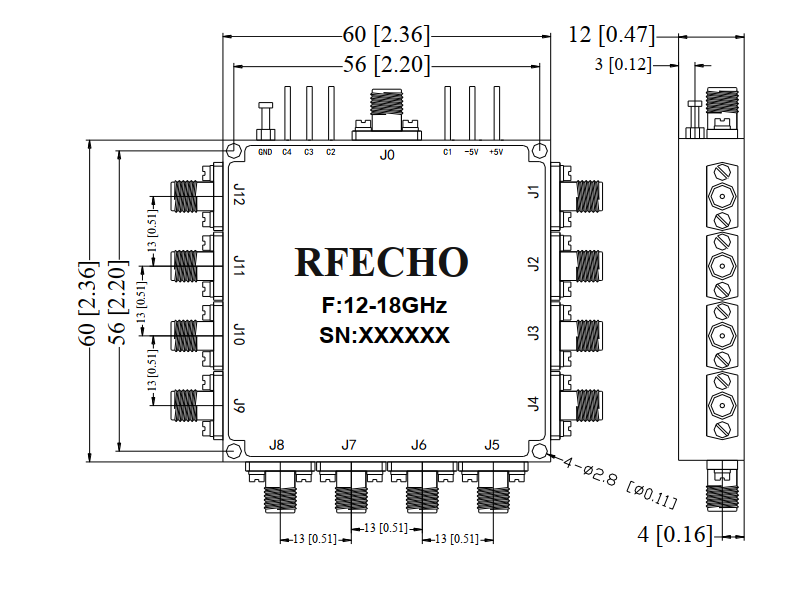

Outline



text





Additional information

Min. Frequency (GHz)

12

Max. Frequency (GHz)

18

VSWR (Max.)

2

Switch Type

SP12T

RF Input Power (W)

1

Insertion Loss (dB)

4.5
