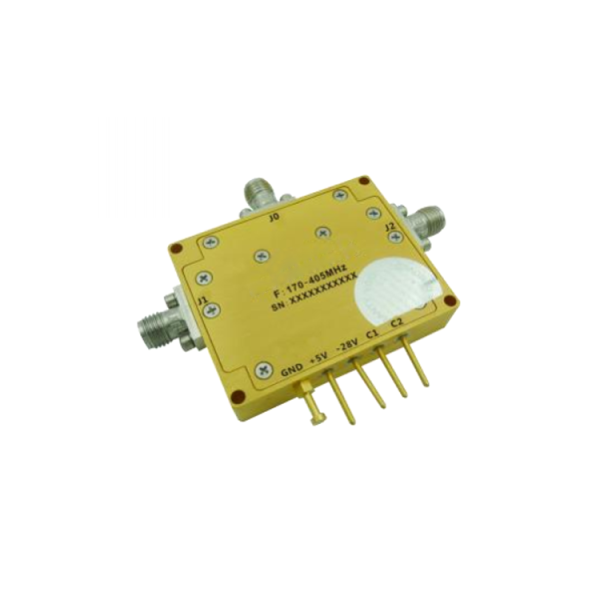

Absorptive Coaxial SP2T Switch from 0.17GHz to 0.405GHz .OSR0200170040B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.17GHz to 0.405GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0200170040B Categories: Active Device, Routing, SP2T, Switch

Description



PDF

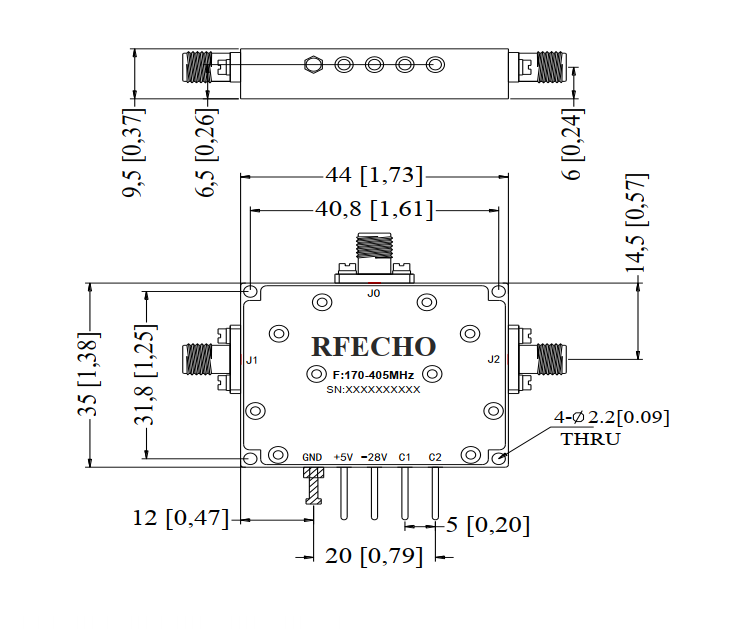

Outline



text





Additional information

Min. Frequency (GHz)

0.17

Max. Frequency (GHz)

0.405

VSWR (Max.)

1.4

Switch Type

SP2T

RF Input Power (W)

100

Insertion Loss (dB)

0.5
