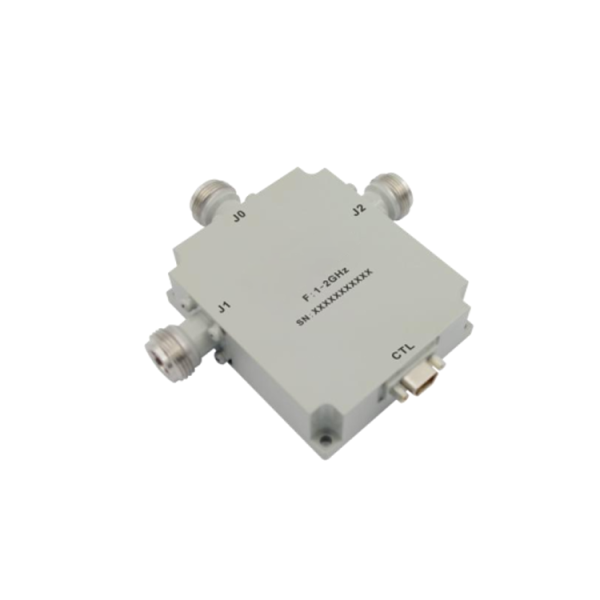

Absorptive Coaxial SP2T Switch from 1GHz to 2GHz.OSR0201000200B

HOT

Absorptive Coaxial SP2T Switch from 1GHz to 2GHz.OSR0201000200B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 1GHz to 2GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0201000200B Categories: Active Device, Routing, SP2T, Switch

Description



PDF

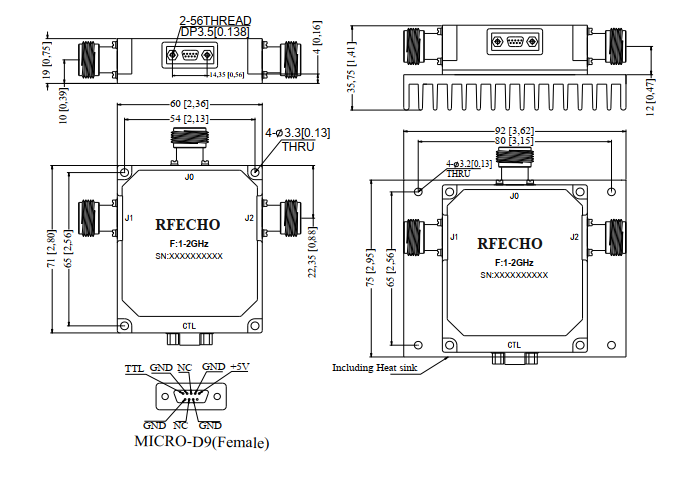

Outline



text





Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

2

VSWR (Max.)

1.5

Switch Type

SP2T

RF Input Power (W)

70

Insertion Loss (dB)

1.5
