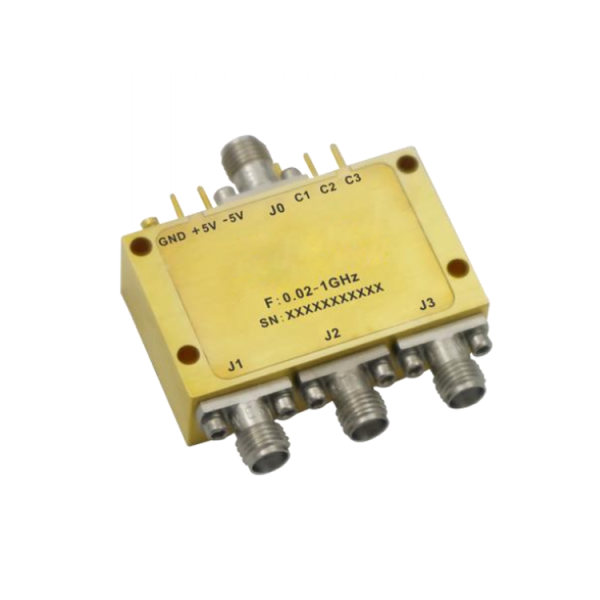

Absorptive Coaxial SP3T Switch from 0.02GHz to 1GHz .OSA0300020100A

HOT

Absorptive Coaxial SP3T Switch from 0.02GHz to 1GHz .OSA0300020100A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.02GHz to 1GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0300020100A Categories: Active Device, SP3T, Switch

Description



PDF

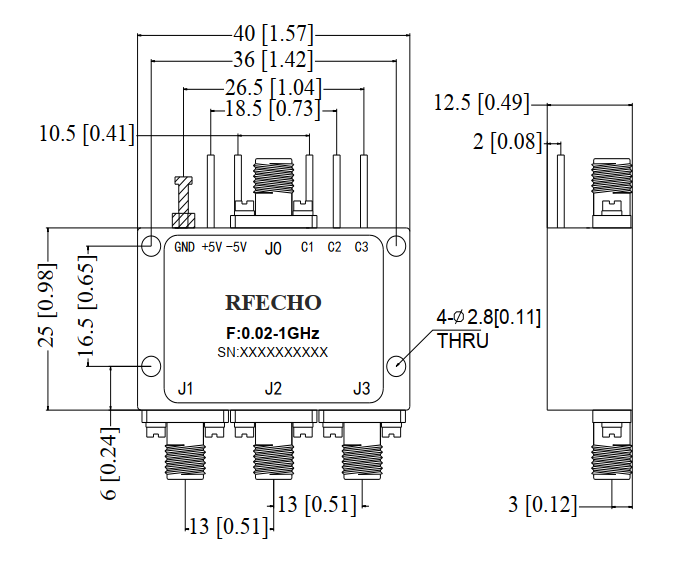

Outline



text





Additional information

Min. Frequency (GHz)

0.02

Max. Frequency (GHz)

1

VSWR (Max.)

1.5

Switch Type

SP3T

RF Input Power (W)

0.6

Insertion Loss (dB)

1.6
