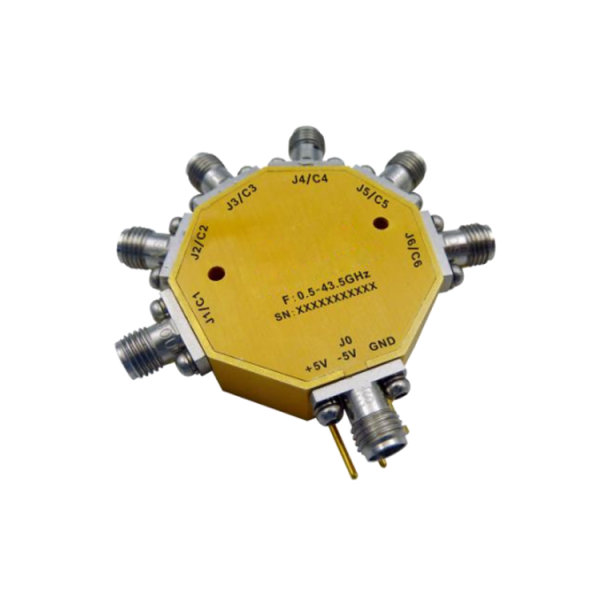

Absorptive Coaxial SP6T Switch from 0.5GHz to 43.5GHz .OSA0600504350A

HOT

Absorptive Coaxial SP6T Switch from 0.5GHz to 43.5GHz .OSA0600504350A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 43.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0600504350A Categories: Active Device, SP6T, Switch

Description



PDF

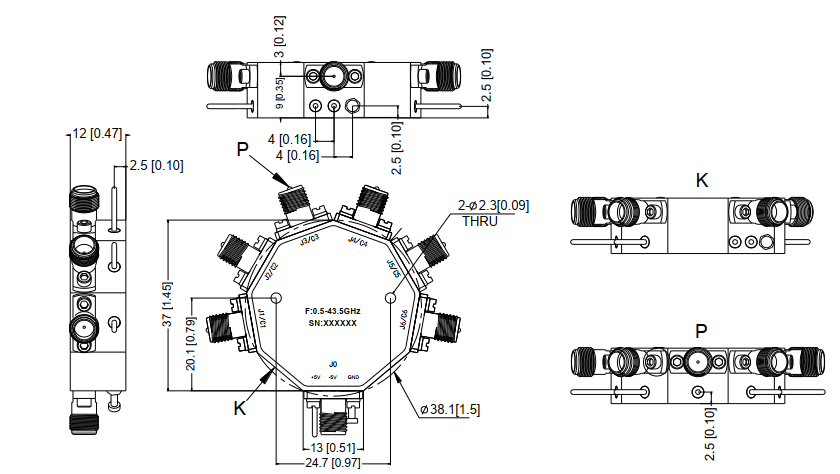

Outline

text









Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

43.5

VSWR (Max.)

2.5

Switch Type

SP6T

RF Input Power (W)

0.2

Insertion Loss (dB)

8.5
