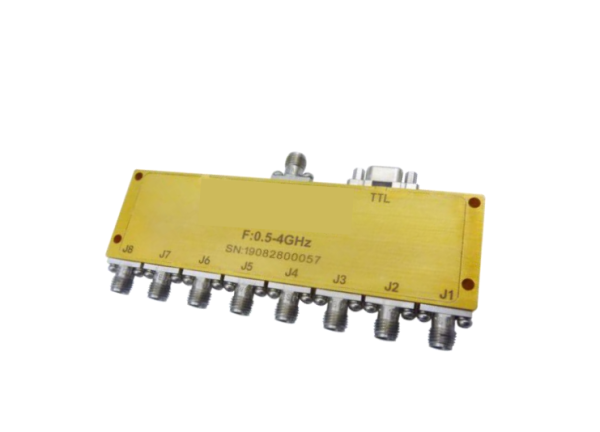

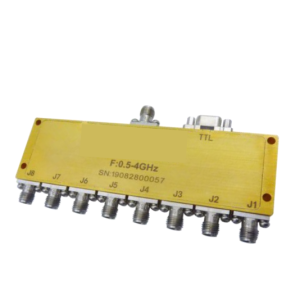

Absorptive Coaxial SP8T Switch from 0.5GHz to 4GHz .OSA0800500400A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 4GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0800500400A Categories: Active Device, SP8T, Switch

Description



PDF

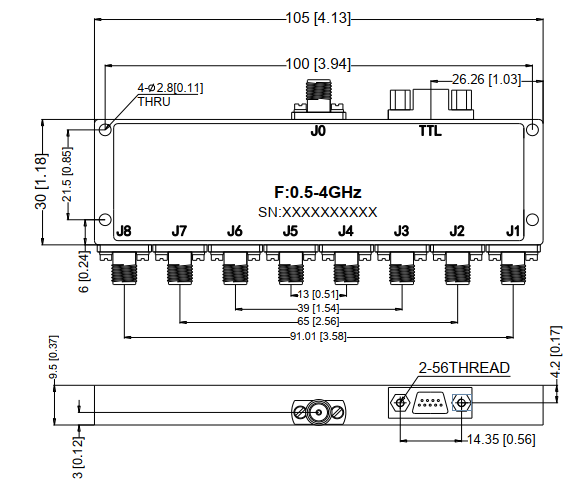

Outline

text







Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

4

VSWR (Max.)

1.5

Switch Type

SP8T

RF Input Power (W)

1

Insertion Loss (dB)

2
