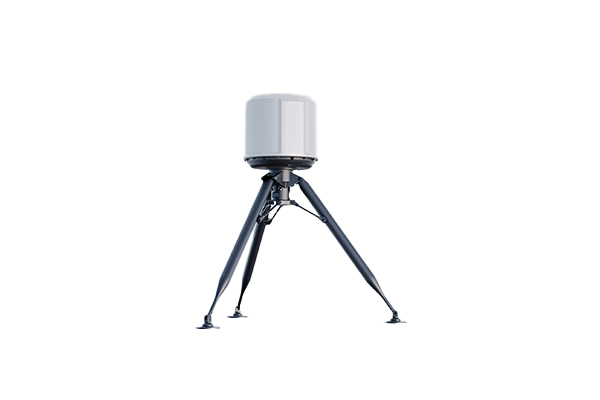

Array Multi-directional Decoy Defense System
Passive detection and early warning for mainstream consumer UAVs like DJI, Parrot, and Hubsan.
Dual operation modes: automatic (unmanned) and semi-automatic (manual control).
Global no-fly zone protection preventing UAV takeoffs and entries in defined areas.
Directional expulsion capability forces detected UAVs to fly away in a specific direction.
Sectorized defense allows for independent control of different protection zones.
Minimized environmental interference due to targeted multi-directional design.
Supports integration with external radar and optoelectronic detection systems.
High durability with IP65 protection for outdoor use.
- Description
- Datasheet
- Reviews (0)
Description
The Array Multi-directional Decoy Defense System integrates advanced radio detection and UAV navigation decoy technology. This system passively detects UAV link transmissions and interferes with the navigation host, providing early warning and approximate location tracking. It features innovative multi-sector defense capabilities, including no-fly zone enforcement, directional expulsion, and full-area protection. Designed to minimize environmental interference, it can also be integrated with external radar or optoelectronic sensors for high-precision regional guidance. It is a robust solution for ensuring security in restricted airspaces by preventing unauthorized drone entry or takeoffs.
OC-Array-MDS |
|
|
Array Multi-directional Decoy Defense System |
|
Property |
Value |
|
Power Supply |
220V/50Hz |
|
Operating Temperature |
-35°C to +60°C |
|
Transmit Power |
≤ 20mW |
|
Detection Distance |
≥ 1500m (unobstructed) |
|
Operating Frequency |
B1, L1, R1 triple band (independently controllable, others customizable) |
|
Power Consumption |
≤ 140W |
|
Signal Access Time |
≤ 3s |
|
Directional Expulsion Distance |
≥ 1500m (unobstructed) |
|
No-fly Defense Distance |
≥ 500m (unobstructed) |
|
External Interface |
RJ45 |
|
Protection Level |
IP65 |
Features |
|
|
Passive detection and early warning for mainstream consumer UAVs like DJI, Parrot, and Hubsan. |
|
|
Dual operation modes: automatic (unmanned) and semi-automatic (manual control). |
|
|
Global no-fly zone protection preventing UAV takeoffs and entries in defined areas. |
|
|
Directional expulsion capability forces detected UAVs to fly away in a specific direction. |
|
|
Sectorized defense allows for independent control of different protection zones. |
|
|
Minimized environmental interference due to targeted multi-directional design. |
|
|
Supports integration with external radar and optoelectronic detection systems. |
|
|
High durability with IP65 protection for outdoor use. |
|
Applications |
|
|
Designed to minimize environmental interference, it can also be integrated with external radar or optoelectronic sensors for high-precision regional guidance. It is a robust solution for ensuring security in restricted airspaces by preventing unauthorized drone entry or takeoffs. |
|
