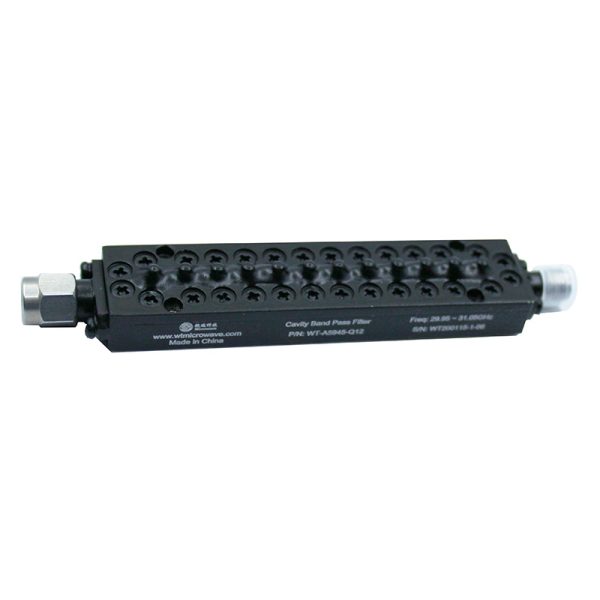

Band Pass Filter From 1100MHz(29.95~31.05GHz) OBP-30500-1100 With 2.92mm(K)-Female Connectors
$398
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-30500-1100, it’s Center Frequency (FO) is 30.5GHz, it’s Pass Band Bandwidth is 1100MHz(29.95~31.05GHz), it’s Pass Band Insertion Loss is ≤1.9dB, Pass Band Return Loss is >18dB, Pass Band VSWR is ≤1.28:1, and the Stop Band frequency is ≥85dB@0.1~29.05GHz≥80dB@32~48GHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

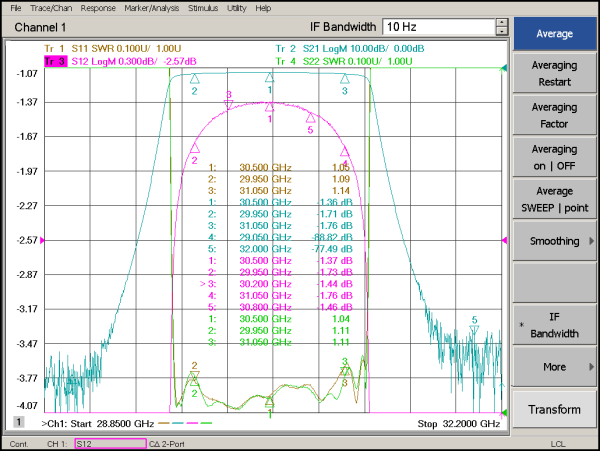

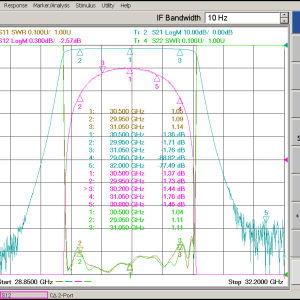

The product name of this Ocean band-pass filter (OBP) is OBP-30500-1100, it’s Center Frequency (FO) is 30.5GHz, it’s Pass Band Bandwidth is 1100MHz(29.95~31.05GHz), it’s Pass Band Insertion Loss is ≤1.9dB, Pass Band Return Loss is >18dB, Pass Band VSWR is ≤1.28:1, and the Stop Band frequency is ≥85dB@0.1~29.05GHz≥80dB@32~48GHz.
?
Band Pass Filter Datasheet (Click to download)
Additional information
| Weight | 0.5 kg |
|---|---|

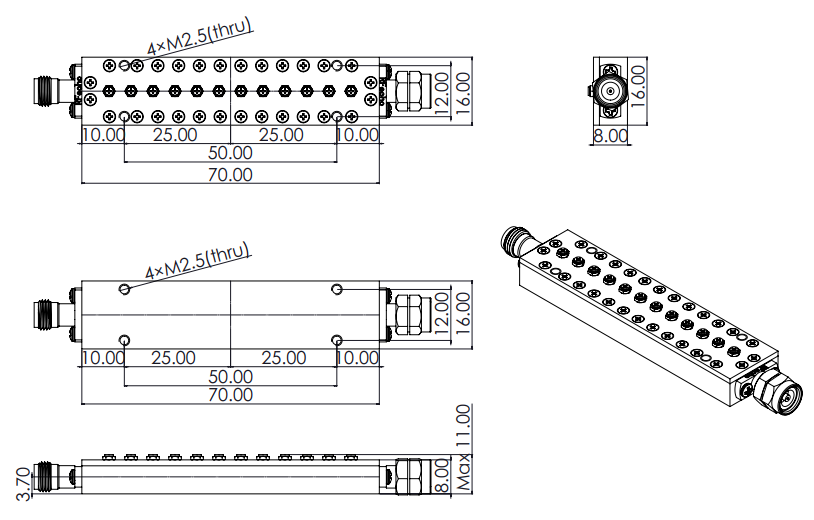

| Dimensions | 26 × 11.5 × 14.5 cm |
| Center Frequency (F0) (MHz) | |
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
Reviews
There are no reviews yet.
