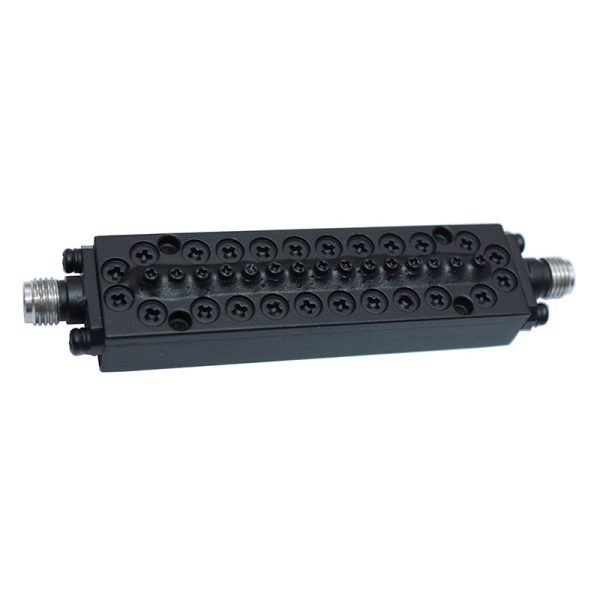

Band Pass Filter From 17~22GHz OBP-19500-5000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

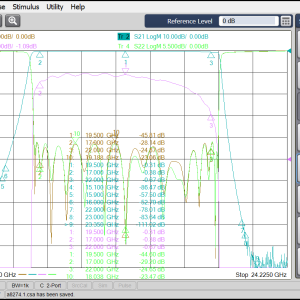

The product name of this Ocean band-pass filter (OBP) is OBP-19500-5000, its Center Frequency(F0) is 19.5GHz, its Pass Band Bandwidth is 17~22GHz ,its Pass Band Insertion Loss is ≤0.9dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~15.1GHz≥50dB @15.1~15.9GHz≥45dB @15.9~16GHz ≥50dB @22.9~23GHz≥55dB @23~23.35GHz≥80dB @23.35~35GHz.

Availability: Available on backorder SKU: OBP-19500-5000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-19500-5000, its Center Frequency(F0) is 19.5GHz, its Pass Band Bandwidth is 17~22GHz ,its Pass Band Insertion Loss is ≤0.9dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~15.1GHz≥50dB @15.1~15.9GHz≥45dB @15.9~16GHz ≥50dB @22.9~23GHz≥55dB @23~23.35GHz≥80dB @23.35~35GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

19500

Min. Pass Band Frequency (MHz)

17000

Max. Pass Band Frequency (MHz)

22000

Pass Band Insertion Loss (dB)

≤0.9dB ≤0.45dB ≥18dB

Stop Band Rejection

≥80dB @ DC ~ 15.1GHz ≥50dB @ 15.1 ~ 15.9GHz ≥45dB @ 15.9 ~ 16GHz ≥50dB @ 22.9 ~ 23GHz ≥55dB @ 23 ~ 23.35GHz ≥80dB @ 23.35 ~ 35GHz

Impedance (Ω)

50

Power Handling (W)

5.0W Max

Connection Type

SMA-Female
