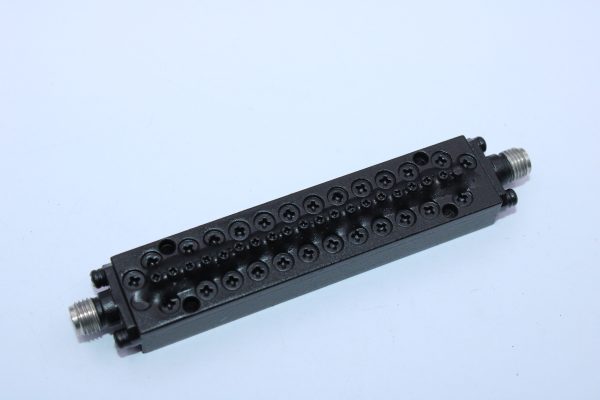

Band Pass Filter From 28~40GHz OBP-34000-12000 With 2.92mm(K)-Female Connectors

$398

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

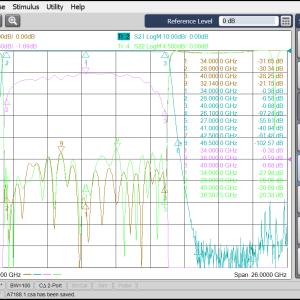

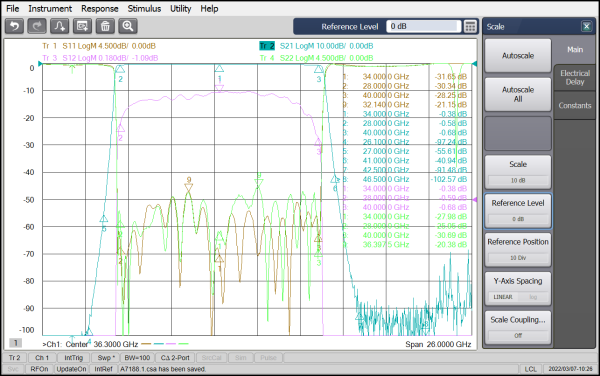

The product name of this Ocean band-pass filter (OBP) is OBP-34000-12000, it’s Center Frequency (FO) is 34GHz, it’s Pass Band Bandwidth is 28~40GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC-26.lGHz ≥50dB@26.1~27GHz≥32dB@41-42.5GHz≥80dB@42.5-46.5GHz>40dB@46.5-51GHz.

Availability: Available on backorder SKU: OBP-34000-12000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-34000-12000, it’s Center Frequency (FO) is 34GHz, it’s Pass Band Bandwidth is 28~40GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC-26.lGHz ≥50dB@26.1~27GHz≥32dB@41-42.5GHz≥80dB@42.5-46.5GHz>40dB@46.5-51GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Weight 0.5 kg

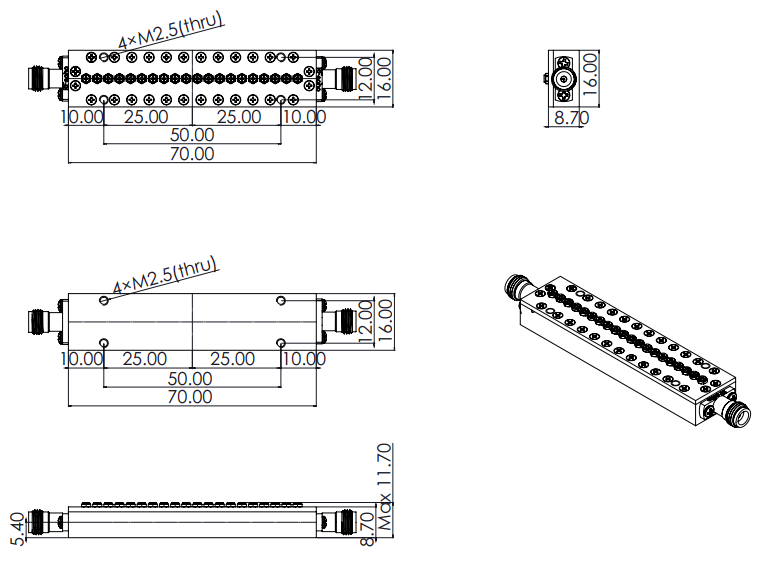

Dimensions 26 × 11.5 × 14.5 cm
Center Frequency (F0) (MHz)

34000

Min. Pass Band Frequency (MHz)

28000

Max. Pass Band Frequency (MHz)

40000

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

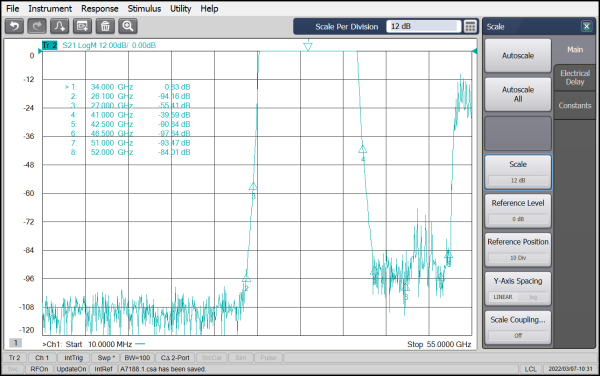

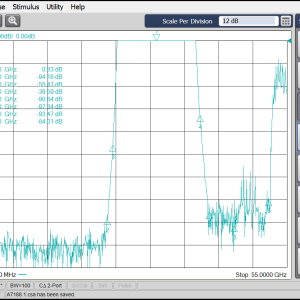

≥80dB@DC~26.1GHz≥50dB@26.1~27GHz≥32dB@41~42.5GHz≥80dB@42.5-46.5GHz≥40dB@46.5-51GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
