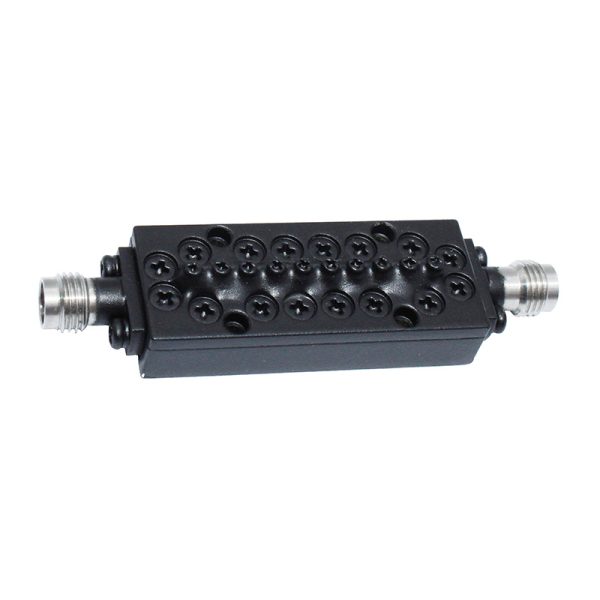

Band Pass Filter From 4.0GHz (39~43GHz) OBP-41000-4000 With 2.92mm-Female Connectors

Band Pass Filter From 4.0GHz (39~43GHz) OBP-41000-4000 With 2.92mm-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

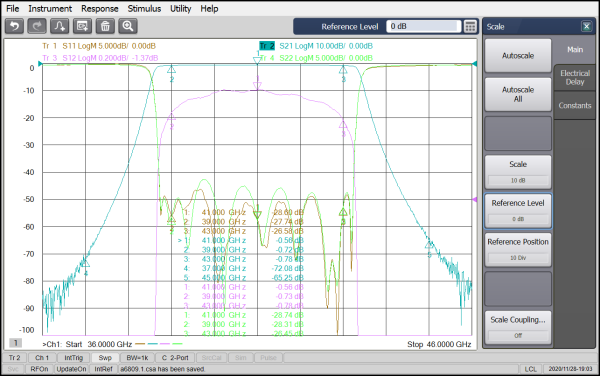

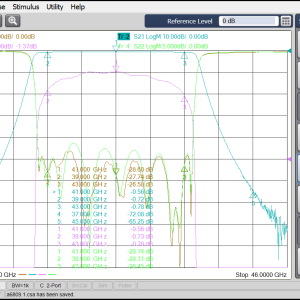

The product name of this Ocean band-pass filter (OBP) is OBP-41000-4000,it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 4.0GHz (39~43GHz),it’s Pass Band Insertion Loss is ≤1.0dB,Pass BandReturnLoss is ≥18dB,Pass BandVSWR is, and the Stop Bandfrequencyis ≥60dB @DC~37GHz≥55dB @45~60GHz.

Availability: Available on backorder SKU: OBP-41000-4000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-41000-4000,it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 4.0GHz (39~43GHz),it’s Pass Band Insertion Loss is ≤1.0dB,Pass BandReturnLoss is ≥18dB,Pass BandVSWR is, and the Stop Bandfrequencyis ≥60dB @DC~37GHz≥55dB @45~60GHz.

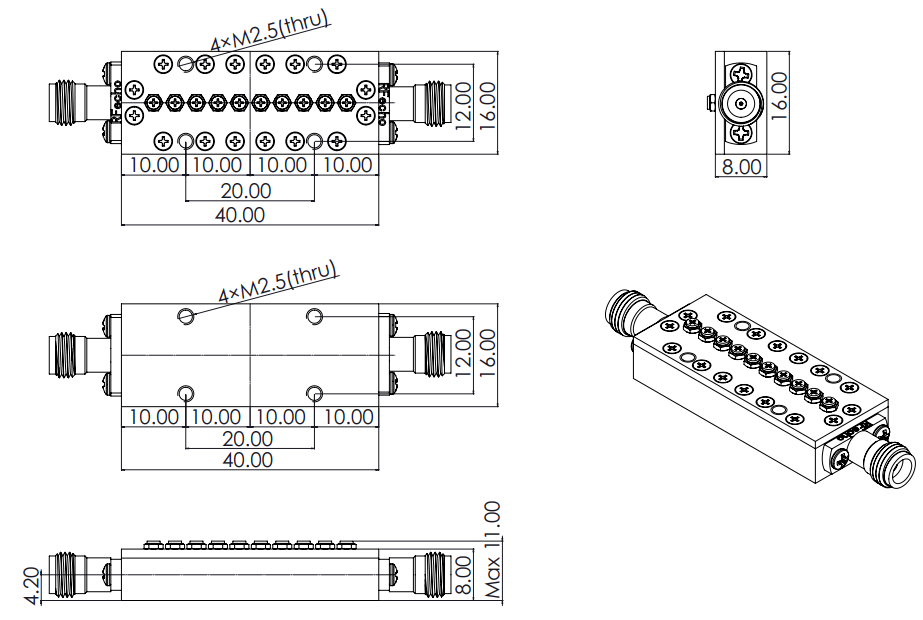

Outline



PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

41000

Min. Pass Band Frequency (MHz)

39000

Max. Pass Band Frequency (MHz)

43000

Pass Band Insertion Loss (dB)

≤1.0dB

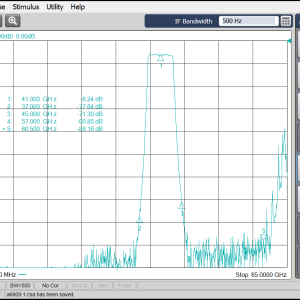

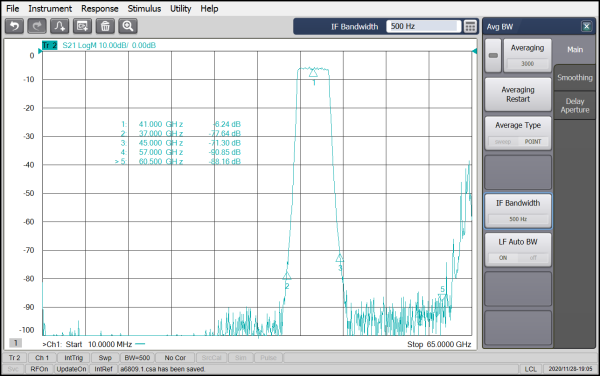

Stop Band Rejection

≥60dB @ DC ~ 37GHz≥55dB @ 45 ~ 60GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm-Female
