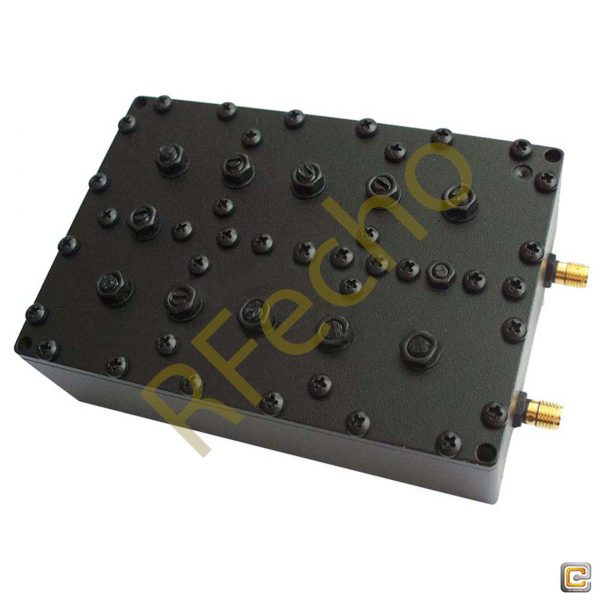

Cavity Band Pass Filter – OBP-1090-6

Cavity Band Pass Filter – OBP-1090-6

Cavity Band Pass Filter – OBP-1090-6, its Center Frequency(F0) is 1.09GHz, Pass Band Bandwidth is 1.084-1.096GHz, Pass Band Insertion Loss is 2.2dB, Pass Band VSWR is 1.3, Stop Band frequency is 1.080-1.1GHz &1.075-1.105GHz  and the Stop Band Rejection is 40dB.

SKU: OBP-1090-6 Categories: ,

Description

RFecho Cavity Band Pass Filter OBP-1090-6 is a filter that allows waves of the specific frequency band to pass through while rejecting other frequency bands. More Cavity Filters…



Cavity Band Pass Filter – OBP-1090-6 Electrical Specifications

Center Frequency (F0)
1.090GHz
Pass Band Frequency ±0.06GHz (1.084~1.09GMHz)
Pass Band Insertion Loss ≤2.2dB (Type≤2.0dB)
Pass Band VSWR ≤1.3:1
Stop Band Rejection ≥20dB@ F0±10MHz(1080MHz,1100MHz)

≥40dB@ F0±15MHz(1075MHz,1105MHz)

≥60dB@ F0±25MHz(1065MHz,1115MHz)

Impedance
Power Handling 50W
Connectors SMA-Female
Surface Finish Black Paint
Temperature Range
Net Weight 0.35 KG

Product Dimensions

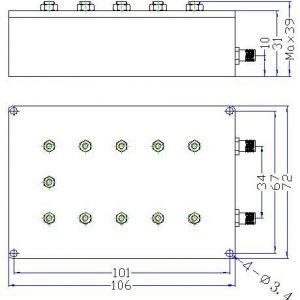

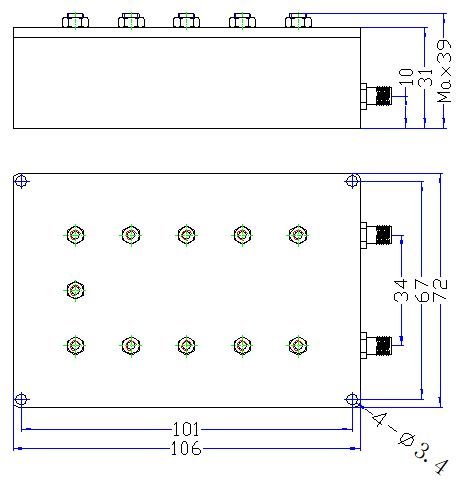

Cavity Band Pass Filter - OBP 1090-6 Dimensions

Test Data

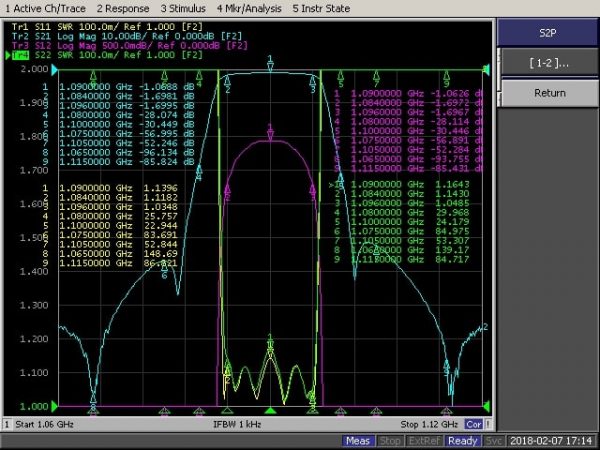

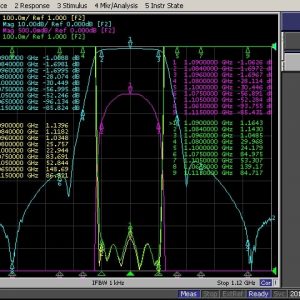

Cavity Band Pass Filter - OBP-1090-6 Test Data
