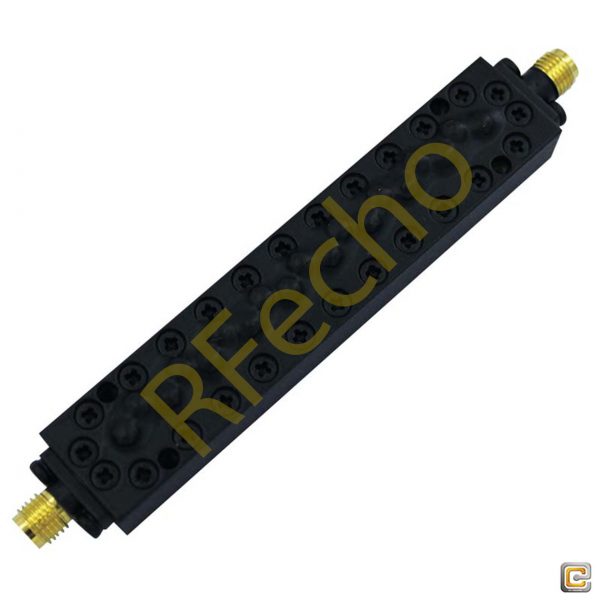

Cavity Band Pass OBP-13000-1000

Cavity Band Pass OBP-13000-1000

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-13000-1000,its Center Frequency(F0) is 13GHz, its Pass Band Bandwidth is 12.5~13.5GHz, its Pass Band
InsertionLoss is≤1.0dB, and its PassBand VSWR is≤1.3:1. Its Stop Band frequency is DC~12.0GHz、14.0~24GHz. The Stop Band Rejection is:≥40dB

SKU: OBP-13000-1000 Categories: , Tag:

Description

PDF

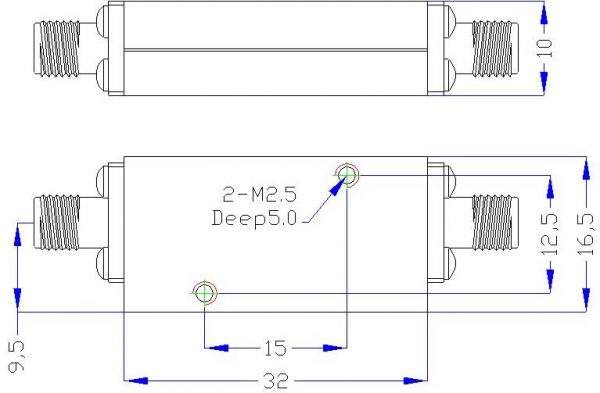

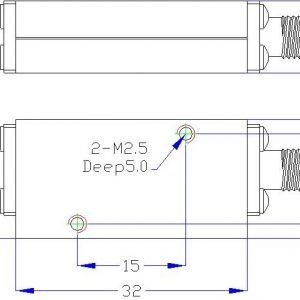

Outline

OBP 13000 1000 outline Cavity Band Pass OBP-13000-1000

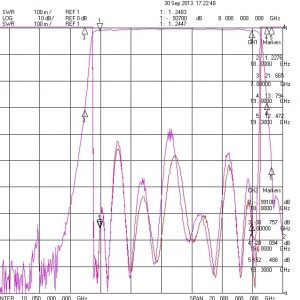

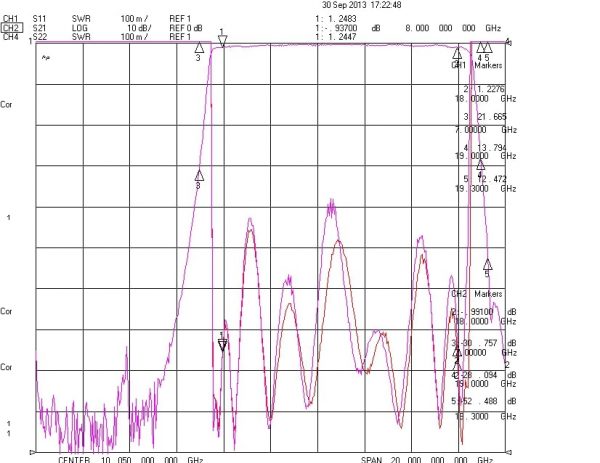

Plot

OBP 13000 1000 plot1 Cavity Band Pass OBP-13000-1000

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
