Cavity Band Pass OBP-2415-100

Cavity Band Pass OBP-2415-100

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-2415-100, its Center Frequency(F0) is 2415MHz, its Pass Band Bandwidth is 2365~2465MHz, its Pass Band Insertion Loss is ≤1.0dB. Its Stop Band frequency is 2655MHz. The Stop Band Rejection is: ≥60dB

SKU: OBP-2415-100 Categories: ,

Description

PDF

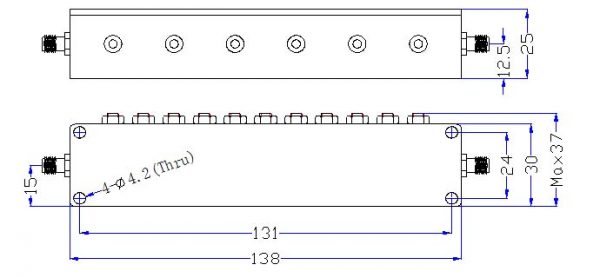

Outline

OBP 2415 100 outline Cavity Band Pass OBP-2415-100

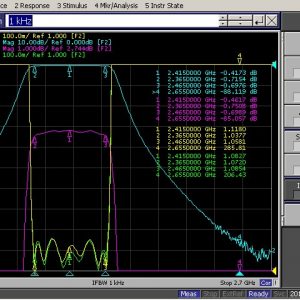

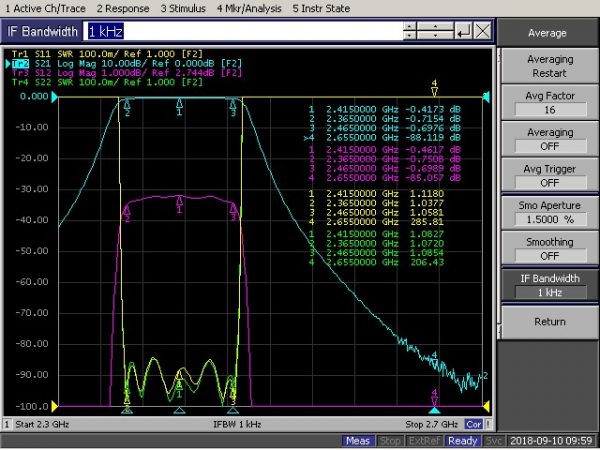

Plot

OBP 2415 100 plot1 Cavity Band Pass OBP-2415-100

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
