Cavity Band Pass OBP-3500-200

Cavity Band Pass OBP-3500-200

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

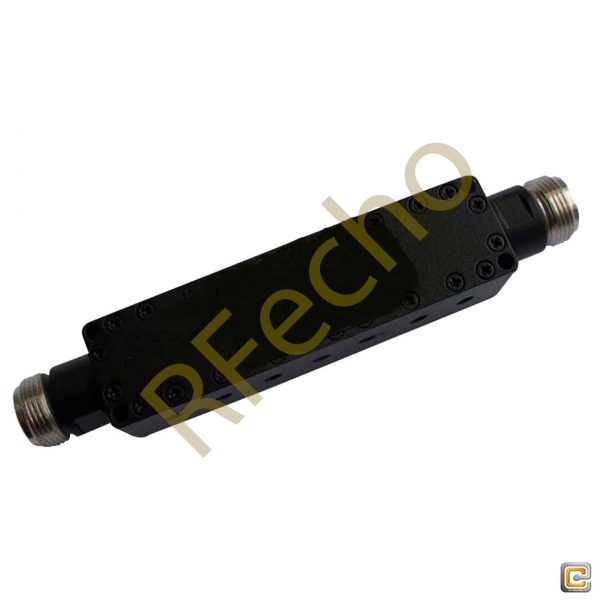

The product name of this Ocean band-pass filter (OBP) is OBP-3500-200, its Center Frequency(F0) is 3500MHz, its Pass Band Bandwidth is 3400~3600MHz, its Pass Band Insertion Loss is ≤1.5dB, and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is DC~3200MHz & 3800~6000MHz. The Stop Band Rejection is:≥50dB

SKU: OBP-3500-200 Categories: ,

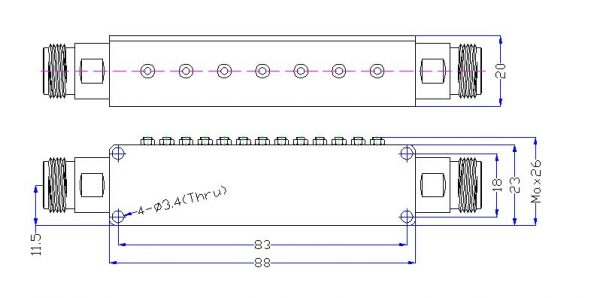

OBP 3500 200 outline Cavity Band Pass OBP-3500-200

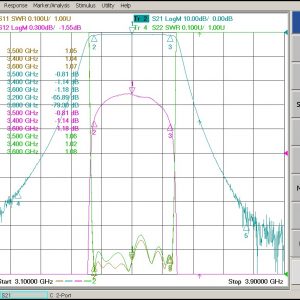

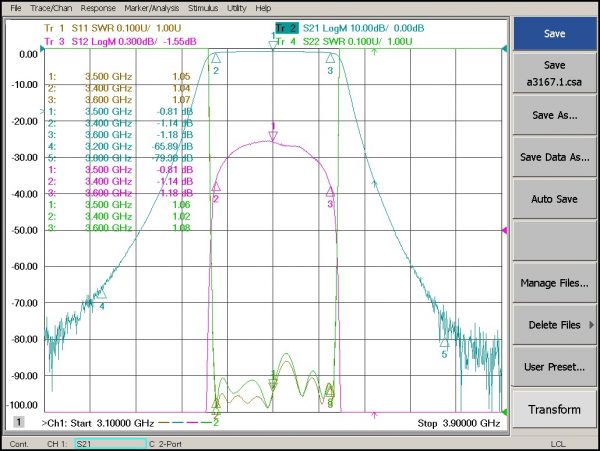

OBP 3500 200 plot1 Cavity Band Pass OBP-3500-200

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
