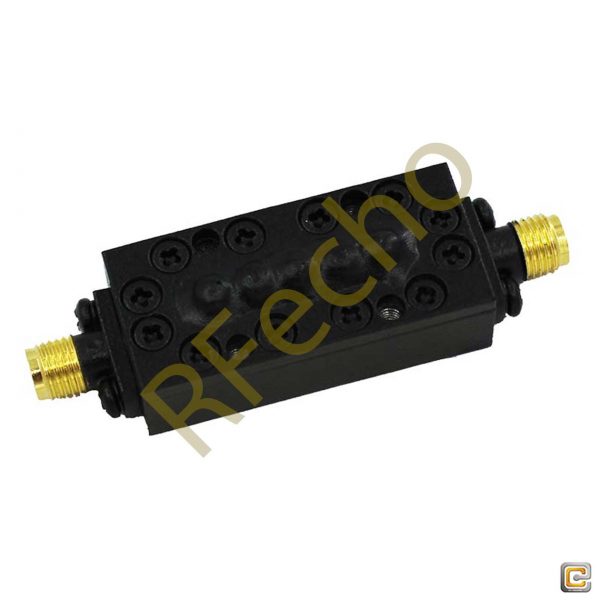

Cavity Band Pass OBP-7247-3

Cavity Band Pass OBP-7247-3

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting
other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-7247-3, its Center Frequency(F0) is 7.2475GHz, its Pass Band Bandwidth is 7.246-7.249GHz, its Pass Band Insertion Loss is 1dB, and its Pass Band VSWR is1.3. Its Stop Band frequency is 8.025-8.055GHz. The Stop Band Rejection is 35dB.

SKU: OBP-7247-3 Categories: ,

Description

PDF

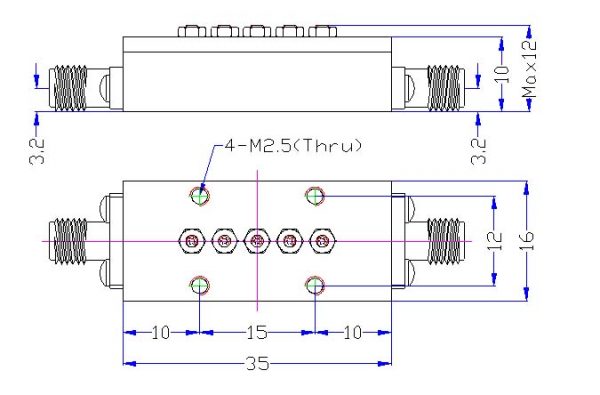

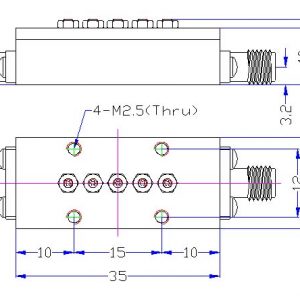

Outline

OBP 7247 3 outline Cavity Band Pass OBP-7247-3

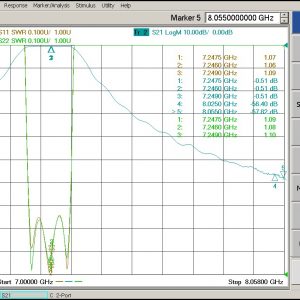

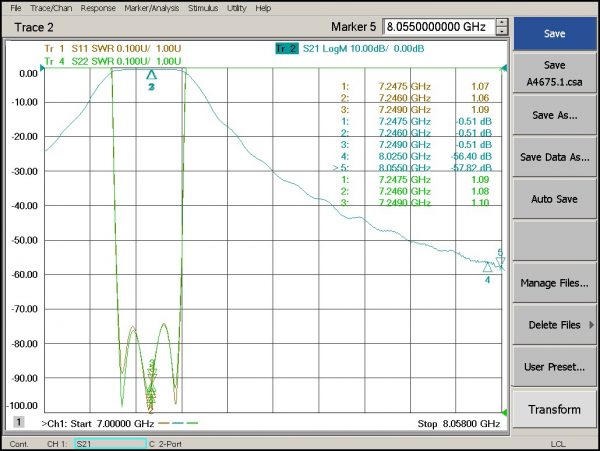

Plot

OBP 7247 3 plot1 Cavity Band Pass OBP-7247-3

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
