Cavity Band Rejection Filter OBR-4900-200

Cavity Band Rejection Filter OBR-4900-200

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Band stop Filters (OBR) is OBR-4900-200 , its Stop Band Frequency is 4.8~5.0GHz,Stop Band attenuation is 40dB , its Pass Band Frequency is DC~4.73GHz&5.07~10GHz ,and its Pass Band Insertion Loss is 2.5dB . Its Pass Band VSWR is 1.8:1.

SKU: OBR-4900-200 Categories: ,

Description

PDF

Outline

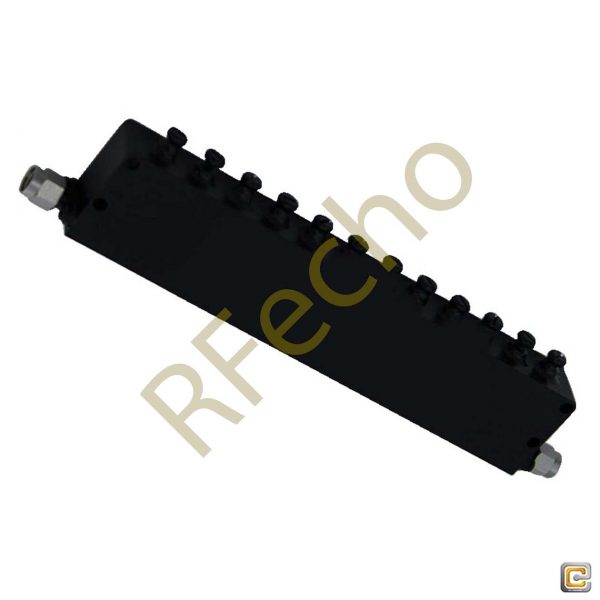

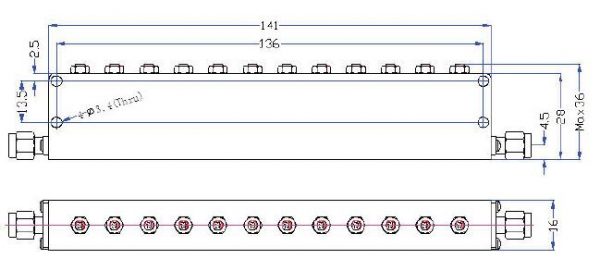

OBR 4900 200 outline Cavity Band Rejection Filter OBR-4900-200

Plot

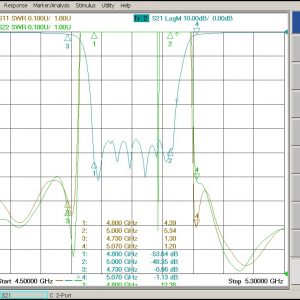

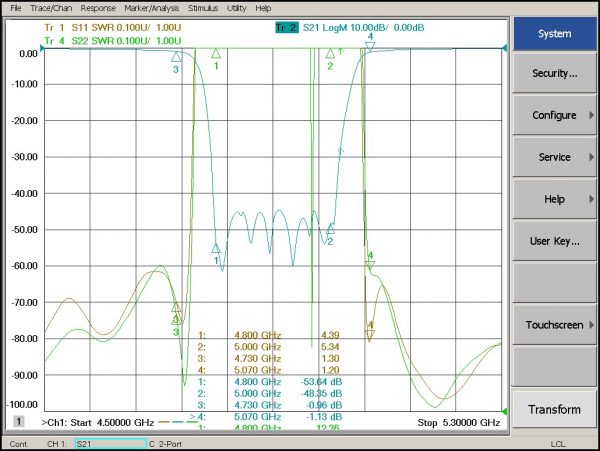

OBR 4900 200 plot1 Cavity Band Rejection Filter OBR-4900-200
