Cavity Band Rejection Filter OBR-881.5-25

Cavity Band Rejection Filter OBR-881.5-25

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-881.5-25,its Stop Band Frequency is 869~894MHz,Stop Band attenuation is 40dB,its Pass Band Frequency is DC~849MHz & 914~2600MHz, and its Pass Band Insertion Loss is 2.0dB.

SKU: OBR-881.5-25 Categories: ,

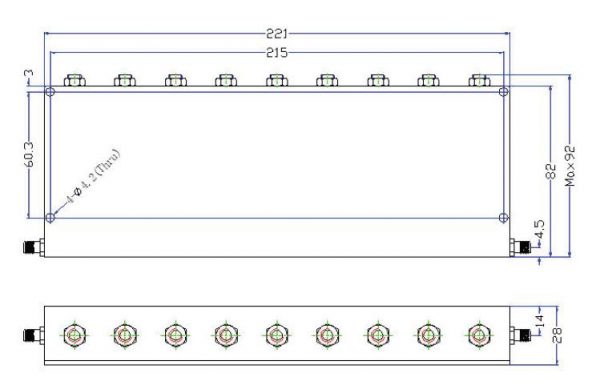

OBR 881.5 25 outline Cavity Band Rejection Filter OBR-881.5-25

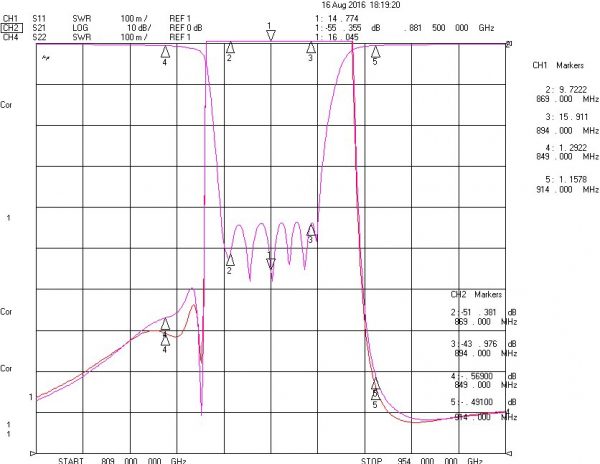

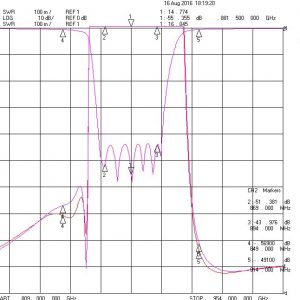

OBR 881.5 25 plot1 Cavity Band Rejection Filter OBR-881.5-25

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
