Dynamic Area UAV Decoy and Defense System
Achieves comprehensive all-around protection for dynamic operation zones
Supports joint networking with mobile and fixed base stations for integrated defense
Compatible with mobile power supplies for extended continuous operation
- Description
- Datasheet
- Reviews (0)
Description

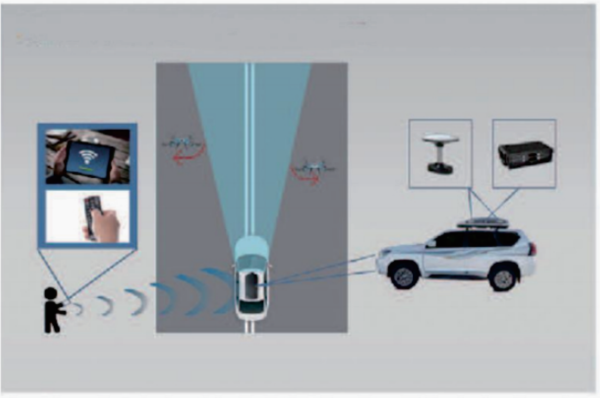

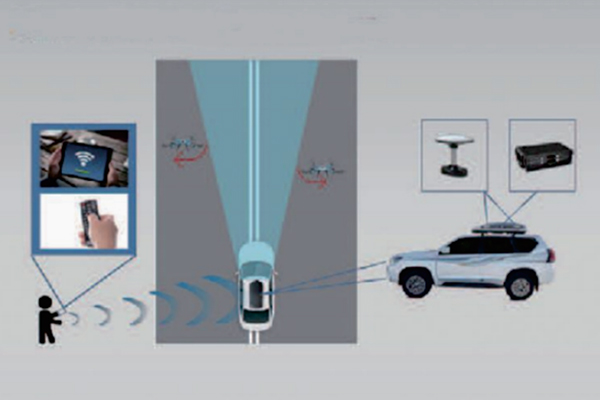

The Dynamic Area UAV Decoy and Defense System is a specialized security solution designed for installation on vehicles and vessels. It establishes dynamic UAV no-fly zones to provide continuous protection along specific travel routes. This system is primarily utilized for routine patrols of critical infrastructure and roadways, as well as safeguarding convoys for VIPs and high-value resource transport. It features all-around protection in dynamic environments and can be integrated into networks with mobile and fixed base stations. Optimized for durability, it supports extended operations via mobile power supplies. Key technical performance includes an effective range exceeding 500 meters, low radiation power below 10mW, and a wide operating temperature range from -40°C up to +60°C, ensuring reliability in diverse field conditions.
OC-DRDS-20 |
|
|
Dynamic Area UAV Decoy and Defense System |
|
Property |
Value |
|
Main Unit Weight |
≤ 30kg |
|
Main Unit Dimensions |
9-inch, 4U |
|
Power Supply |
110V-220V or standard vehicle power, battery compatible |
|
Startup Time |
≤ 10min |
|
Standard Operating Temperature |
-10°C to +50°C |
|
Effective Distance |
≥ 500m (unobstructed) |
|
Operating Frequency Band |
Civil UAV navigation frequency band |
|
Power Consumption |
≤ 75W |
|
Radiation Power |
≤ 10mW |
|
Device Power Consumption |
≤ 75W |
|
Wide Temperature Operating Range |
-40°C to +60°C |
|
Wide Range Operating Temperature |
-40°C to +60°C |
|
Application – Key Areas |
Temporary prevention and control |
|
Application – Convoys |
Protection for key personnel travel |
|
Application – Resource Transport |
Escort and transit protection |
|
Application – Facilities |
Routine regional patrols for large infrastructure |
Features |
|
|
Achieves comprehensive all-around protection for dynamic operation zones |
|
|
Supports joint networking with mobile and fixed base stations for integrated defense |
|
|
Compatible with mobile power supplies for extended continuous operation |
|
Applications |
|
|
designed for installation on vehicles and vessels. |
|
