Model OIS-340360-03-20-28 is a Ka band waveguide junction isolatorthat covers the frequency range of 34 to 36GHz.
Compared with a Faradayisolator, the waveguide junction isolator offers a lower insertion loss of 0.3dB typical and a much shorter insertion length for system integration. As a trade off, the waveguide junction isolator only offers a typical isolation of 20dB.

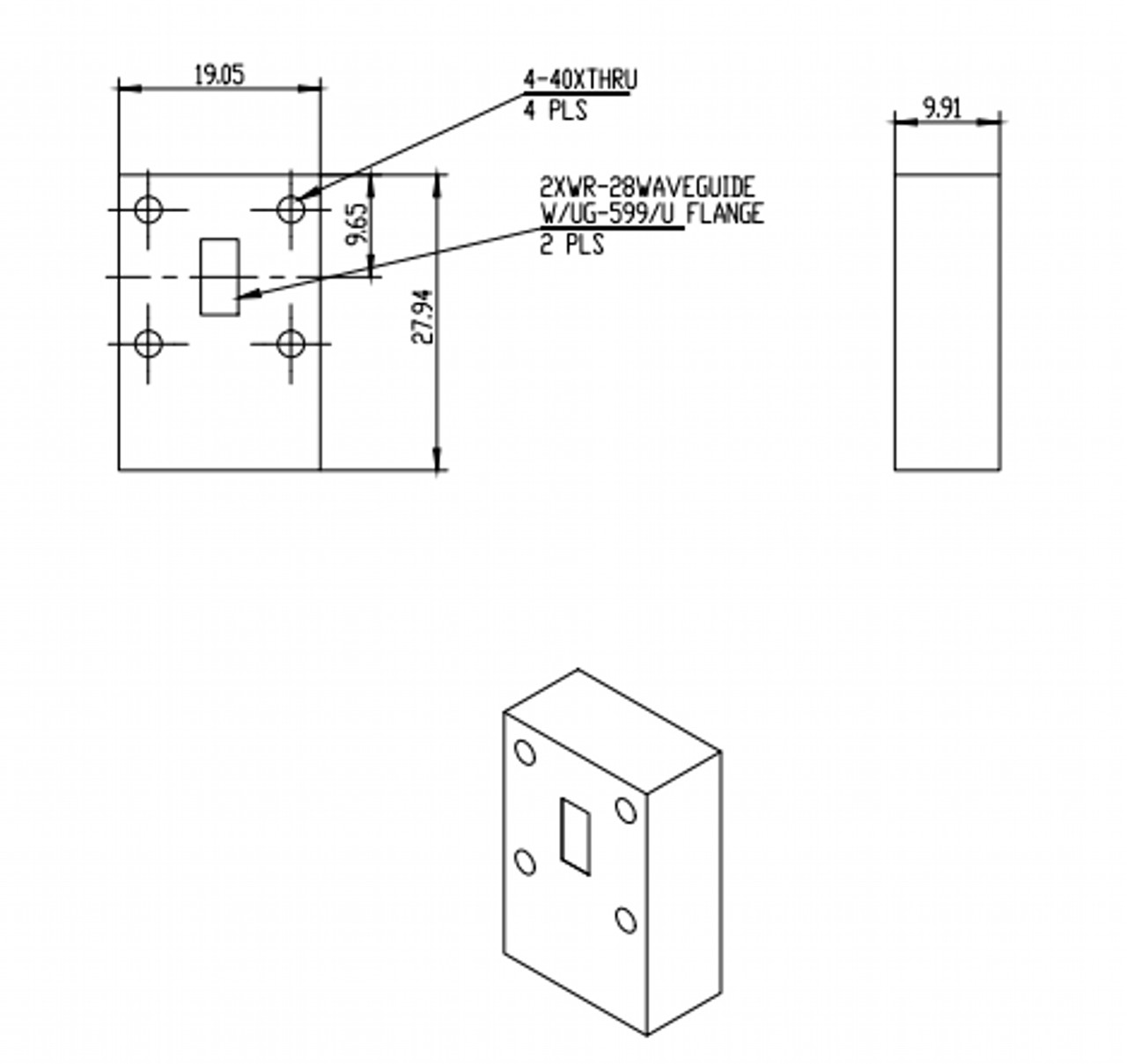

The input and output ports are WR-28 waveguides with UG-599/Uflanges.

SKU: OIS-340360-03-20-28 Categories: Ferrite Devices, Routing
Add to Wishlist

Description

Ferrite Devices



Model OIS-340360-03-20-28 is a Ka band waveguide junction isolator that covers the frequency range of 34 to 36GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.3dB typical and a much shorter insertion length for system integration.



As a trade off, the waveguide junction isolator only offers a typical isolation

of 20dB.The input and output ports are WR-28 waveguides with UG-599/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-340360-03-20-28

RF Frequency Range(GHz)

34-36

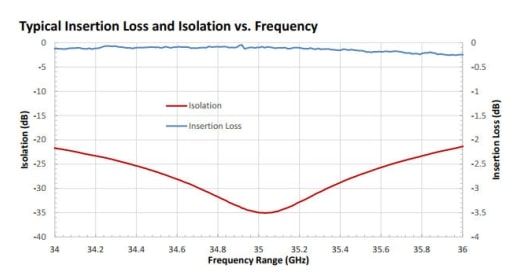

Insertion Loss(dB)

    0.3

Isolation(dB)

    20

VSWR

    1.4:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

2(CW)

0.5(CW)

+25 °C

-40°C~+85 °C
