OC-100GI Integrated Inertial Navigation System
High-Precision Positioning and Velocity Measurement Capabilities
Integrated RS422/232, CAN, and USB communication interfaces
Built-in 4GB storage
Wide operating temperature range (-40°C to +60°C)
Compact design, lightweight (= 30000h
- Description
- Datasheet
- Reviews (0)
Description
The OC-100GI Integrated Inertial/GNSS Navigation System consists of accelerometers, gyroscopes, GNSS, and DA. By utilizing inertial navigation processing and integrated inertial/GNSS navigation algorithms, the system delivers precise measurements of attitude, heading, and position to meet the requirements of UAVs and other application fields.
OC-100GI |
|
|

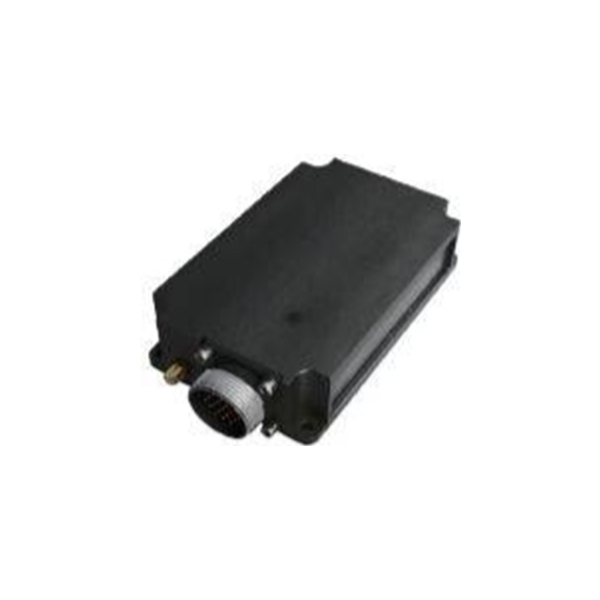

OC-100GI Integrated Inertial Navigation System |
|
Property |
Value |
|
Positioning Accuracy (GNSS Valid, Single Point L1/L2) |
1.2m (RMS) |
|
Positioning Accuracy (Inertial / Odometer Fusion) |
2‰ D (D = distance, CEP) |
|
Positioning Accuracy (Inertial / DVL Integration) |
2‰ D (D represents distance, CEP) |
|
Velocity Accuracy (GNSS Valid, Single Point L1/L2) |
0.1m/s (RMS) |
|
Velocity Accuracy (Inertial / Odometer Fusion) |
0.1m/s (RMS) |
|
Velocity Accuracy (Inertial / DVL Integration) |
0.2m/s (RMS) |
|
Gyroscope Measurement Rang |
+/-450 °/s |
|
Gyroscope Bias Instability |
<= 5 °/h |
|
Accelerometer Measurement Rang |
+/- 30g |
|
Accelerometer Bias Stability |
<= 150 μg |
|
Communication Interface RS422/232 |
7 channels, maximum baud rate 921.6kbps (default 921.6kbps), maximum transmission frequency 200Hz (default 100Hz) |
|
Communication Interface: CAN |
1-channel, max. baud rate 1 Mbps, transmission frequency 100 Hz |
|
Communication Interface: USB |
1x USB 1.1, 10M |
|
Electrical Characteristics Voltag |
18~36V DC |
|
Electrical Characteristics Power Consumption |
<= 8W |
|
Electrical Characteristics |
4G |
|
Reliability MTBF |
30000h |
|
Reliability & Lifetim |
>15 years |
|
Reliability Continuous Operating Tim |
>24h |
|
Dimensions |
117 × 96 × 47.8(mm) |
|
Weight |
<= 0.7Kg |
|
Operating Temperatur |
-40 degC ~ +60 degC |
|
Storage Temperatur |
-45 degC ~ +65 degC |
|
Vibration |
5 ~ 2000Hz, 2g |
|
Shock |
30g, 11ms |
|
Voltag |
18~36V DC |
Features |
|
|
High-Precision Positioning and Velocity Measurement Capabilities |
|
|
Integrated RS422/232, CAN, and USB communication interfaces |
|
|
Built-in 4GB storage |
|
|
Wide operating temperature range (-40°C to +60°C) |
|
|
Compact design, lightweight (= 30000h |
|
Applications |
|
|
UAVs and other application fields. |
|
