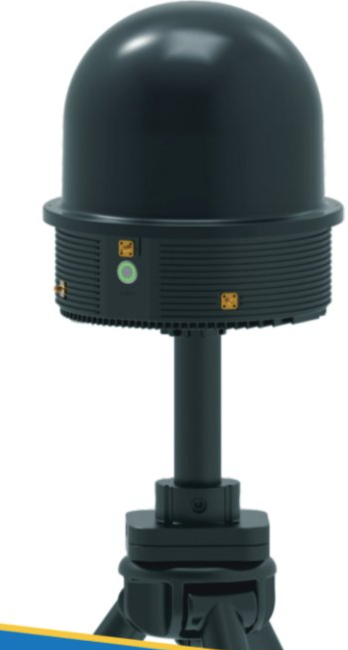

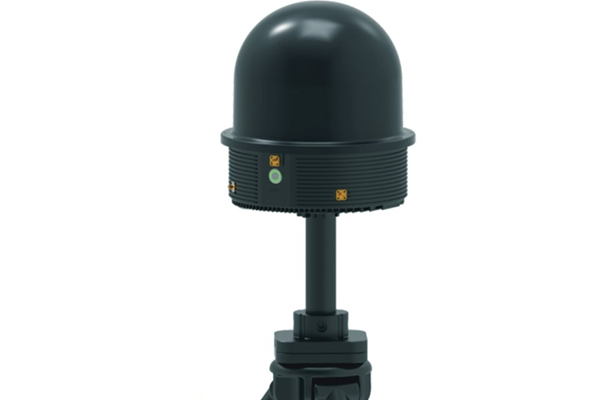

OC-1310 Integrated Passive Detection and Monitoring System
Passive detection with zero electromagnetic interference
Ultra-long-range detection up to 10km
Integrated detection and automatic defense capabilities
Supports dynamic networking and multi-terminal operation
Precise identification with blacklist and whitelist support
Simultaneous tracking of more than 50 drone targets
High direction-finding accuracy (≤9°)
- Description
- Datasheet
- Reviews (0)
Description
The OC-1310 is an integrated passive detection system designed for ultra-long-distance drone monitoring and identification. Utilizing advanced passive detection technology, it operates without emitting interference signals, making it ideal for sensitive environments such as oil and gas fields, where it meets strict GA1551.1-2019 safety standards. The system features blacklist/whitelist functionality for precision identification and can be seamlessly integrated with GPS spoofing, jamming, and radar equipment. Capable of detecting over 50 targets simultaneously within a range of up to 10km, it supports dynamic networking and unmanned operation. It is highly effective for protecting critical infrastructure like airports, prisons, and power plants from unauthorized drone intrusions.
OC-1310 |
|
|
OC-1310 Integrated Passive Detection and Monitoring System |
|
Property |
Value |
|
Operating Frequency Bands |
Main 2.4GHz and 5.8GHz; Optional 800MHz, 900MHz, 1.5GHz |
|
Model Coverage |
DJI full series, various aviation models, racing drones, hundreds of types |
|
Detection Distance |
5km (up to 10km) |
|
Direction Finding Accuracy |
≤9° |
|
Networking |
Dynamic networking, platform-based, peripheral equipment empowerment |
|
Simultaneous Detection Targets |
50+ units |
|
OC-1310 |
Applicable Scenarios / Airports, nuclear power plants, prisons, stadiums, etc. |
|
Oil and Gas Fields |
High safety risk areas with zero-interference requirements |
|
Critical Infrastructure |
Airports, nuclear plants, and prisons |
|
Public Venues |
Stadiums and large event spaces |
|
Safety Compliance |
GA1551.1-2019 Part 1: Oil and Gas Fields |
|
Black/White List |
Supported |
|
Detection Mode |
Passive Integrated Detection |
|
Applicable Scenarios |
Airports, nuclear power plants, prisons, stadiums, oil/gas storage, purification plants |
Features |
|
|
Passive detection with zero electromagnetic interference |
|
|
Ultra-long-range detection up to 10km |
|
|
Comprehensive coverage of DJI and hundreds of other drone models |
|
|
Integrated detection and automatic defense capabilities |
|
|
Supports dynamic networking and multi-terminal operation |
|
|
Precise identification with blacklist and whitelist support |
|
|
Simultaneous tracking of more than 50 drone targets |
|
|
High direction-finding accuracy (≤9°) |
|
Applications |
|
|
It is highly effective for protecting critical infrastructure like airports, prisons, and power plants from unauthorized drone intrusions. |
|
